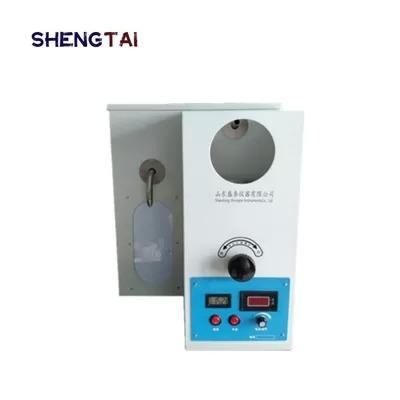

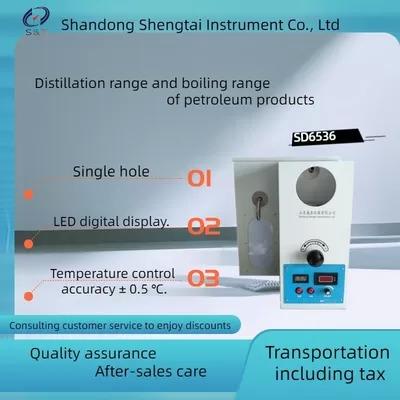

Single Hole Distillation Tester Oil Distillation Apparatus Petroleum SD6536
Single Hole Distillation Tester Oil Distillation Apparatus Petroleum SD6536
Single Hole Distillation Tester Oil Distillation Apparatus Petroleum SD6536
Single Hole Distillation Tester Oil Distillation Apparatus Petroleum SD6536
Specifications
Brand Name :
Shengtai Instrument
Model Number :
SD6536
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
100000sets/year
Delivery Time :
7-15work-days
Packaging Details :
wooden case
Power supply :
AC(220±10%)V , 50Hz.
Heating power of electric furnace :
1000W
Measuring cylinder volume :
100 mL, indexing 1 mL.
Electric furnace movable plate :
made of silicon carbide plate with hole diameter of φ 38㎜、 φ 50㎜
Thermometer :
full immersion stick, scale range (-2 ~ +300) ℃ and (-2 ~ +400) ℃, The graduation is 1 ℃ (thermometer can be selected according to demand).
temperature control range :
room temperature ~ 400℃ arbitrary setting.
 Temperature control accuracy :
±0.5℃
 Number of test holes :
single hole
Temperature display mode :
LED digital display.
The distillation flask :
125mL, in line with the requirements of GB/T6536
Overall dimension :
400mm × 430㎜ × 500 mm (long × wide × High)
Instrument weight :
20kg
Description

Distillation Apparatus-Distillation Tester-Oil Distillation Apparatus-Petroleum SD6536

Single Hole Distillation Tester Oil Distillation Apparatus Petroleum SD6536

SD6536 Petroleum product distillation apparatus is based on the standard of the People's Republic of China GB/T6536 GB/T7534 the distillation of petroleum products determination act - 2004 "industrial use volatile organic liquid boiling range measurement, the requirements of the design and manufacture, suitable for according to the standard of GB/T6536 gasoline, aviation gasoline, steam jet fuel, special boiling point solvents, naphtha, diesel oil, distillate fuel oil products and similar determination of distillation, and in accordance with the standards of GB/T7534 for volatile organic liquid used in industry, raw material in organic solvent such as the determination of boiling range of the instrument.

Petroleum product distillate boiling range tester

Distillation Tester for Petroleum products

Distillation Apparatus for Petroleum Products

Distillation Analyzer for Petroleum Oils ASTMD 86

Automatical ASTM D Standard Petroleum Distillation Range Testing Apparatus

Distillation Apparatus-Distillation Tester

Oil Distillation Apparatus-Petroleum Distillation Apparatus

Main technical parameters

1 Power supply AC(220±10%)V , 50Hz.
2 Heating power of electric furnace 1000W
3 Measuring cylinder volume 100 mL, indexing 1 mL.
4 Electric furnace movable plate made of silicon carbide plate with hole diameter of φ 38㎜, φ 50㎜.
5 Thermometer

full immersion stick, scale range (-2 ~ +300) ℃ and (-2 ~ +400) ℃, The graduation is 1 ℃ (thermometer can be selected according to demand).
6 temperature control range room temperature ~ 400℃ arbitrary setting.
7 Temperature control accuracy ±0.5℃
8 Number of test holes: single hole
9 Temperature display mode

LED digital display.
10 The distillation flask 125mL, in line with the requirements of GB/T6536.
11

Overall dimension: 400mm × 430㎜ × 500 mm (long × wide × High)

Instrument weight: 20kg

Packing list

S/N Name Unit Quantity
1 Host set 1
2 Distillation flask(125 ml) piece 1
3 　thermometer piece 1
4 Glass tank(Ф100×240) piece 1
5 Silicone plug(3#,4#) piece One for each
6 Silicon carbide plateφ38,φ50 piece One for each
7 Graduated cylinder(100ml) piece 1
8 Thermometer retainer(1#) piece 2
9 Observation glass piece 1
10 Baffle cover piece 1
11 power cord piece 1
12 instruction manual copy 1
13 Certificate warranty card copy 1
