SH0702 Residual fuel oil total sediment analyzer (aging method, thermal filtration method)
SH0702 Residual fuel oil total sediment analyzer (aging method, thermal filtration method)
SH0702 Residual fuel oil total sediment analyzer (aging method, thermal filtration method)
SH0702 Residual fuel oil total sediment analyzer (aging method, thermal filtration method)
SH0702 Residual fuel oil total sediment analyzer (aging method, thermal filtration method)
SH0702 Residual fuel oil total sediment analyzer (aging method, thermal filtration method)
Specifications
Brand Name :
Shengtai Instrument
Model Number :
SH0702
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
100000sets/year
Delivery Time :
7-15work-days
Packaging Details :
wooden case
Test sample :
25g
Waste flask capacity :
500ml
Test range :
0.5% (m/m)
Test position :
2 units
Filter paper :
aperture 0.0016mm, diameter 47mm
Vacuum pressure :
40kPa
Applicable standards :
SH/T0701 SH/T0702 ASTM D4870
Working power supply :
AC220V 50HZ
Overall power :
1000W
Instrument size :
570 * 600 * 650mm
Net weight :
36KG
Description

SH0702 Residual fuel oil total sediment analyzer (aging method, thermal filtration method)

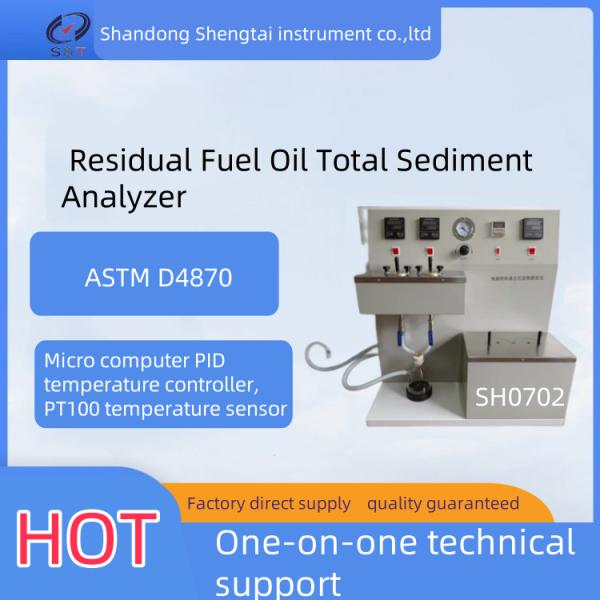

SH0702 Residual Fuel Oil Total Sediment Analyzer is designed and manufactured in accordance with the standards of SH/T0701 and SH/T0702 Residual Fuel Oil Total Sediment Determination Method (Aging Method, Heat Filtration Method), as well as ASTM D4870. This method is suitable for determining the total sediment in residual fuel oil with a viscosity of less than 55mm2/s at 100 ℃ and distillate fuel oil containing residual components.

This instrument is suitable for the total sediment in residual fuel oil and distillate fuel oil containing residual components

Product features

● Equipped with a dedicated aging bath;

● Standard filtering elements with heating and cooling coils;

● Glass fiber filter paper with a pore size of 0.0016mm and a diameter of 47mm;

● Stainless steel ball valve switches between heat and cold sources;

● Digital display time relay controls working time;

● Micro computer PID temperature controller, PT100 temperature sensor, high temperature control accuracy;

Technical parameter

●Test sample: 25g

●Waste flask capacity: 500ml

● Test range: 0.5% (m/m)

● Test position: 2 units

●Filter paper: aperture 0.0016mm, diameter 47mm

●Vacuum pressure: 40kPa

●Applicable standards: SH/T0701 SH/T0702 ASTM D4870

●Working power supply: AC220V 50HZ

● Overall power: 1000W

●Instrument size: 570 * 600 * 650mm

●Net weight: 36KG

Packing list

S/N Name Quantity Unit Remarks
1 Host 1 set
2 Power cord 1 piece
3 suction flask 1 Piece
4 Filter pump 1 Piece
5 Air filter 1 piece
6 Air pump 1 piece
7 filter membrane 1 Piece
8 specification 1 copy

Accessories that need to be prepared by oneself:

1. Electronic balance (1/10000)

2. Drying oven

3. Glass drying vessels (with silicone desiccant)

4. Graduated washing bottle or syringe 25ml

5. Mixing rod glass and glass beaker 30ml

6. High speed mixer 400r/min

7. Weighing bottle or dish

8. Glass fiber filter paper
