LCD Display Automatic Oil Solidification point pour point Testing Equipment with Modern Technology and Fast Test Speed
LCD Display Automatic Oil Solidification point pour point Testing Equipment with Modern Technology and Fast Test Speed
LCD Display Automatic Oil Solidification point pour point Testing Equipment with Modern Technology and Fast Test Speed
LCD Display Automatic Oil Solidification point pour point Testing Equipment with Modern Technology and Fast Test Speed
LCD Display Automatic Oil Solidification point pour point Testing Equipment with Modern Technology and Fast Test Speed
LCD Display Automatic Oil Solidification point pour point Testing Equipment with Modern Technology and Fast Test Speed
LCD Display Automatic Oil Solidification point pour point Testing Equipment with Modern Technology and Fast Test Speed
LCD Display Automatic Oil Solidification point pour point Testing Equipment with Modern Technology and Fast Test Speed
Specifications
Brand Name :
Shengtai Instrument
Model Number :
SH113
Place of Origin :
China
MOQ :
1 carton
Payment Terms :
T/T
Supply Ability :
10 cartons per week
Delivery Time :
5-8 days
Packaging Details :
external size: 360×280×386 (mm) weight: 45kg
measuring range :
10℃ ~ -70℃
measurement repeatability :
freezing point 2℃, pour point 3℃
refrigeration speed :
10min >; 40 ℃
flow :
1.6 liters/min,
Description

LCD Display Automatic Oil Solidification point pour point Testing Equipment with Modern Technology and Fast Test Speed

LCD Display Automatic Oil Solidification point pour point Testing Equipment with Modern Technology and Fast Test SpeedLCD Display Automatic Oil Solidification point pour point Testing Equipment with Modern Technology and Fast Test Speed

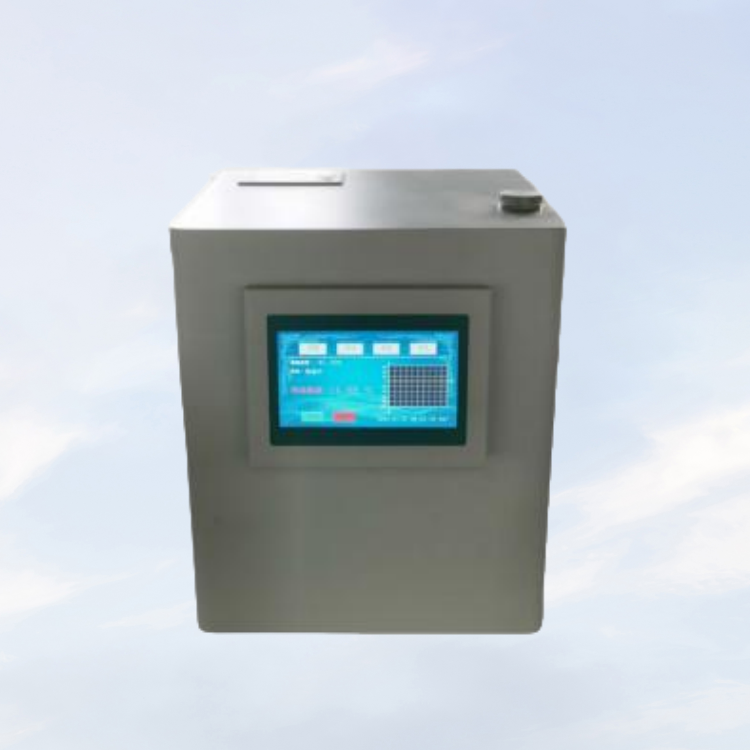

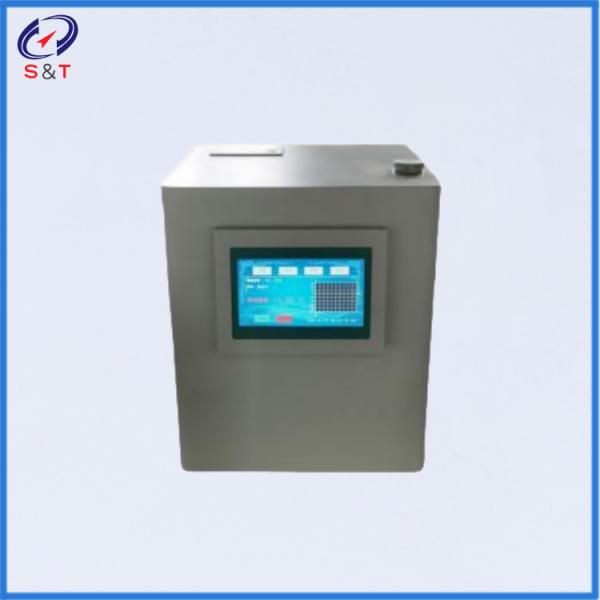

SH113 automatic transformer oil pour point meter automatic condensation point/pour point meter is controlled by modern high microelectronics technology, combined with semiconductor refrigeration technology, the MCS - 51 series microcontroller as the control core system, color LCD display, man-machine dialogue in Chinese, the wizard type operation, the determination of all process automation (automatic refrigeration temperature control, automatic detection), and realize the automation of the samples.

It is characterized by fast test speed, accurate results, good repeatability, stable and reliable, easy to operate, and combined with modern new technology developed.

It is suitable for lubricating oil factory, electric power, railway, pharmaceutical factory, shipping, oil companies and oil commercial departments to determine the freezing point/pour point of light oil. The measurement results meet the requirements of the national standard GB510-2018 "Determination of the freezing point of petroleum products" in the automatic micro method GB3535-83 "Determination of the pour point of petroleum".

Technical indicators

measuring range 10℃ ~ -70℃
measurement repeatability freezing point 2℃, pour point 3℃
refrigeration speed

10min >;

40 ℃
refrigeration limit depth

temperature difference > 70℃ (water temperature and instrument temperature difference)
cooling water pressure 0.5kg/cm2
flow 1.6 liters/min,
external size 360×280×386 (mm)
weight 45kg
