Uniform Temperature Control ASTM D1298 Density Tester for Crude and Liquid Petroleum Products
Uniform Temperature Control ASTM D1298 Density Tester for Crude and Liquid Petroleum Products
Specifications
Brand Name :
Shengtai Instrument
Model Number :
SH102
Certification :
ISO3675, ASTM D1298,DIN 51757,JIS K2249,IP 160
Place of Origin :
China
MOQ :
1 carton
Payment Terms :
T/T
Supply Ability :
10 cartons
Delivery Time :
5-8 days
Packaging Details :
Cooler size: 330*330*350mm, weight:10kg Overall dimension: 320 * 380 * 530mm, weight:12kg
Power supply :
AC(220±10%)V,50Hz
Tube cylinder   :
500ml
Measuring hole number :
2 holes
the bath volume :
Ф 250 x 300 mm
Description

Uniform Temperature Control ASTM D1298 Density Tester for Crude and Liquid Petroleum Products

Uniform Temperature Control ASTM D1298 Density Tester for Crude and Liquid Petroleum Products

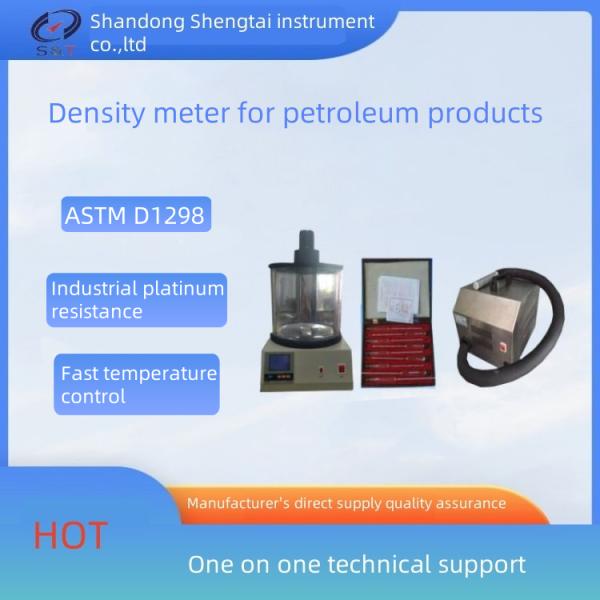

Density tester for petroleum product is based on the People's Republic of China standard GB/T 1884 "petroleum and liquid petroleum product density determination method (densimeter method)" the requirements of the design and manufacture, is the liquid petroleum product density tester developed by our company, suitable for the determination of crude oil and liquid petroleum product density.

GB/T1884 ,ISO3675, ASTM　D1298,DIN　51757,JIS　K2249,IP　160

ASTM D1298 Density, Relative Density and API Hydrometer Equipment

Petroleum Products Density Tester ASTM D1298 density tester

Crude Oil Hydrometer by ASTM D1298

ASTM D1298 Density Tester of Crude and Liquid Petroleum Products

I. Main technical features

1. The instrument adopts the form of all-in-one machine, the control box adopts the humanized design, the control switch adopts the form of light touch key, the design is novel, the structure is compact, the operation is comfortable, beautiful and generous.

2, Digital tube display temperature controller, rapid temperature control, fast response, small overshoot, temperature control accuracy up to ±0.2℃.

3, the use of hard glass tank and electric mixing device, the sample observation is clear, the temperature in the bathtub is uniform.

II. Main technical parameters and indicators

Power supply AC(220±10%)V,50Hz
Tube cylinder 500ml
Heating power 700W
Temperature controller

(1) Range: Ambient to 100℃

(2) Accuracy: ±0.1℃
(3) Sensor: Pt100
Thermometer Mercury-in-glass thermometer. Scale division is 0.2℃
Measuring hole number: 2 holes
10 sets of density pipes: specification: 600-1010kg/m³, Index value: 0.5, total length: 300mm
the bath volume Ф 250 x 300 mm.
Overall dimension: 320 * 380 * 530mm weight;12kg
Cooler size: 330*330*350mm weight:10kg

Packing List

S/N Name Quantity Unit Note
1 Host 1 set
2 Water bath crock 1 piece
3 Bath cover assembly 1 set 2 measuring cylinders can be placed
4 Cryogenic refrigerating plant 1 set Compressor refrigeration
5 Control cable 1 piece
6 fuse tube 1 piece
7 Measuring cylinder 500 ml 2 piece
8 Operating instruction 1 copy
9 packing list 1 copy
10 Certificate of conformity warranty card 1 copy

10 sets of density pipes: specification: 600-1010kg/m³, Index value: 0.5, total length: 300mm
