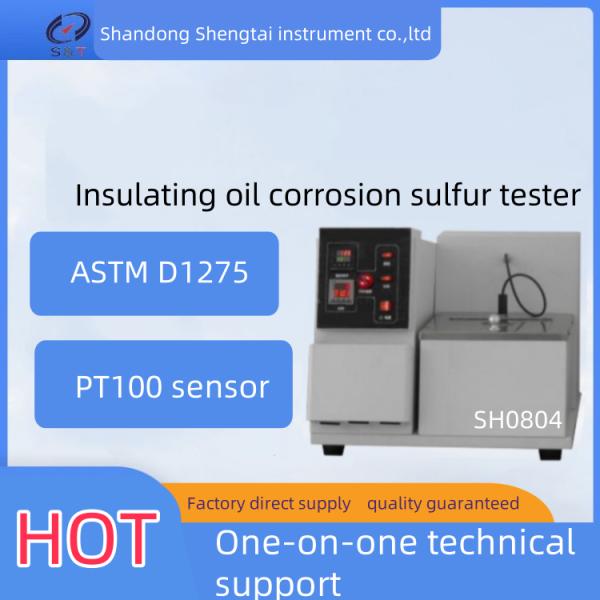

ASTM D1275 Electrical Insulation Oil Corrosive Sulfur Transformer Oil Corrosiveness Sulfur Tester
ASTM D1275 Electrical Insulation Oil Corrosive Sulfur Transformer Oil Corrosiveness Sulfur Tester
ASTM D1275 Electrical Insulation Oil Corrosive Sulfur Transformer Oil Corrosiveness Sulfur Tester
ASTM D1275 Electrical Insulation Oil Corrosive Sulfur Transformer Oil Corrosiveness Sulfur Tester
Specifications
Brand Name :
Shengtai Instrument
Model Number :
SH0804
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
100000sets/year
Delivery Time :
7-15work-days
Packaging Details :
wooden case
Implementation standard :
SH/T0804 sh/t0304 ASTM D1275
Operating temperature :
normal temperature ~ 200℃
Temperature control accuracy :
±1℃
Temperature control mode :
microcomputer temperature control, PT100 sensor, PID digital display
Timing mode :
digital display timer, accuracy deviation per hour is no more than 2 minutes to record the test time, with time alarm
Standard silver sample :
cold rolled, 20×40×0.5mm, purity 99.99
Working power supply :
AC220V 50HZ
Power :
1.5KW
Description

ASTM D1275 Electrical Insulation Oil Corrosive Sulfur Transformer Oil Corrosiveness Sulfur Tester

SH0804 electrical insulating oil corrosive sulfur tester is designed and manufactured by SH/T0804 SH/T0304standard and ASTM D1275;

Test method for the detection of corrosive sulfur affecting the operation of electrical equipment in mineral insulating oil for power equipment.

The performance characteristics of

1. The surface of the instrument is treated with electrostatic spray, anti-corrosion and easy to clean

2. Stainless steel heating box, transparent observation window, easy operation, the top of the hole inserted thermometer, circular drum mode

3. Microcomputer temperature control, PT100 sensor, PID digital display, high temperature control accuracy

4. Digital display timer, accuracy deviation per hour is no more than 2 minutes to record the test time, with time alarm

Technical parameters

Implementation standard

SH/T0804 sh/t0304 ASTM D1275
Operating temperature

normal temperature ~ 200℃
Temperature control accuracy ±1℃
Temperature control mode

microcomputer temperature control, PT100 sensor, PID digital display
Timing mode

digital display timer, accuracy deviation per hour is no more than 2 minutes to record the test time, with time alarm
Standard silver sample cold rolled, 20×40×0.5mm, purity 99.99
Working power supply

AC220V 50HZ
Power

1.5KW

Packing list

S/N Name Quantity Unit Remarks
1 Host 1 set
2 Temperature sensor 1 piece On the host
3 100ml flask 2 piece With plug
4

Standard silver test piece

Or Standard copper test piece

 2 piece
5 power cord 1 piece
6 Instructions 1 copy
7 Packing list 1 copy
8 Certificate warranty card 1 copy
