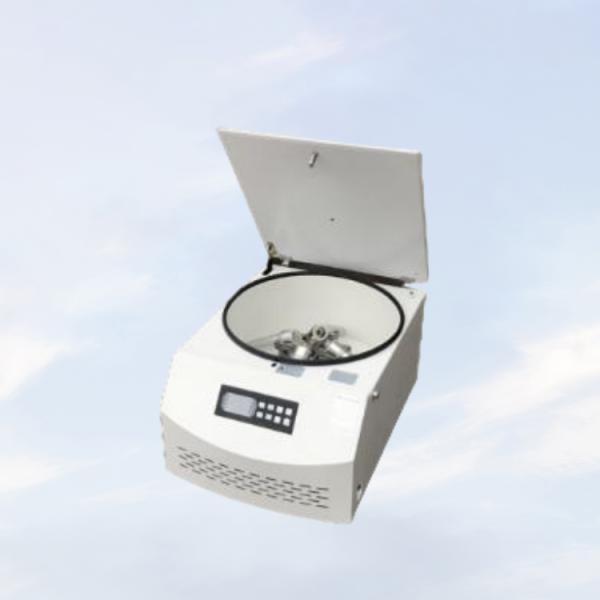

Crude Oil Moisture Sediment Analyzer Centrifuge 4000r/min ASTM D4007 touch panel
Crude Oil Moisture Sediment Analyzer Centrifuge 4000r/min ASTM D4007 touch panel
Crude Oil Moisture Sediment Analyzer Centrifuge 4000r/min ASTM D4007 touch panel
Crude Oil Moisture Sediment Analyzer Centrifuge 4000r/min ASTM D4007 touch panel
Crude Oil Moisture Sediment Analyzer Centrifuge 4000r/min ASTM D4007 touch panel
Crude Oil Moisture Sediment Analyzer Centrifuge 4000r/min ASTM D4007 touch panel
Specifications
Brand Name :
Shengtai Instrument
Model Number :
SH6533A
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10000 sets/year
Delivery Time :
7-15 work days
Packaging Details :
wooden case
Maximum speed :
4000r/min (recommended speed of 3000r/min when using glass tubes)
Maximum relative centrifugal force :
4390 × g (maximum recommended centrifugal force when using glass tubes is 2362 × g)
Petroleum specific rotor :
4×100ml
temperature range :
Room temperature -80 ℃
Timing range :
0-99min
Power Supply :
AC 220V 50Hz 18A
Whole machine noise :
≤65dB
External dimensions :
700×560×350mm
weight :
55kg
Description

Crude Oil Moisture Sediment Analyzer Centrifuge 4000r/min ASTM D4007 touch panel

SH6533A crude oil moisture and sediment analyzer is designed for the determination of moisture and sediment in crude oil using a centrifuge, and meets the requirements of GB/T6533-86 standard. Use centrifuge separation method to determine water and sediment in crude oil. It is an ideal separation equipment for moisture determination in the oil extraction industry and scientific research institutions.

Meet ASTM D4007 ASTM D1796

Main technical specifications, and performance characteristics:

● Microcomputer control, touch panel, intuitive digital display, automatic memory of operating parameters, RCF direct start, convenient operation and use

● High torque brushless variable frequency motor drive, European imported ultra high speed bearings, smooth operation, maintenance free

Steel body, stainless steel centrifugal chamber, imported key components, corrosion-resistant, easy to clean, durable

● Protection functions such as overspeed, door cover, and imbalance, as well as life calculation functions for the main engine and rotor, ensure safety.

Equipped with high-power heating design, it heats up quickly; Exclusive SCT speed control technology, fast acceleration and deceleration, time-saving and efficient

● Adopting uniform heating method, fast heating and high temperature control accuracy

● Microcomputer control, high torque brushless DC variable frequency motor; Stable speed and low motor noise

Adopting a silent electromechanical integrated motor door lock.

Equipped with dual shock absorbers and automatic balancing function, it runs smoothly and can be separated by visual balance.

Parameters

model SH6533A
Maximum speed 4000r/min (recommended speed of 3000r/min when using glass tubes)
Maximum relative centrifugal force 4390 × g (maximum recommended centrifugal force when using glass tubes is 2362 × g)
Petroleum specific rotor 4×100ml
temperature range Room temperature -80 ℃
Timing range 0-99min
Power Supply AC 220V 50Hz 18A
Whole machine noise ≤65dB
External dimensions 700×560×350mm
weight 55kg

Packing list

S/N Name Unit Quantity Remarks
1 Host set 1
2 Centrifugal tube set 1
3 instructions piece 1
4 Certificate of Conformity Warranty Card piece 1
