ASTM D323 Petroleum Testing Instruments SH8017 Gasoline Vapor Pressure Tester Reid Method
ASTM D323 Petroleum Testing Instruments SH8017 Gasoline Vapor Pressure Tester Reid Method
ASTM D323 Petroleum Testing Instruments SH8017 Gasoline Vapor Pressure Tester Reid Method
ASTM D323 Petroleum Testing Instruments SH8017 Gasoline Vapor Pressure Tester Reid Method
ASTM D323 Petroleum Testing Instruments SH8017 Gasoline Vapor Pressure Tester Reid Method
ASTM D323 Petroleum Testing Instruments SH8017 Gasoline Vapor Pressure Tester Reid Method
Specifications
Brand Name :
Shengtai Instrument
Model Number :
SH8017
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10000sets/year
Delivery Time :
7-15work-days
Packaging Details :
wooden case
Input power :
AC 220V ± 5% 50Hz
The use of water bath temperature range :
room temperature ~100℃
Temperature control accuracy :
± 0.1 ºC
Heating power :
Heating power
Pressure gauge :
Round Hand gauge 0 ~ 200KPa
pressure gauge accuracy :
+ 0.4%
Ambient temperature :
-10℃~35℃.
Relative humidity :
<85% RH
Power consumption of the whole machine :
no more than 1700W
Description

ASTM D323 Petroleum Testing Instruments SH8017 Gasoline Vapor Pressure Tester Reid Method

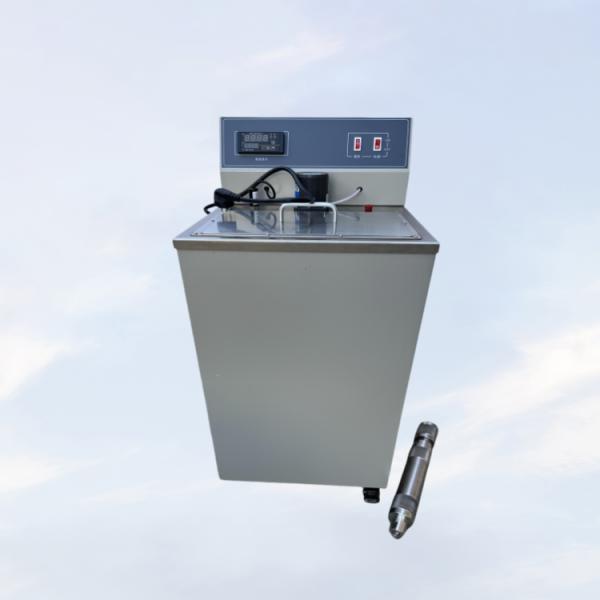

SH8017 steam pressure tester for petroleum products is designed and manufactured according to the requirements stipulated in the People's Republic of China standard GB/T8017 "steam pressure measurement method for petroleum products (Reid method)". It is suitable for measuring the steam pressure of gasoline, volatile crude oil and other volatile petroleum products.

Vapor Pressure Tester for Petroleum Products (Reid method)

ASTM D323 Petroleum Products Vapor Pressure Tester (Reid Method)

vapor pressure tester for petroleum products, Reid Vapor Pressure Testing machine

Petroleum Products Saturated Vapor Pressure Tester (Reid Method)

Reid Method Manual Type Petroleum Product Vapor Pressure Tester

Reid Method Vapor Pressure Tester

ASTM D323 Vapor Pressure Tester

II. Main technical indexes and parameters

1, working power supply: AC220V±10%, 50Hz;

2, water bath heating power: 1600W;

3, the use of water bath temperature range: room temperature ~90℃;

4, water bath temperature control accuracy: + 0.1℃;

5, pressure gauge accuracy: + 0.4%;

6, ambient temperature: -10℃~35℃.

7, relative humidity: ≤85%.

8. Power consumption of the whole machine: no more than 1700W

Description Parameters
Input power AC 220V ± 5% 50Hz
The use of water bath temperature range

room temperature ~100℃;
Temperature control accuracy ± 0.1 ºC
Heating power 1.6KW
Pressure gauge Round Hand gauge 0 ~ 200KPa
pressure gauge accuracy + 0.4%;
Ambient temperature -10℃~35℃.
Relative humidity <85% RH
Power consumption of the whole machine: no more than 1700W
Package size: 48 * 45 * 75cm weight 50kg

Packing list

S/N Name Unit Quantity Remarks
1 Vapor pressure meter set 1
2 Steam bomb set 2
3 Pressure gauge piece 2
4 Mercury thermometer piece 1
5 Instruction copy 1
6 Packing list copy 1
7 Certificate warranty card copy 1
