ASTM D6082 High Temperature Foam Testing Machine Foaming Test Apparatus For Lubricating Oil
ASTM D6082 High Temperature Foam Testing Machine Foaming Test Apparatus For Lubricating Oil
ASTM D6082 High Temperature Foam Testing Machine Foaming Test Apparatus For Lubricating Oil
ASTM D6082 High Temperature Foam Testing Machine Foaming Test Apparatus For Lubricating Oil
Specifications
Brand Name :
Shengtai Instrument
Model Number :
SH126E
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10000 sets/year
Delivery Time :
5-8work days
Packaging Details :
wooden case
Power supply :
AC(220±10%)V, 50Hz
Applicable standard :
ASTM D6082 SH/T0722
Temperature control type :
Imported PID digital thermostat
Heating method :
water-bath heating
Power Supply :
2.5KW
Temperature control range :
(Room temp.~150)ºC
Temperature control accuracy :
±0.1ºC
 Work unit :
2 Tubes
Flow control :
precision flow meter
Temperature range :
150±0.1℃
Description

ASTM D6082 High Temperature Foam Testing Machine Foaming Test Apparatus For Lubricating Oil

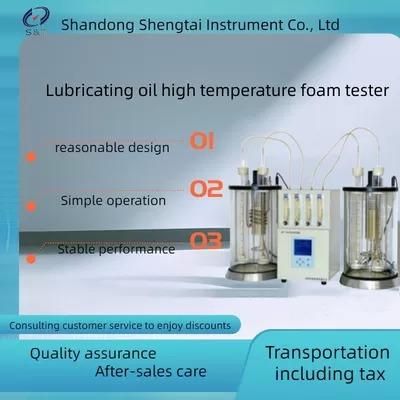

SH126E oil High temp foam tester conforms toASTM D6082 SH/T0722 method requirements. It is suitable for testing the foam tendency and foam stability of oil under the standard conditions.

lubricating oil high temperature foam characteristics tester is suitable for testing the foam characteristics of lubricating oil at 150℃.

Heat the specimen to 49 ℃, 30 min after cooling to room temperature, constant temperature measuring cylinder inside the sample and then transferred to the regulation, and heated to 150 ℃, spreading metal head in dry air, ventilation, 5 min, determine the static foam moments before stop ventilation quantity, sport bubble volume and stop after aeration time amount of static bubble, bubble disappear time and percentage of total volume increase.

Laboratory Equipment High Temperature Lubricating Oil Foam Characteristics Test

Lubricant High Temperature Foaming Characteristic Test Instrument by ASTM D6082

ASTM D6082 Apparatus for High Temperature Foaming Characteristics

150 Degree High Temperature Lubricating Oils Foamstability Foaming Testing Machine ASTM D6082

Technical parameters

● Temperature control mode: imported PID digital display temperature controller

● temperature control accuracy: ±0.1℃

● Heating method: oil bath heating

● Power of the whole machine: 2.5KW

● Working unit: 2 tubes

● flow control: precision flow meter

●working power supply: AC220V/ 50HZ

● temperature range: 150±0.1℃

Power supply AC(220±10%)V, 50Hz
Applicable standard ASTM D6082 SH/T0722
Temperature control type Imported PID digital thermostat
Heating method water-bath heating
Power Supply 2.5KW
Temperature control range: (Room temp.~150)ºC
Temperature control accuracy: ±0.1ºC
Work unit 2 Tubes
Flow control precision flow meter
Temperature range 150±0.1℃
Instrument size: 380 * 380 * 550mm Weight: 35kg
