Specifications
Brand Name :
Shengtai Instrument
Model Number :
SD5096
Certification :
ASTM D130
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
100000sets/year
Delivery Time :
7-15work-days
Packaging Details :
wooden case
Power supply :
AC(220±10%)V, 50Hz
Temperature sensor :
Pt100
Standard :
ASTM D130 and GB/T5096,ISO2160 and IP154
Temperature range :
(room temp~200)℃, set at will
Temperature control accuracy :
±0.1℃
Temperature display mode :
LED
Temperature control heating power :
600W
 Auxiliary heating power :
1000W
Time controlling range :
0.01 seconds to 99 hours and 99 minutes; Any setting
Holes :
4
Time display :
LED
Sample testing positions :
Four positions
Ambient temperature :
Room temperature~35 ℃
Relative humidity :
≤ 85%
Maximum power consumption :
2100 W
Instrument size :
380 * 450 * 580mm
Description

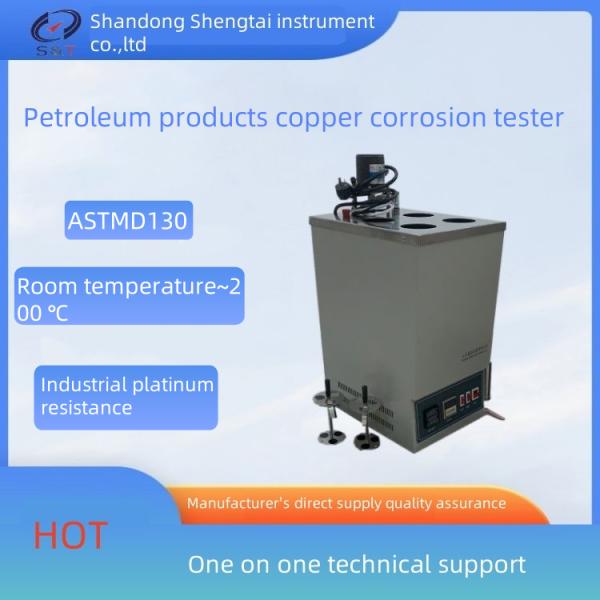

ASTMD130 SD5096 Copper Strip Corrosion Test Apparatus For Petroleum Products

SD5096 petroleum products copper corrosion tester is according to the standard of the People's Republic of China GB/T5096 equivalent ASTMD130 copper corrosion test method of the petroleum products the requirements stipulated in the design and manufacture, apply to specified by the standard test method, evaluation of aviation gasoline, aviation turbine fuel, motor gasoline, farm tractors, washing solvent, kerosene distillate fuel and lubricating oil and other petroleum products for copper corrosion degree.

Oil Measuring Instrument Copper Strip Corrosion Tester ASTM D130 Copper Strip Corrosion Tester Anti-corrosive Tester

petroleum products copper corrosion tester for Turbine oil test instrument ASTMD130 copper corrosion test method

ASTM D130Copper Test Strip Corrosion Colorimetric Board Use in Bomb LGP Analyze Copper Corrosion Degree Tester

Copper Strip Corrosion Tester for Petroleum Products

ASTM D130 Petroleum Products Copper Strip Corrosion Tester by Copper Strip Tarnish

ASTM D130 Copper Corrosion Degree of Petroleum Products Tester/Oil Copper Corrosion Tester

I. Main technical features

1. Adopt digital temperature controller, heater and electric stirrer to form a constant temperature bath, and the temperature in the bath is uniform;

With a timer, used for sample test control time setting and automatic timing, when it will also alarm prompts.

  • The instrument has 4 sample test holes.

II. Main technical specifications

Power supply: AC(220±10%)V, 50Hz
Temperature sensor: Pt100
Standard ASTM D130 and GB/T5096,ISO2160 and IP154
Temperature range: (room temp~200)℃, set at will.
Temperature control accuracy: ±0.1℃
Temperature display mode: LED
Temperature control heating power: 600W
. Auxiliary heating power: 1000W
Time controlling range: 0.01 seconds to 99 hours and 99 minutes; Any setting
Holes 4
Time display: LED
Sample testing positions: Four positions
Ambient temperature: Room temperature~35 ℃
Relative humidity: ≤ 85%
Maximum power consumption: 2100 W
Instrument size: 380 * 450 * 580mm weight: about 23kg

Packing list

S/N Name Quantity Unit Remarks
Host 1 set
Test tube bracket 2 piece
Copper strip 6 piece
test tube 6 piece
Test bomb 2 piece
Observation tube 1 piece
Color comparison board imported 1 piece
power cord 1 piece
Fuse tube 1 piece 10A
instruction manual 1 copy
Packing list 1 copy
Certificate warranty card 1 copy

Provided by the customer: heating medium sandpaper grinder
