110-240V 50Hz LCD Display Automatic Eggshell Strength Tester With High Precision Intelligent Weighing Sensor
110-240V 50Hz LCD Display Automatic Eggshell Strength Tester With High Precision Intelligent Weighing Sensor
110-240V 50Hz LCD Display Automatic Eggshell Strength Tester With High Precision Intelligent Weighing Sensor
110-240V 50Hz LCD Display Automatic Eggshell Strength Tester With High Precision Intelligent Weighing Sensor
Specifications
Brand Name :
Shengtai Instrument
Model Number :
ST120H
Place of Origin :
China
MOQ :
1 carton
Payment Terms :
T/T
Supply Ability :
10 cartons per week
Delivery Time :
5-8 days
Packaging Details :
450mm×330mm×570mm 25kg
Measuring range: :
(0~200) N or (0~20) kg
Resolution: :
0.01N
Indication accuracy: :
<± 1%
Voltage: :
110~240V 50Hz
Description

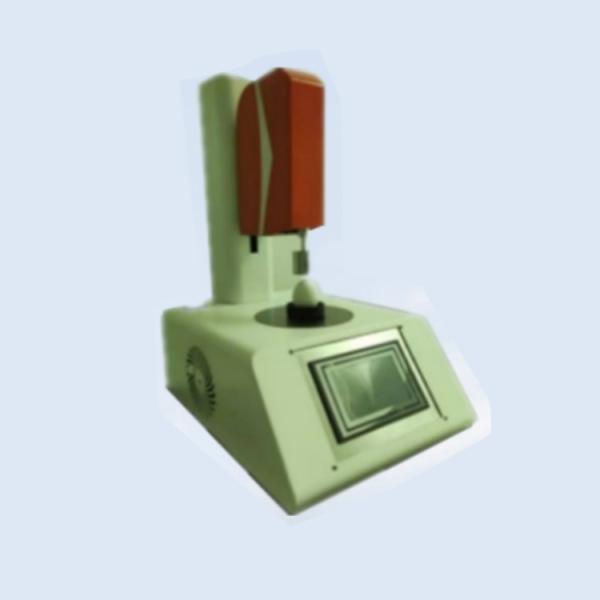

ST120H 110~240V 50Hz LCD display Automatic Eggshell Strength Tester with High Precision Intelligent Weighing Sensor

110-240V 50Hz LCD Display Automatic Eggshell Strength Tester With High Precision Intelligent Weighing Sensor

ST120H automatic eggshell strength tester is a new type of high precision intelligent test instrument, which adopts modern mechanical design concept and microcomputer processing technology to design meticulously and reasonably. It adopts advanced components, supporting parts, single chip microcomputer, and so on. Reasonable structure and multi-function design, configuration of LCD Chinese display, with the standard contained in the various parameters testing, conversion, adjustment, display, memory, printing and other functions.

Principle: the egg is fixed vertically between the upper and lower measuring surface, the measuring surface moves relatively at a certain speed, and the egg is crushed. The force required for the breaking process is measured by sensors and recorded and displayed.

Product parameter

Item Parameter
Measuring range: (0~200) N or (0~20) kg
Resolution: 0.01N
Indication accuracy: <± 1%,
Test speed: (0.5~20) mm/s can be arbitrarily set or fixed 20 mm/s
Voltage: 110~240V 50Hz
Dimension 450mm×330mm×570mm
Weight 25kg

Product features

1,Mechatronics modern design concept, compact structure, nice appearance, easy maintenance.

2,Adopting high precison weighing sensor fixed on upper platen, to ensure colleting data rapidly and accurately.

3,Adopting high-speed ARM processor, to ensure the high degree of automation and intelligentize, very easy to operate. It have power data processing function, can get all the statistical results.

4,Display the pressure force and deflection in time on the LCD display.

5,Finishing test, the measuring head can revert automatically.

6,Equipped with micro-printer, convenient to get the result.

Packing list

S/N Name Quantity Unit Remarks
1 Host 1 set
2 Egg buttress 1 piece
3 Power cord 1 piece
4 Fuse tube 1 piece 10A in the safety seat
5 instruction manual 1 Copy
6 Certificate warranty card 1 copy
