ST-Z19 The Must-Have Instrument for Accurate and Comprehensive Physical Property Analysis of Materials and Chemicals

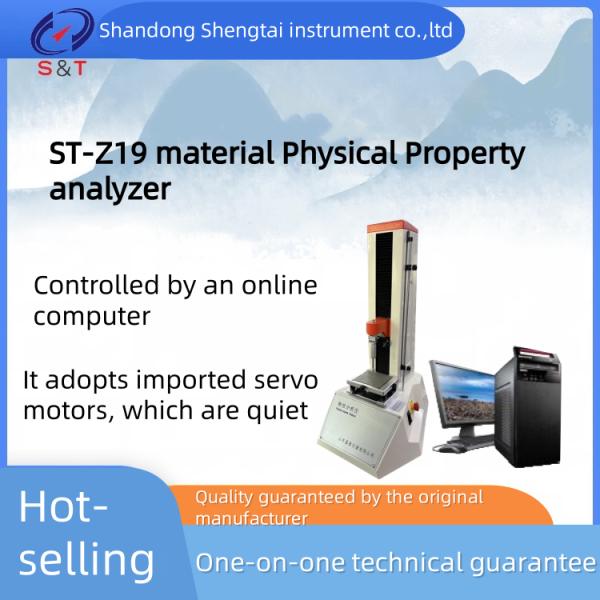

The ST-Z19 material physical property analyzer, as a sensory physical property analysis instrument, can be used to test the physical property indicators of samples in the fields of materials and chemicals, including hardness, tensile force, friction force, compressive force and other physical property analyses. The ST-Z19 material physical property analyzer is a mechatronic product. It is meticulously and reasonably designed and manufactured by adopting modern mechanical design concepts and ergonomic design principles, and using advanced dual-CPU microcomputer processing technology.

The ST-Z19 material physical property analyzer mainly consists of the texture analyzer main unit, dedicated software, spare probes and accessories. Its basic structure is generally composed of a mechanical device capable of deforming the sample, a container for holding the sample, and a recording system that records force, time and deformation rate. The test is conducted around distance, time and force, and the results are analyzed. The physical property analyzer mainly reflects the texture properties related to mechanical properties. Its results have high sensitivity and objectivity, and can be accurately quantified through the dedicated software equipped, using quantified indicators to objectively and comprehensively evaluate the items.

Product Introduction
1. Testing indicators: hardness, friction force, tensile force, brittleness, viscosity, elasticity, cohesion, chewiness, tensile strength, compressive strength, penetration strength and various other physical property indicators
2. The testing process is controlled by an online computer, and the testing program is built-in and available for call at any time
3. It can complete the basic physical property test analysis of the vast majority of samples
4. Feasible testing methods include penetration, extrusion, crushing, extrusion, stretching, breaking, etc
5. The transmission mechanism adopts ball screws, ensuring smooth transmission. It adopts imported servo motors, which are quiet and well-controlled
6. A 24-bit high-precision AD converter (with a resolution of up to 1/10,000,000) and high-precision force sensing elements are adopted to ensure the rapidity and accuracy of force value data collection for the instrument.
7. During the test, force-time, force-deformation, force-displacement, etc. are displayed in real time
8. It can be operated on a microcomputer. The texture analyzer can be controlled by a dedicated software computer, and the experimental data can be directly displayed on the computer interface, automatically stored and printed.
9. The force-sensing element complies with ISO 7500 Part1 or ASTM E4 standards
10. Force sensing element: 0.5, 1, 2, 5, 10, 20, 30, 50, 100Kg (choose one)
11. Force value resolution: 0.01N
12. Deformation resolution: 0.01mm
13. Test speed :1-1000mm/ minute (stepless speed regulation) 0.016-16.66mm/min
14. Travel distance: 360mm (adjustable as needed)
15. Texture analyzer dimensions: 430*480*680mm Weight: 28kg
16. Packaging size: 480*530*710mm. Weight: (Excluding computer) An additional 3kg is provided if a computer is included
Note: The appearance pictures, dimensions, volume and weight of the instrument are for reference only. If the instrument is updated, there may be minor changes. No further notice will be given.
