Salt Content Tester For Crude Oil(Electrometric Method) Conforms To ASTM D6470 Petroleum Testing Equipment
Salt Content Tester For Crude Oil(Electrometric Method) Conforms To ASTM D6470 Petroleum Testing Equipment
Salt Content Tester For Crude Oil(Electrometric Method) Conforms To ASTM D6470 Petroleum Testing Equipment
Salt Content Tester For Crude Oil(Electrometric Method) Conforms To ASTM D6470 Petroleum Testing Equipment
Salt Content Tester For Crude Oil(Electrometric Method) Conforms To ASTM D6470 Petroleum Testing Equipment
Salt Content Tester For Crude Oil(Electrometric Method) Conforms To ASTM D6470 Petroleum Testing Equipment
Specifications
Packaging Details :
Wooden box
condenser :
condensing the distilled gas.
Model Number :
SH6532
Payment Terms :
T/T
extraction :
flask and heating parts: 500ml; the heating part consists of electric heating wire wrapped around the lower end.
Delivery Time :
About 5 working days
temperature control knob :
used to heat the test solution requiring heating.
aviation plug :
tractor heating wire working power plug
Supply Ability :
1000 set per mouth
separator funnel piston :
control piston of extracdischarge solution.
triangle bottle :
grinding mouth triangle bottle, used to connect the solution released from the flask.
Brand Name :
Shengtai Instrument
Place of Origin :
China
MOQ :
1
column drop funnel :
used to add hot toluene, absolute ethanol, acetone and other reagents and make quantitative separation.
Description

The SH6532 Crude Oil Salt Content Tester is designed and manufactured in compliance with Chinese national standard GB/T 6532 Standard Test Method for Salt Content of Crude Petroleum and Petroleum Products. It is applied to measure the total halide content (mass fraction: 0.002 %‑0.02 % m/m) in crude oil, reduced crude, cracked residue and fuel oil.
This instrument can also evaluate seawater contamination in turbine oil and marine fuel oil. It may be adopted for testing other sample types when the required test precision falls within the method’s applicable range.
This electrometric‑method crude oil salt content tester complies with ASTM D6470.

product model SH6532
product name Extraction of Crude oil salt content tester
manufacturer Shandong Shengtai Instrument Co., Ltd
surveillance project It is suitable to determine total amount of halides (concentration from 0.002% to 0.02% (m/m)) in the crude petroleum, reduced oil, cracked residue and fuel oil.
Standard GB/T6532 and ASTM6470

Salt Content Tester For Crude Oil(Electrometric Method) Conforms To ASTM D6470 Petroleum Testing Equipment

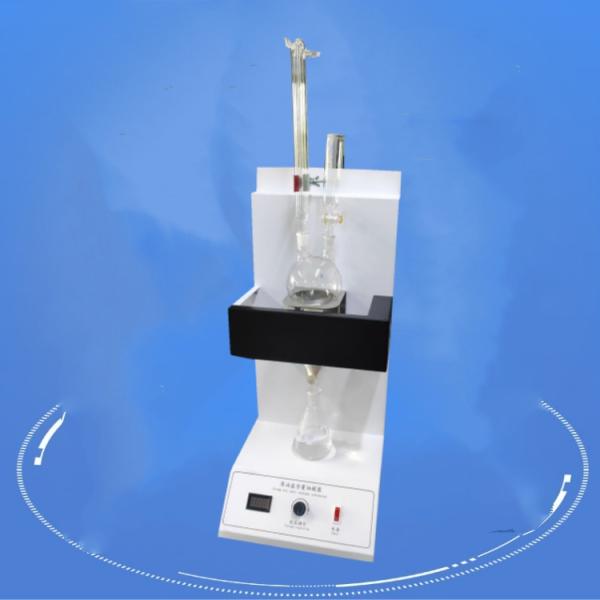

Main structure of instrument

⑴ extraction: flask and heating parts: 500ml; the heating part consists of electric heating wire wrapped around the lower end.

⑵ column drop funnel: used to add hot, absolute ethanol, other reagents and make quantitative separation.

⑶ condenser: condensing the distilled gas.

⑷ temperature control knob: used to heat the test solution requiring heating.

⑸ separator funnel piston: control piston of extracdischarge solution.

⑹ triangle bottle: grinding mouth triangle bottle, used to connect the solution released from the flask.

⑺ aviation plug: tractor heating wire working power plug

key technical indexes

1. Extractor: As per standard GB/T 6532
2. Heating power of extractor: 300W
3. Power supply: AC(220±10)V,50Hz
4. Dimension of main unit: 380mm*220mm*690mm

Note: The customer shall provide a magnetic mixer and a potential titrator

Extractor as per GB/T6532
Heating power of extractor 300 W
Dimension of main unit

380mm*220mm*690mm
Insulating resistance of the instrument no less than 2MΩ
Power supply 220±10V, 50Hz
