ASTM D217 Automatic Cone Penetration Apparatus With Temperature Control
ASTM D217 Automatic Cone Penetration Apparatus With Temperature Control
ASTM D217 Automatic Cone Penetration Apparatus With Temperature Control
ASTM D217 Automatic Cone Penetration Apparatus With Temperature Control
ASTM D217 Automatic Cone Penetration Apparatus With Temperature Control
ASTM D217 Automatic Cone Penetration Apparatus With Temperature Control
ASTM D217 Automatic Cone Penetration Apparatus With Temperature Control
ASTM D217 Automatic Cone Penetration Apparatus With Temperature Control
Specifications
Packaging Details :
wooden case
Model Number :
SH017
Resolution :
0.1 Penetration(0.01mm)
Payment Terms :
T/T
Temperature control accuracy :
25±0.1ºC
Delivery Time :
7-15work-days
Supply Ability :
100000sets/year
Stirring :
automatically stirred by a magnetic stirrer
Place of Origin :
China
Taper precision :
±1 cone degree
Brand Name :
Shengtai instrument
Measurement Range :
0 Penetration~680 Penetrations
MOQ :
1
Standard cone :
102.5±0.05g according to ASTM D217 and GB/T269
Description

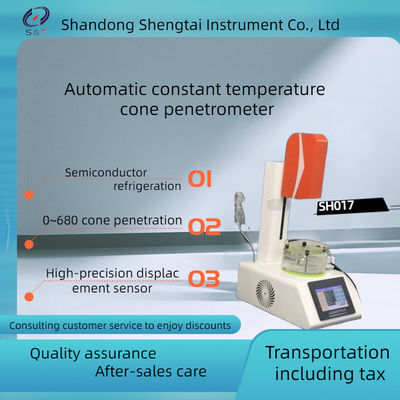

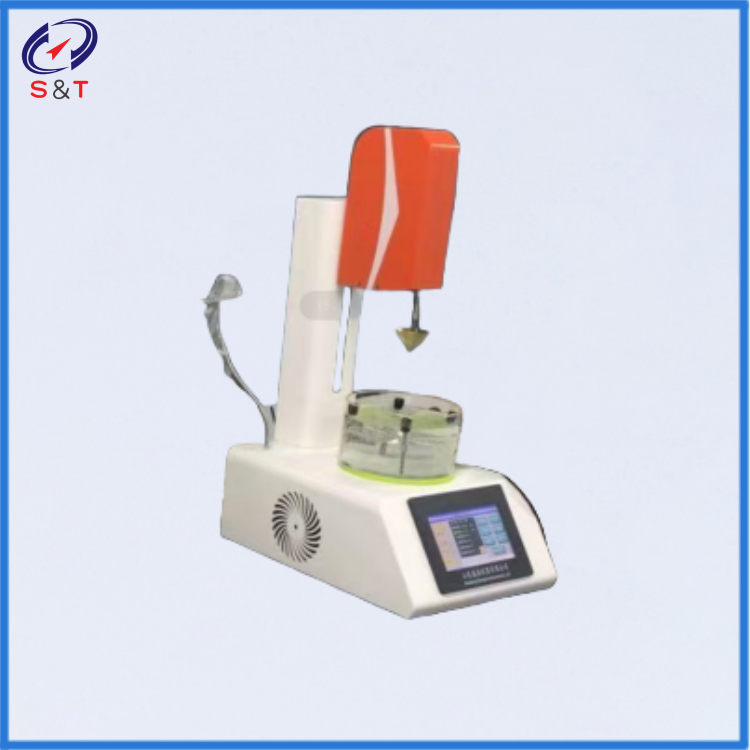

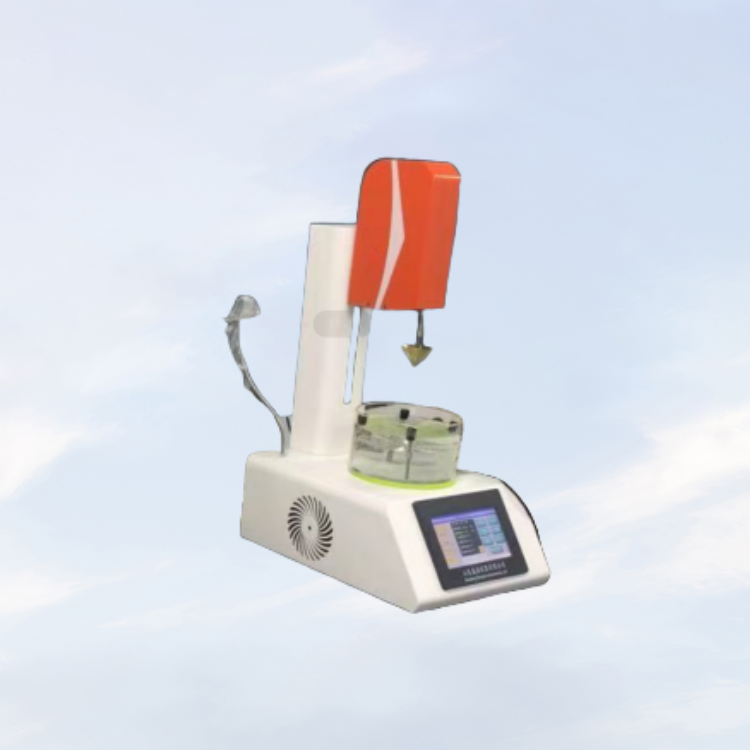

SH017 Automatic constant temperature cone penetration meter/tester

SH017 Automatic Constant Temperature cone/needle penetration Tester is designed and manufactured according to the technical requirements and relevant regulations of GB/T269 ASTM D217 and GB/T4509 ASTM D5 standards It is mainly suitable for testing the cone penetration of grease (or Vaseline).

Meet Standard: ASTM D217 ASTM D1403 ASTM D 5

ASTM D217 Grease Cone Needle Penetration Meter Machine

ASTM D217 Standard Lubricating Grease Cone Penetration Tester

ASTM D5 constant temperature Penetration Tester with Water Bath and Penetrometer

ASTM D217 Cone Penetration Analyzer for Lubricating Grease Penetration Analysis

I. Main technical features

Meet the standards: GB/T269 ASTM D217 and GB/T4509 ASTM D5

1. Upgraded to 7-inch color LCD display;

2, constant temperature refrigeration method: external semiconductor refrigeration.

3, detection method: high precision displacement sensor.

4. After upgrade, 199 groups of historical data can be stored for easy query;

At the same time can be equipped with U disk output function

II. Main technical parameters

Model SH017 Determination of the grease cone Penetration tester
Measurement Range

0 Penetration~680 Penetrations
Resolution

0.1 Penetration(0.01mm)
Constant temperature refrigeration method

semiconductor refrigeration
Taper precision

±1 cone degree
Standard cone 102.5±0.05g according to ASTM D217 and GB/T269
Application Petroleum Asphalt Testing OR Determination of the grease cone Penetration
Temperature control accuracy 25±0.1ºC
Stirring automatically stirred by a magnetic stirrer
Transport Package Plywood Case
Result output at the same time can be equipped with U disk output function, output to the PC for long-term storage
Output format The output format of the result USB flash disk is CSV or EXCEL.
Standard printing standard micro printer automatic measurement automatic thermal printing

ASTM D217 Automatic Cone Penetration Apparatus With Temperature Control

Packing list:

S/N Name Unit Quantity Remarks
1 Instrument host set 1
2 Standard cone piece 1
3 Standard sample box piece 1
4 Heating and cooling thermostatic bath set 1 Warm up in winter and cool down in summer
5 Power cord piece 1
6 instructions copy 1
7 Certificate warranty card copy 1
