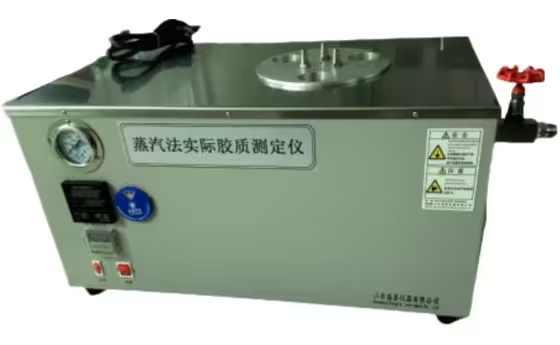

SH8019B Actual Gel Tester (Steam Jet Method)

The SH8019B actual gum tester is designed and manufactured in accordance with the requirements of the Chinese standard GB/T 8019-2008 "Determination of Gum Content in Fuel by Jet Evaporation Method".

Applicable to the method specified in GB/T 8019-2008 standard, using steam evaporation medium, for determining the actual gum content in aviation turbine fuel.

Standard: GB/T 8019 ASTM D381

• Adopting a metal bath heating system, the heating speed is fast and the bath temperature is uniform.
• The design has 3 independent test holes, which can simultaneously test 3 samples or test 1-3 samples.
• Testing efficiency is high, the use is convenient and flexible, and it can meet the testing requirements of different users.
• Select high-quality evaporation furnaces with stable gas supply that meets the requirements of GB/T 8019 standard.
• Each test hole is equipped with an independent flow meter, which can independently adjust the hot steam flow rate of each test hole.

• Working power supply: AC220V ± 10% 50Hz 2.5kW
• Type and size of evaporation bath: Aluminum bath block with a diameter of 260mm × 130mm
• Number of test holes: 3
• Test hole size: φ 51mm × 70mm
• Working temperature:
  • During steam bath, the experimental bath temperature is (232-246) ℃
  • Evaporation bath (test hole) (229-235) ℃
• Temperature control method: automatic temperature control
• Temperature display: digital display
• Flow display: displayed by pressure gauge
• Gas source: external electric heating steam boiler
• Host size: 650 * 550 * 430mm
• Weight: 28kg

Shandong Shengtai Instrument Co., Ltd. provides the following quality assurance for the instruments sold to you:

• The provided instrument materials are brand new, meet quality standards, and have a manufacturer's certificate of conformity;
• The materials and main components provided meet the technical requirements specified in the technical documentation;
• The overall quality assurance period of the equipment is one year (excluding normal wear and tear of vulnerable parts).
• We are responsible for free maintenance of any instrument quality issues that occur during the warranty period.
• Due to equipment malfunction caused by the user's responsibility, we are responsible for repairing and charging reasonable fees.
• Lifetime discounted supply of parts for equipment, and lifetime maintenance and repair of the entire machine.
• After the expiration of the warranty period, if the user needs maintenance and technical services, we will only charge a cost fee.
