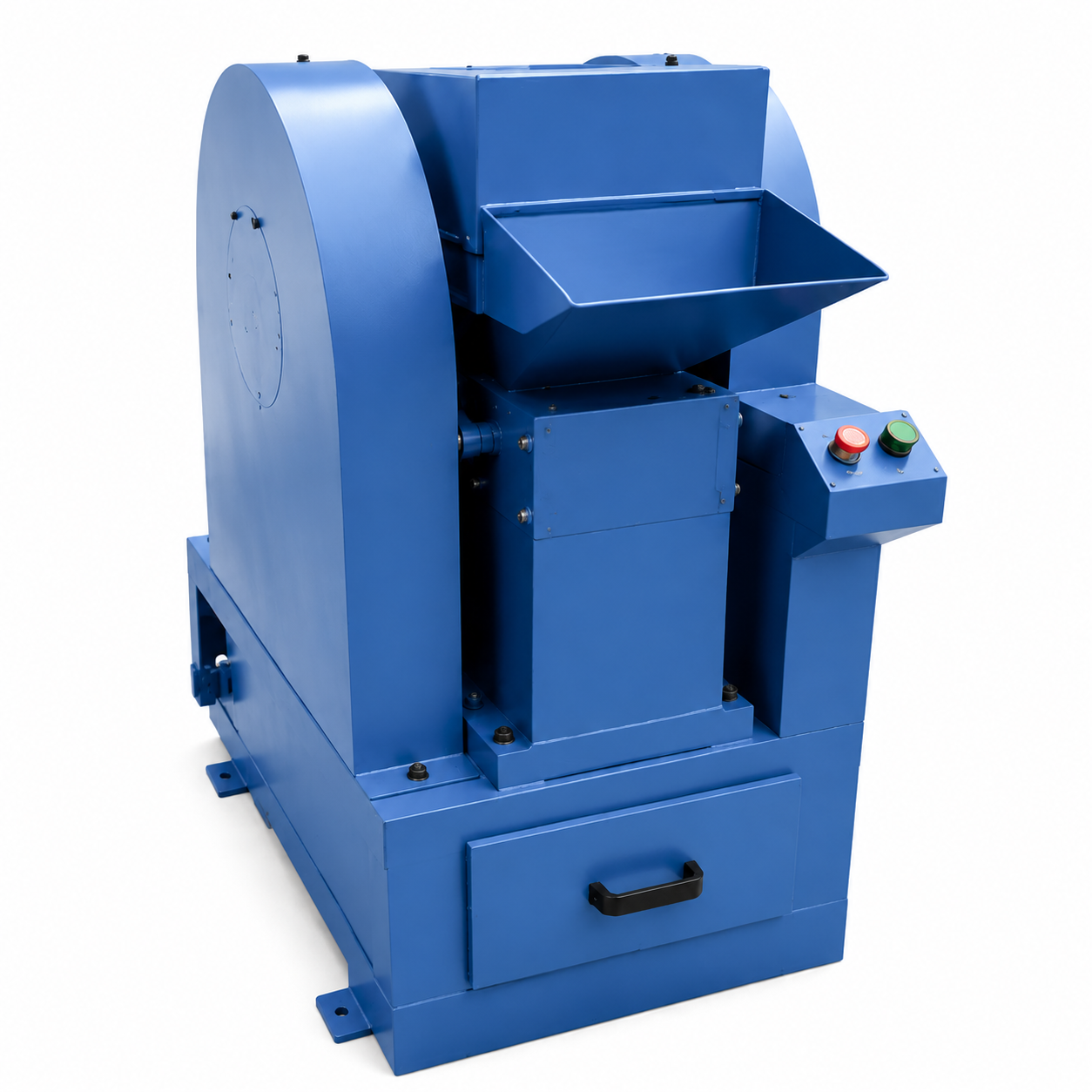

Mining Laboratory Jaw Crusher with Adjustable Output Size and Stable Performance
Mining Laboratory Jaw Crusher with Adjustable Output Size and Stable Performance
Mining Laboratory Jaw Crusher with Adjustable Output Size and Stable Performance
Mining Laboratory Jaw Crusher with Adjustable Output Size and Stable Performance
Mining Laboratory Jaw Crusher with Adjustable Output Size and Stable Performance
Mining Laboratory Jaw Crusher with Adjustable Output Size and Stable Performance
Specifications
Price :
Negotiate
Product Name :
Laboratory Jaw Crusher
Output Size :
5-25 mm Adjustable
Payment Terms :
T/T,L/C
Crushing Type :
Double Toggle
Material :
High Manganese Steel Jaw Plate
Speed :
285-320 rpm
Certification :
Iso 9001
Model Number :
SZ　100ｘ150
Capacity :
480-3000 kg/h
Delivery Time :
1-3 working days
Application :
Mineral Sample Crushing
Max Feeding Size :
80-100 mm
Packaging Details :
Standard export packing is provided, and customized packing is available upon request.
Type :
Jaw Crusher
Place of Origin :
China
MOQ :
1
Usage :
Mining Laboratory Equipment
Brand Name :
Y&X
Motor Power :
3-4 kW
Description
Mining Laboratory Jaw Crusher with Adjustable Output Size and Stable Performance
The SZ Series Laboratory Jaw Crusher is specifically engineered for crushing various mineral samples, rocks, and geological materials in laboratory environments. Incorporating advanced domestic and international jaw crusher technology, this machine utilizes a double-toggle crushing structure to deliver powerful crushing force, stable operation, and reliable performance.
Featuring a compact structure, uniform particle size output, adjustable discharge opening, easy operation, and low noise levels, this crusher serves as an ideal solution for mineral processing laboratories, geological exploration institutes, metallurgy laboratories, and mining enterprises.
Compatible Materials
  • Metallic ores
  • Non-metallic minerals
  • Rocks
  • Geological samples
  • Building materials
  • Coal and other hard materials
Mining Laboratory Jaw Crusher with Adjustable Output Size and Stable Performance

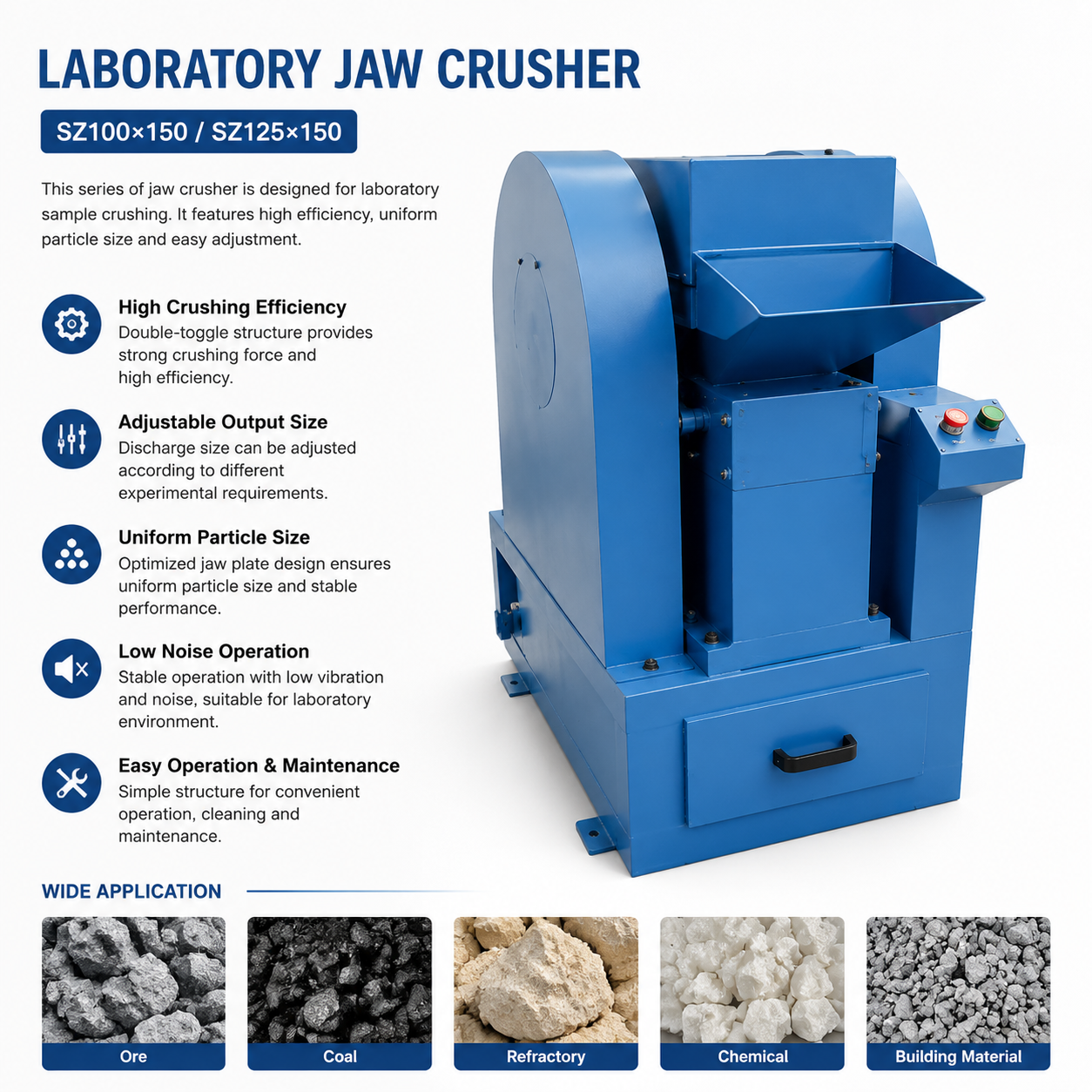

Key Features & Advantages
Strong Crushing Capacity
Equipped with a powerful crushing mechanism, the jaw crusher provides high crushing force and excellent crushing efficiency for hard mineral samples.
Adjustable Discharge Size
The discharge particle size can be adjusted according to different testing requirements:
  • SZ100×150: Output size 5-25 mm adjustable
  • SZ125×150: Output size ≤4 mm (90% proportion)
Uniform Crushing Effect
The optimized jaw plate design ensures stable crushing performance and relatively uniform particle size distribution.
Easy Operation & Maintenance
The equipment adopts a simple structure with convenient operation and maintenance, suitable for laboratory daily use.
Stable and Low Noise Operation
The machine operates smoothly with balanced performance, reducing vibration and noise during laboratory operation.
Applications
  • Mining laboratories
  • Mineral processing plants
  • Geological exploration institutes
  • Metallurgical laboratories
  • Universities and research institutes
  • Cement and construction material industries
  • Coal and energy industries

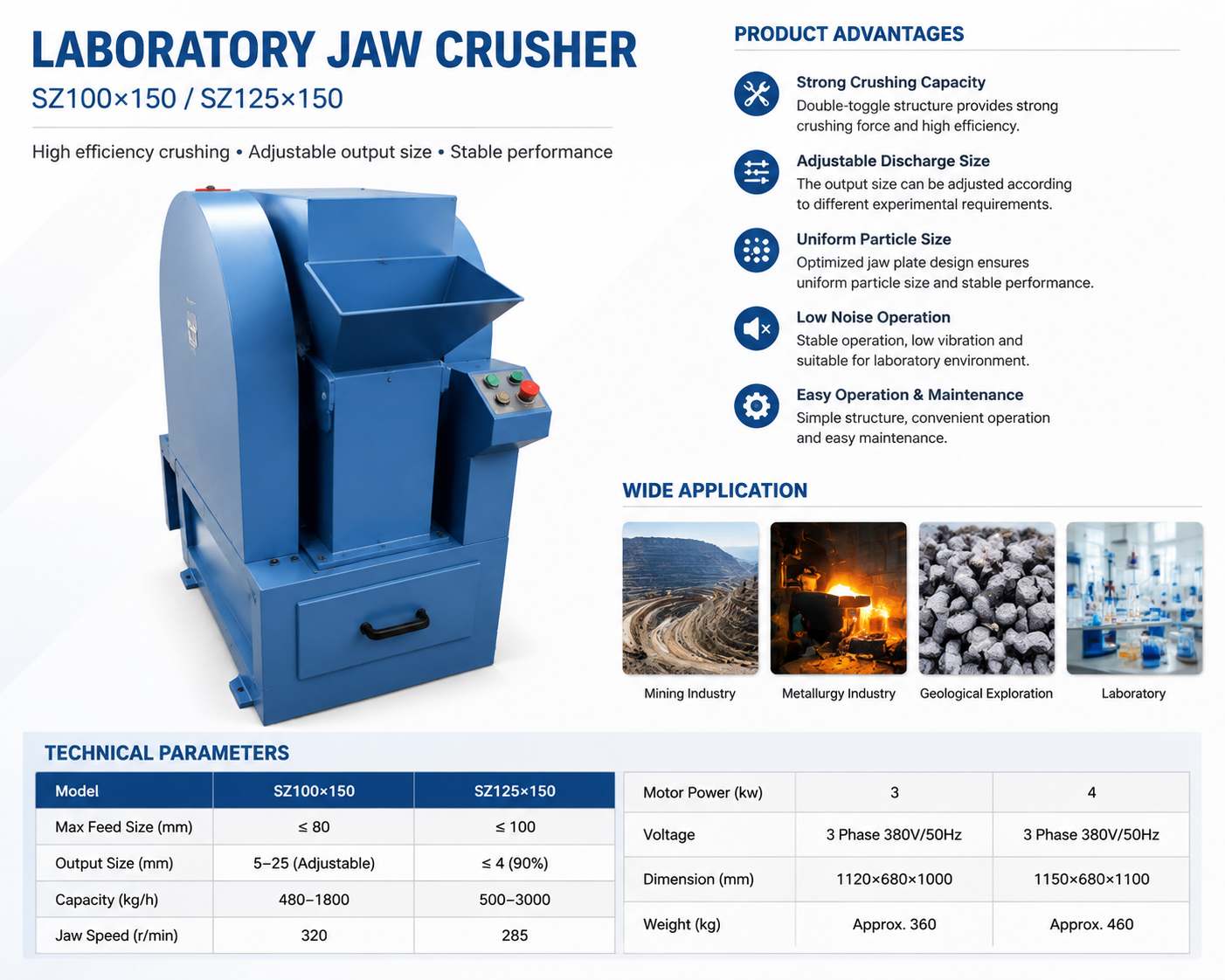

Technical Specifications
Model SZ100×150 SZ125×150
Crushing Material High Manganese Steel Jaw Plate High Manganese Steel Jaw Plate
Max Feed Size ≤80 mm ≤100 mm
Output Size 5-25 mm Adjustable ≤4 mm (90%)
Capacity 480-1800 kg/h 500-3000 kg/h
Jaw Speed 320 r/min 285 r/min
Motor Power 3 kW 4 kW
Voltage Three Phase 380V / 50Hz Three Phase 380V / 50Hz
Dimension 1120×680×1000 mm 1150×680×1100 mm
Weight Approx. 360 kg Approx. 460 kg
Why Choose Y&X Laboratory Jaw Crusher?
  • Professional Mining Laboratory Equipment Supplier - Y&X provides complete laboratory solutions for mineral processing, including crushing, grinding, flotation and analysis equipment.
  • Designed for Mineral Testing - The SZ series jaw crusher is optimized for geological samples, ores and laboratory preparation processes.
  • Reliable Performance - Stable structure and durable components ensure long service life under continuous laboratory operation.
  • Complete Technical Support - Y&X provides equipment selection guidance, operation support and after-sales technical service worldwide.
Mining Laboratory Jaw Crusher with Adjustable Output Size and Stable Performance
Packaging & Delivery
Packaging
  • Standard export wooden case
  • Protection against transportation damage
  • Suitable for international shipment
Delivery
  • Sea freight
  • Air freight
  • Customized logistics solutions available
Frequently Asked Questions
Q1: What materials can the laboratory jaw crusher crush?
It can crush various mineral ores, rocks, geological samples, coal and other hard materials used for laboratory testing.
Q2: What is the maximum feeding size?
SZ100×150 supports feeding materials up to 80 mm, while SZ125×150 supports up to 100 mm.
Q3: Can the output particle size be adjusted?
Yes. The discharge size can be adjusted according to different laboratory testing requirements.
Q4: Is this crusher suitable for mining laboratories?
Yes. It is specially designed for mining laboratories, geological research institutes and mineral processing applications.
