MPE-100x250 Sealed Jaw Crusher Dust Proof Fine Crushing Rare Earth NdFeB Ceramic Pigment
MPE-100x250 Sealed Jaw Crusher Dust Proof Fine Crushing Rare Earth NdFeB Ceramic Pigment
MPE-100x250 Sealed Jaw Crusher Dust Proof Fine Crushing Rare Earth NdFeB Ceramic Pigment
MPE-100x250 Sealed Jaw Crusher Dust Proof Fine Crushing Rare Earth NdFeB Ceramic Pigment
Specifications
Delivery Time :
1-3 working days
Discharge Adjustment Range :
1-10 mm
Max Material Compressive Strength :
250 MPa
Sealing Performance :
Fully sealed, dust proof, anti-oxidation
Brand Name :
Y&X
Processing Capacity :
100-1500 kg/h
Place of Origin :
China
Packaging Details :
Standard export packing is provided, and customized packing is available upon request.
Model :
MPE-100x250
MOQ :
1
Eccentric Shaft Speed :
420 r/min
OEM/ODM :
Available
Model Number :
MPE-100x250
Motor Power :
4 kW
Applications :
Rare Earth NdFeB Magnetic Materials, Ceramic Pigments, Metal Oxides, Metallurgy, Geology, Coal, Chemicals, Building Materials
Price :
Negotiate
Product Type :
Complex Swing Sealed Jaw Crusher
Payment Terms :
T/T,L/C
Feed Inlet Size :
100x250 mm
Certification :
Iso 9001
Max Feed Particle Size :
80 mm
Description

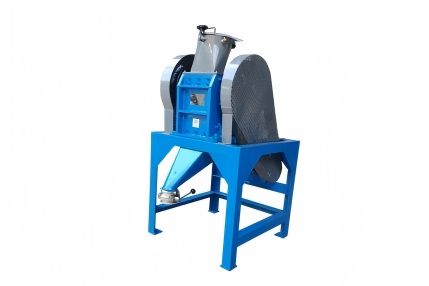

MPE-100x250 Sealed Jaw Crusher
The MPE-100x250 sealed jaw crusher is a complex swing type ultra-fine crushing machine specially designed for rare earth NdFeB magnetic materials, ceramic pigments, metal oxides and other special industries. It features a large crushing ratio, fine and uniform discharge particle size, high efficiency and low power consumption.
The whole machine is fully sealed to prevent dust pollution and avoid material oxidation, providing excellent environmental performance. It is mainly applicable to medium-fine crushing of various solid materials with compressive strength not greater than 250 MPa, and is widely used in a variety of special industries.
Product Features
  • Fully Sealed Dust Proof Design: The whole machine is sealed to prevent dust pollution during crushing, protecting the working environment and operator health.
  • Prevents Material Oxidation: Sealed crushing chamber avoids material oxidation, ensuring the purity and quality of sensitive materials such as rare earth NdFeB and metal oxides.
  • Rare Earth NdFeB Fine Crushing: Specially designed for rare earth magnetic materials, ceramic pigments and metal oxides.
  • Large Crushing Ratio: Complex swing type structure delivers efficient ultra-fine crushing performance.
  • Fine and Uniform Discharge: Discharge particle size is fine and uniform with an adjustment range of 1-10 mm.
  • High Efficiency Low Power Consumption: 4 kW motor with processing capacity of 100-1500 kg/h.
Technical Specifications
Model MPE-100x250
Feed Inlet Size 100x250 mm
Max Feed Particle Size 80 mm
Discharge Adjustment Range 1-10 mm
Processing Capacity 100-1500 kg/h
Eccentric Shaft Speed 420 r/min
Motor Power 4 kW
Dimensions (High Frame) 900x900x1700 mm
Dimensions (Low Frame) 900x1100x1220 mm
Weight (High Frame) 650 kg
Weight (Low Frame) 620 kg
Max Material Compressive Strength 250 MPa
Note: parameters are compiled from current product documentation; actual configuration and technical parameters are subject to the factory shipment model.
Applications
The MPE-100x250 sealed jaw crusher is mainly applicable to medium-fine crushing of various solid materials with compressive strength not greater than 250 MPa, widely used in:
  • Rare earth NdFeB magnetic materials
  • Ceramic pigments
  • Metal oxides
  • Metallurgy
  • Geology
  • Coal
  • Chemicals
  • Building materials
  • Environmental protection
  • Other special industries
Why Choose Y&X Beijing Technology?
Y&X Beijing Technology Co., Ltd., established in 2014 and headquartered in Beijing, China, is a professional enterprise integrating scientific research, design, new product development, production and manufacturing. The company specializes in the research and supply of mineral processing reagents and equipment, including both industrial and laboratory mineral processing equipment. Our products are successfully marketed in Russia, Mongolia, Chile, Australia, Zimbabwe, Thailand, Laos, Indonesia, Tanzania, Nigeria and other countries and regions. The enterprise has achieved ISO 9001 quality management system certification, ensuring product quality conforms to relevant national and enterprise technical standards.
MPE-100x250 Sealed Jaw Crusher Dust Proof Fine Crushing Rare Earth NdFeB Ceramic Pigment
Frequently Asked Questions
What materials can this crusher process?
It is specially designed for rare earth NdFeB magnetic materials, ceramic pigments, metal oxides and other solid materials with compressive strength not greater than 250 MPa.
Why is the sealed design important?
The fully sealed design prevents dust pollution during crushing and avoids material oxidation, ensuring product purity and excellent environmental performance.
What is the discharge particle size?
The discharge adjustment range is 1-10 mm, producing fine and uniform particles.
What is the processing capacity?
The processing capacity is 100-1500 kg/h depending on material properties and discharge settings.
What is the maximum feed size?
The maximum feed particle size is 80 mm.
Can this machine be customized?
For different voltage requirements, frame types or other technical requirements, please confirm the specifications with the supplier before ordering.
Looking for a reliable sealed jaw crusher for special material crushing? Our engineers are ready to help you select the best solution for your application. Contact us for a quote today.
