XFD Lab Flotation Machine 0.5L-3.0L Large Air Intake Low Power Automatic Slurry Level Control
XFD Lab Flotation Machine 0.5L-3.0L Large Air Intake Low Power Automatic Slurry Level Control
XFD Lab Flotation Machine 0.5L-3.0L Large Air Intake Low Power Automatic Slurry Level Control
XFD Lab Flotation Machine 0.5L-3.0L Large Air Intake Low Power Automatic Slurry Level Control
Specifications
Series :
XFD Series
Vane Diameter :
φ45-70 mm (depending on model)
Dimensions :
400x310x660 mm to 460x350x780 mm
OEM/ODM :
Available
Price :
Negotiate
Supply Ability :
100 Sets per Month
Scraper Speed :
30 r/min
Slurry Surface Control :
Automatic control device, easy to adjust
Place of Origin :
China
Payment Terms :
T/T,L/C
Tank Volume :
0.5L / 0.75L / 1.0L / 1.5L / 3.0L
Delivery Time :
1-3 working days
Packaging Details :
Standard export packing is provided, and customized packing is available upon request.
Feed Size :
< 0.2 mm
Flotation Circuit :
Self forming, no auxiliary equipment required
Applications :
Copper, Zinc, Lead, Nickel, Gold and other non-ferrous metals; ferrous and non-metal roughing and selection
Impeller :
Backward tilting upper and lower blades
Spindle Motor Power :
90 W
Functions :
Air suction, slurry suction and flotation (triple functions)
Model Number :
XFD Series (XFD0.5-XFD3.0)
Product Type :
Single Cell Lab Flotation Test Machine
Certification :
Iso 9001
Weight :
26-50 kg
MOQ :
1
Brand Name :
Y&X
Vane Speed :
1890-2590 r/min (depending on model)
Description
XFD Lab Flotation Machine 0.5L-3.0L
Large air intake, low power consumption with automatic slurry level control for efficient mineral separation testing.
Product Overview

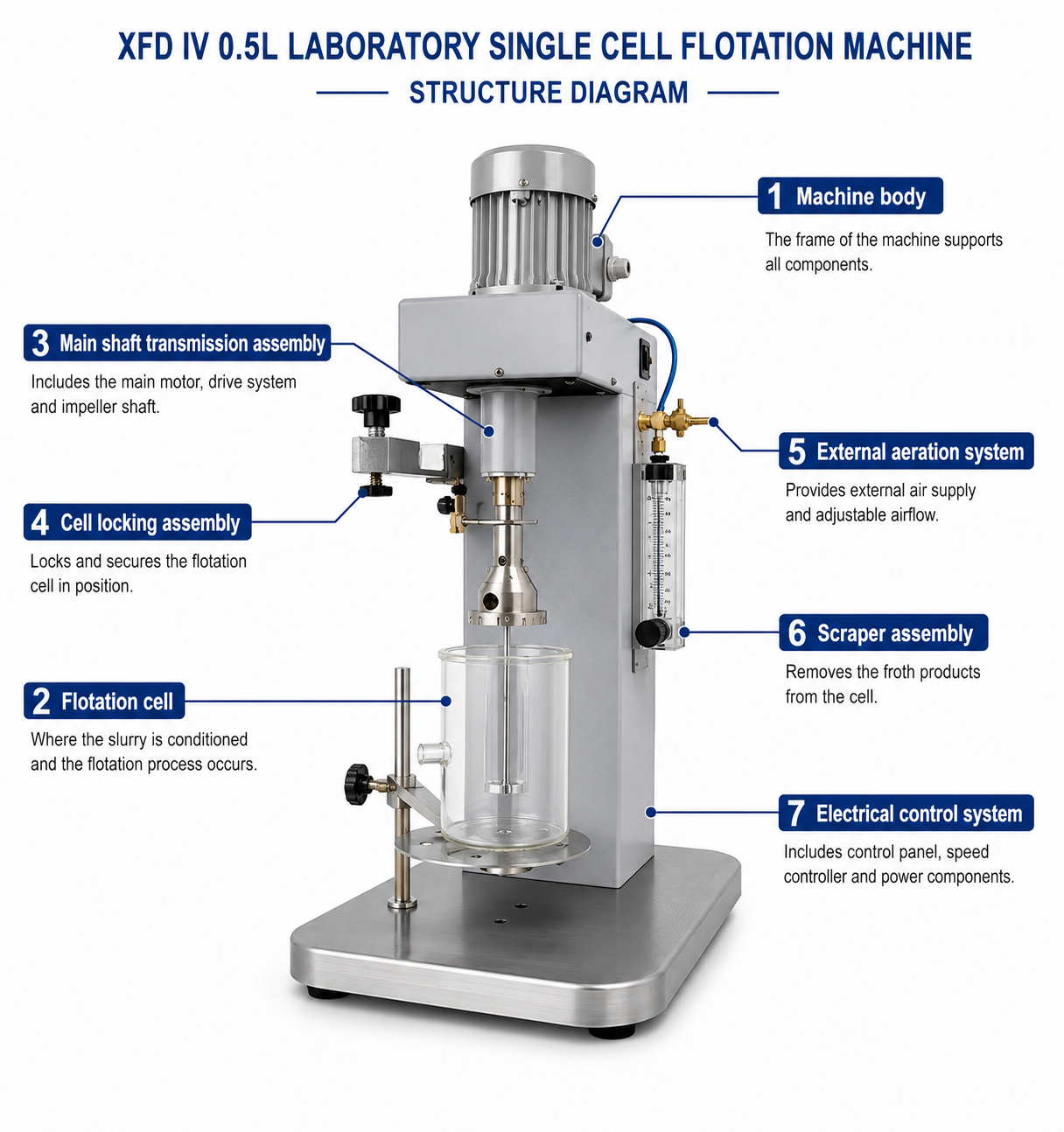

XFD Single Cell Lab Flotation Test Machine features motor-driven impeller rotation that creates centrifugal force and negative pressure, simultaneously aerating the slurry, mixing reagents, and refining mineralized foam for scraping via adjustable weir control.
XFD Lab Flotation Machine 0.5L-3.0L Large Air Intake Low Power Automatic Slurry Level Control
Key Features
  • Self-Forming Flotation Circuit: Triple functions of air suction, slurry suction and flotation without auxiliary equipment
  • Copper Zinc Lead Gold Separation: Ideal for non-ferrous metals and roughing/selection of ferrous metals and non-metals
  • Large Air Intake: High efficiency flotation testing with low power consumption
  • Reasonable Slurry Circulation: Minimizes coarse sand precipitation
  • Easy Process Changes: Horizontal configuration for convenient adjustments
  • Backward Tilting Impeller Blades: Upper and lower blades designed for stable slurry flow
XFD Lab Flotation Machine 0.5L-3.0L Large Air Intake Low Power Automatic Slurry Level Control
Technical Specifications
Model Tank Volume Vane Speed Vane Diameter Scraper Speed Feed Size Motor Dimensions Weight
XFD0.5 0.5L 2590r/min φ45mm 30r/min <0.2mm 90W 400*310*660mm 26kg
XFD0.75 0.75L 2590r/min φ45mm 30r/min <0.2mm 90W 400*310*660mm 26kg
XFD1.0 1.0L 2100r/min φ55mm 30r/min <0.2mm 90W 400*310*700mm 32kg
XFD1.5 1.5L 1910r/min φ60mm 30r/min <0.2mm 90W 400*310*700mm 32kg
XFD3.0 3.0L 1890r/min φ70mm 30r/min <0.2mm 90W 460*350*780mm 50kg
Working Principle
Motor-driven impeller rotation creates centrifugal force and negative pressure, simultaneously aerating the slurry, mixing reagents, and refining mineralized foam for scraping via adjustable weir control.
XFD Lab Flotation Machine 0.5L-3.0L Large Air Intake Low Power Automatic Slurry Level Control
Applications
The single-slot flotation machine is mainly used to separate non-ferrous metals such as copper, zinc, lead, nickel, gold, etc., and can also be used for the rough selection and selection of ferrous metals and non-metals.
About Y&X Beijing Technology
Y&X Beijing Technology Co., Ltd., established in 2014 and headquartered in Beijing, China, is a professional enterprise integrating scientific research, design, new product development, production and manufacturing. The company specializes in the research and supply of mineral processing reagents and equipment, including both industrial and laboratory mineral processing equipment. Our products are successfully marketed in Russia, Mongolia, Chile, Australia, Zimbabwe, Thailand, Laos, Indonesia, Tanzania, Nigeria and other countries and regions. The enterprise has achieved ISO 9001 quality management system certification, ensuring product quality conforms to relevant national and enterprise technical standards.
XFD Lab Flotation Machine 0.5L-3.0L Large Air Intake Low Power Automatic Slurry Level Control
Frequently Asked Questions
What is the XFD single cell flotation machine used for?
It is mainly used to separate non-ferrous metals such as copper, zinc, lead, nickel, gold, and can also be used for roughing and selection of ferrous metals and non-metals.
Does it need auxiliary equipment to form a flotation circuit?
No. It has the triple functions of air suction, slurry suction and flotation, forming its own flotation circuit without any auxiliary equipment.
What models are available?
XFD0.5, XFD0.75, XFD1.0, XFD1.5 and XFD3.0 with tank volumes from 0.5L to 3.0L.
What is the maximum feed size?
The feed size should be less than 0.2 mm.
What is the motor power?
The spindle motor power is 90W for all models.
Can this machine be customized?
For different voltage requirements or other technical specifications, please confirm with the supplier before ordering.
