FX Series Laboratory Flotation Machine with Continuous Flotation Operation 1.5L-39L Capacity and Mechanical Stirring Impeller
FX Series Laboratory Flotation Machine with Continuous Flotation Operation 1.5L-39L Capacity and Mechanical Stirring Impeller
FX Series Laboratory Flotation Machine with Continuous Flotation Operation 1.5L-39L Capacity and Mechanical Stirring Impeller
FX Series Laboratory Flotation Machine with Continuous Flotation Operation 1.5L-39L Capacity and Mechanical Stirring Impeller
Specifications
Model Number :
Continuous Flotation Machine
Application :
Mineral Processing Laboratory Testing
Payment Terms :
T/T,L/C
Delivery Time :
1-3 working days
MOQ :
1
Packaging Details :
Standard export packing is provided, and customized packing is available upon request.
Impeller Type :
Mechanical Stirring Impeller
Price :
Negotiate
Customized Service :
Available
Certification :
Iso 9001
Capacity :
1.5L-39L
Place of Origin :
China
Motor Power :
250W-1500W
Brand Name :
Y&X
Product Type :
Continuous Flotation Machine
Description

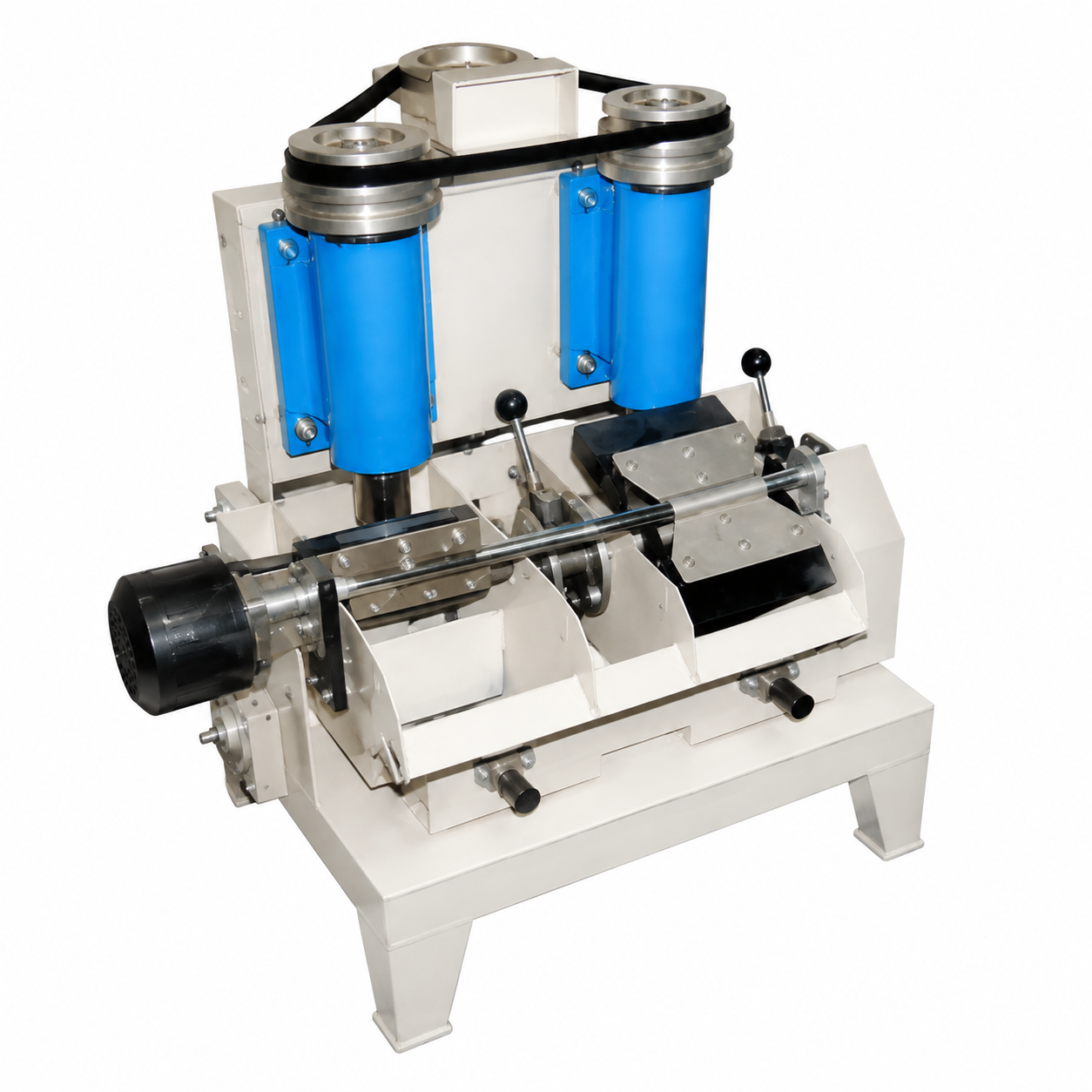

FX Series Laboratory Flotation Machine
FX Series Laboratory Flotation Machine is a professional mineral testing equipment designed for flotation experiments, beneficiation research, and small-scale continuous flotation tests. With mechanical agitation and stable aeration performance, this flotation cell helps laboratories and mining companies evaluate flotation reagents, optimize beneficiation processes, and improve mineral recovery. Available in multiple capacities from 1.5L to 39L, FX flotation machines can be customized according to different testing requirements.
FX Series Laboratory Flotation Machine with Continuous Flotation Operation 1.5L-39L Capacity and Mechanical Stirring Impeller

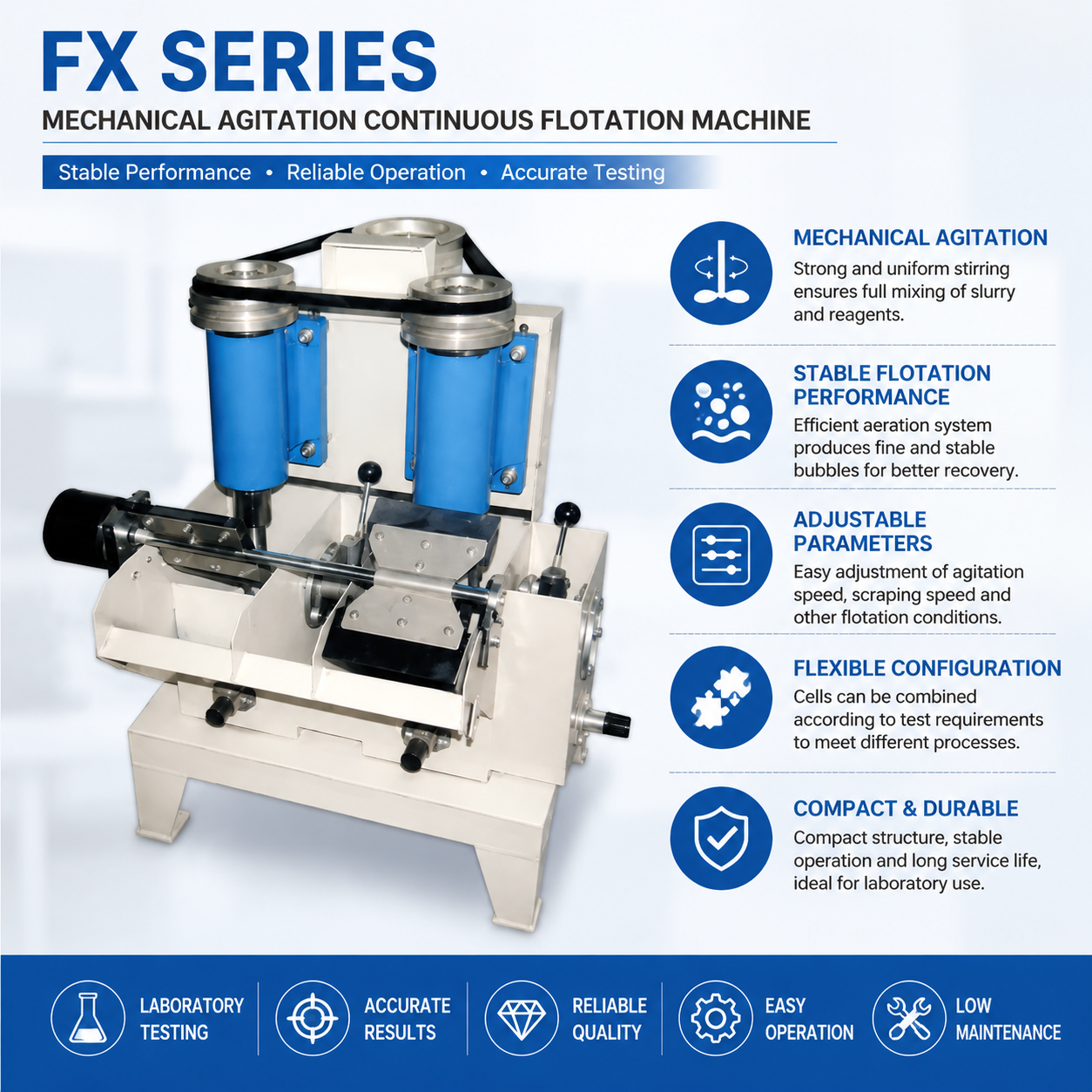

Key Features
  • Continuous Flotation Operation: Designed for continuous flotation tests, allowing simulation of industrial flotation processes in laboratory conditions.
  • Suitable for Various Minerals: Applicable for flotation research of metallic and non-metallic minerals, including copper, lead-zinc, iron ore, fluorite, tungsten, and other minerals.
  • Stable Flotation Performance: Uniform slurry mixing and reliable aeration improve experimental repeatability.
  • Multiple Capacity Options: Available from 1.5L to 39L for different laboratory testing requirements.
  • Industrial Process Simulation: Supports roughing, cleaning, and scavenging flotation experiments.
  • Customized Configuration: Cell number and flotation setup can be adjusted according to customer needs.
FX Series Laboratory Flotation Machine with Continuous Flotation Operation 1.5L-39L Capacity and Mechanical Stirring Impeller
Working Principle
The FX Series flotation machine uses a mechanical agitation system to mix ore slurry and flotation reagents evenly. During operation, the impeller rotates at high speed to generate negative pressure, introducing air into the slurry. Mineral particles selectively attach to bubbles and rise to form froth, while gangue minerals remain in the slurry and are discharged separately. By controlling agitation speed, aeration, reagent dosage, and flotation time, researchers can evaluate mineral separation performance and optimize flotation processes.

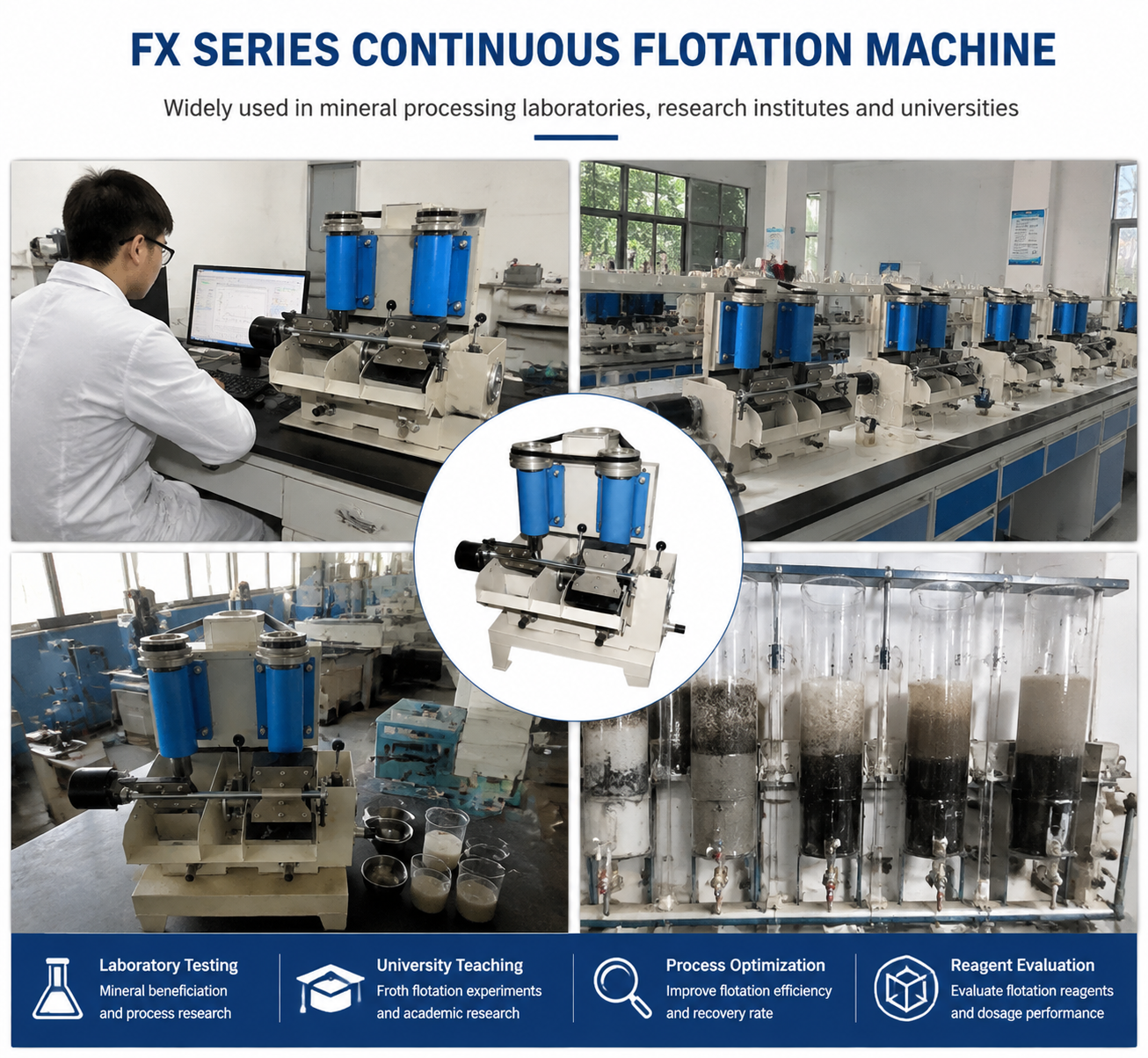

Applications
  • Mineral beneficiation laboratory testing
  • Ore flotation process research
  • Mining university teaching experiments
  • Flotation reagent evaluation
  • Pilot-scale flotation testing
  • Mineral separation process optimization
FX Series Laboratory Flotation Machine with Continuous Flotation Operation 1.5L-39L Capacity and Mechanical Stirring Impeller
Technical Parameters
Model FX2-1.5 FX2-3 FX2-7 FX2-12 FX2-24 FX2-39
Volume (L) 1.5 3 7 12 24 39
Flotation Cell Quantity 2 2 2 2 2 2
Impeller Diameter (mm) Φ70 Φ70 Φ100 Φ130 Φ170 Φ200
Impeller Speed (r/min) 1400 1332/1600/1836 1320 1100 447/618/787 809
Scraper Speed (r/min) 33 20/30 20/30 24 12/16/20 13/21
Feed Particle Size (mm) 0.05-0.2
Motor Power (W) 250 250 370 550 1100 1500
Dimensions (mm) 378*406*523 500*500*600 623*590*750 740*600*700 942*804*925 1081*762*930
Weight (kg) 25 40 55 85 260 280
Packaging & Service
Packaging:
  • Standard export wooden case
  • Moisture-proof protection
  • Safe transportation packaging
Service:
  • Technical consultation
  • Equipment selection support
  • Customized flotation cell configuration
  • Operation guidance
Frequently Asked Questions
Q1: What is the FX flotation machine used for?
FX flotation machine is mainly used for laboratory flotation tests, mineral processing research, and continuous flotation experiments.
Q2: Can the flotation cells be customized?
Yes. The number of flotation cells and configuration can be customized according to customer testing requirements.
Q3: What minerals can be tested by this flotation machine?
It can be used for flotation tests of copper, lead-zinc, iron, fluorite, tungsten, sulfide minerals, and other ores.
Q4: What is the difference between laboratory flotation machine and industrial flotation equipment?
Laboratory flotation machines are mainly used for process research, reagent testing, and beneficiation experiments, while industrial flotation machines are designed for large-scale production.
Q5: How to select the suitable model?
Selection depends on test requirements, sample quantity, mineral type, and expected flotation process. Our engineers can provide recommendations.
