Low-Temp Fracture Testing Machine Cryogenic Crack Testing Instrument Low Temperature Crack Tester
Low-Temp Fracture Testing Machine Cryogenic Crack Testing Instrument Low Temperature Crack Tester
Specifications
Brand Name :
Lonroy
Model Number :
LR-A068
Certification :
ISO ASTM CE
Place of Origin :
China
MOQ :
1
Price :
Negotaible
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
200
Delivery Time :
5-8 work days
Packaging Details :
wooden package
Product weight :
8 lbs / 4 kgs
Product dimensions :
10.5" L × 6" W × 12" T (267 mm × 152 mm × 305 mm)
Test station :
1
Specification :
GMW 14126
Description

Low-Temp Fracture Testing Machine Cryogenic Crack Testing Instrument Low Temperature Crack Tester

Instroduction

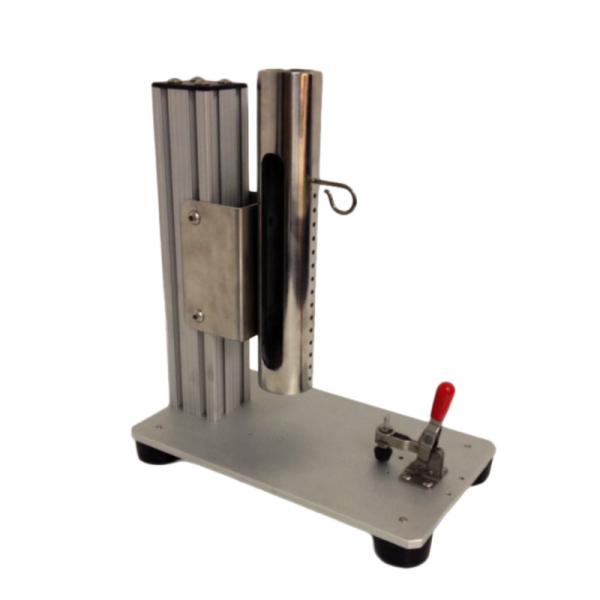

The GM low-temperature crack testing instrument, single tabletop type, is used for operation in the cold chamber. It consists of stainless steel tubes, stainless steel drop weights, stop pins and sample holders. The stop pins are placed into the machine holes and the pressing weights are hung at the designated height. Once the sample has completed the low-temperature soaking in the test fixture, the testing technician impacts the sample by removing the stop pins.


Instrument features

1. Low-temperature measurement

2. Cold chamber operation

3. Portable design

4. Stainless steel material

5. Lightweight

6. Manual operation

Operation Procedure

This low-temperature crack tester is equipped with a stainless steel guide fixture, a stainless steel drop hammer, and an aluminum test frame. All these components are used in the cold box.

1. Place the sample on the base tray.

2. According to the requirements of the test sample, adjust the drop height of the weight to achieve the required impact force for the test sample.

3. The impact weight is suspended in the guide fixture by the stop pin. The upper stop pin can be used to record the drop height of the weight during the test.

4. After preparation is complete, move the lower stop pin to release the weight from the tray and place it on top of the bottom sample. Observe the sample for evaluation.


Technical Specification

Product weight

8 lbs / 4 kgs

Product dimensions

10.5" L × 6" W × 12" T (267 mm × 152 mm × 305 mm)

Test station

1

Specification

GMW 14126
