DIN 3415 ISO 22777 22776 Adhesive Hook Fatigue Tester Velcro Hook Loop Fastener Fatigue Tester
DIN 3415 ISO 22777 22776 Adhesive Hook Fatigue Tester Velcro Hook Loop Fastener Fatigue Tester
Specifications
Brand Name :
Lonroy
Model Number :
LR-A077
Certification :
ISO ASTM CE
Place of Origin :
China
MOQ :
1
Price :
Negotaible
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
200
Delivery Time :
5-8 work days
Packaging Details :
wooden package
Test load :
5kg
Counter :
LCD liquid crystal display, 0-999,999
Wheel width :
70mm
Rolling speed :
60 rpm/min
Description

DIN 3415 ISO 22777 22776 Adhesive Hook Fatigue Tester Velcro Hook Loop Fastener Fatigue Tester

Introduction

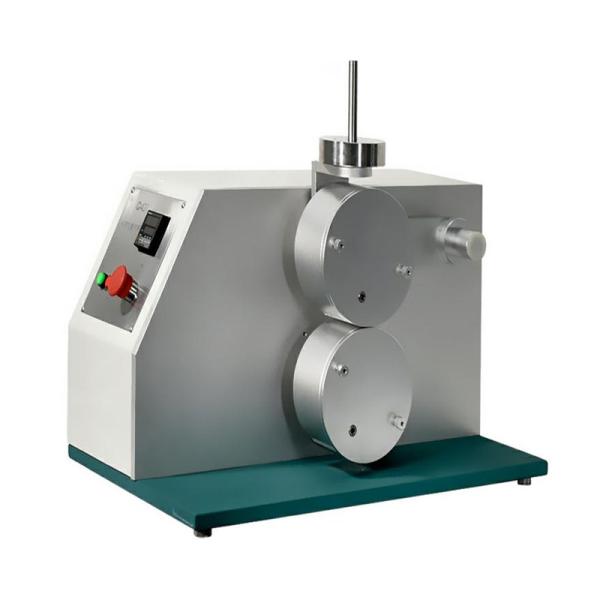

The Adhesive Hook Fatigue Tester / Hooked Tape Fatigue Strength Testing Machine is used to test the adhesion ability of the hooked tape (velcro tape) after repeated peeling and adhering actions, and to evaluate whether it meets the standard requirements.

Applicable standards

DIN-3415, GB/T 3903.20, GB/T 3903.21, GB/T 23315, ISO 22777, ISO 22776, SATRA PM123

Test principle

The hooked tape fatigue tester / hooked tape fatigue strength testing machine performs repeated peeling and adhering actions on the testing machine. After a certain number of repetitions, the test piece is pressed evenly by the weight of the roller, and then combined with the tensile testing machine to measure its adhesion force (AS) and adhesion strength (PA).

Technical Specification

Wheel diameter

Upper wheel φ162.5mm, Lower wheel φ160mm

Wheel width

70mm

Rolling speed

60 rpm/min

Reverse time

30 seconds reverse

Test load

5kg

Fixture groove

Width 4mm, Length 55 ± 2mm

Horsepower

AC1/8HP dual-frequency motor

Counter

LCD liquid crystal display, 0-999,999
