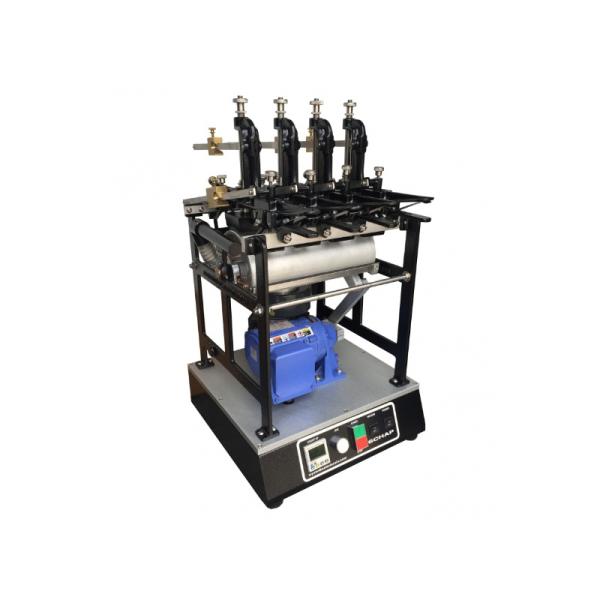

ASTM D3597 D4157 Wyzenbeek Wear Tester GM 2756M Oscillatory Wear Tester

Instroduction

The Wyzenbeek tester is a vibration wear testing machine with four stations, used to determine the wear resistance of fabrics, vinyl, leather, sewing seams, and other materials. Each station is equipped with a sample, and pressure is applied using a corrugated foam pad. At the same time, a grinding material (usually duck cloth or metal mesh screen) is fixed to the swinging drum and grinds the sample for a predetermined number of cycles. Each station has its own setting for sample tension and pressure pad. The provision of the other three stations enables the operator to run 1-4 samples.

Compliant with standards

ASTM D3597, ASTM D4157, FED-STD-191/5304, SAE J1530, GM 2756M, GM 2756M, TOYOTA TSL 5101G 3.9.4, LP-463KC-04-01, LP-463KB-06-01, SAE J 948, CFFA-1A

Scope of Application

The Oscillatory Wear Tester, also known as the Wyzenbeek Wear Tester, measures the wear resistance of fabrics when they are subjected to frictional movement against a standard friction medium or a metal mesh. It is particularly suitable for testing the wear resistance of textile items used in automotive decoration and furniture. The instrument complies with American standards and has 4 friction heads and an electronic counter to control the running cycle.

Principle of the Experiment

The long strip-shaped fabric sample is installed on the front and rear fixtures of the friction head, and a certain tension force is applied. On the circular friction platform, the friction medium is installed to make the sample come into contact with the friction medium, and a certain load is applied to the sample. The friction platform swings back and forth to perform friction on the sample. After a certain number of friction operations, the change in the fracture strength of the sample is evaluated.

Instrument characteristics

▪ The mechanical components are made of aluminium and stainless steel.

▪ Durable powder coating and anodized surface treatment

▪ THK Precision Bearings

▪ Programmable upward-counting controller with automatic shutdown function

The ventilation protection cover can prevent the operator's hands from coming into contact with the pinch points.

▪ The supply voltage may vary. It is necessary to specify this clearly when making the purchase.

▪ High-quality brushless motor
