BS EN1621-1 1621-2 Protective Material Impact Testing Machine Protective Materials Impact Tester
BS EN1621-1 1621-2 Protective Material Impact Testing Machine Protective Materials Impact Tester
Specifications
Brand Name :
Lonroy
Model Number :
LR-A075
Certification :
ISO ASTM CE
Place of Origin :
China
MOQ :
1
Price :
Negotaible
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
200
Delivery Time :
5-8 work days
Packaging Details :
wooden package
Host machine dimensions :
Length 860mm × Width 670mm × Height 2200mm
Frequency response range :
5 - 1000 Hz
Force measurement range :
0 - 60,000 N
Lifting device :
Electric lifting, with upper and lower limit positions
Description

BS EN1621-1 1621-2 Protective Material Impact Testing Machine Protective Materials Impact Tester

Instroduction

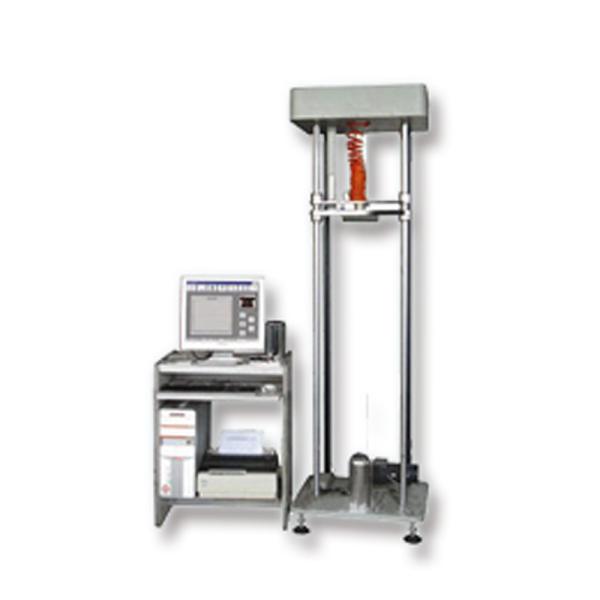

This instrument is a specialized equipment for testing protective materials, manufactured in accordance with the standards BS EN1621-1 and BS EN1621-2. It can meet the impact test items required by the standards. It adopts high-precision piezoelectric ceramic force sensors from the military industry, with extremely high resolution, fast response speed, and good repeatability. It is controlled by a computer, and the entire testing process is controlled by computer software. It automatically records the impact force values, automatically calculates the average impact force values, and can print test reports. It has the characteristics of simple operation, convenient maintenance, and high reliability.


Compliant with standards

BS EN1621-1, BS EN1621-2, GB/T 24278-2009 Motorcycle Protective Clothing

Technical Specification

Computer software functions

The computer controls the testing process, automatically displays, processes, saves the test data, and prints the test reports.

Two sets of impact boards

- One set complies with standard 1621-1 (including Appendix E of GB/T 24278-2009 Motorcycle Hand Protection Clothing)
- Another set complies with standard 1621-2

Impact mode

Directed fall

Force measurement range

0 - 60,000 N

Force sensor

Precision piezoelectric type

Frequency response range

5 - 1000 Hz

Lifting device

Electric lifting, with upper and lower limit positions

Host machine dimensions

Length 860mm × Width 670mm × Height 2200mm
