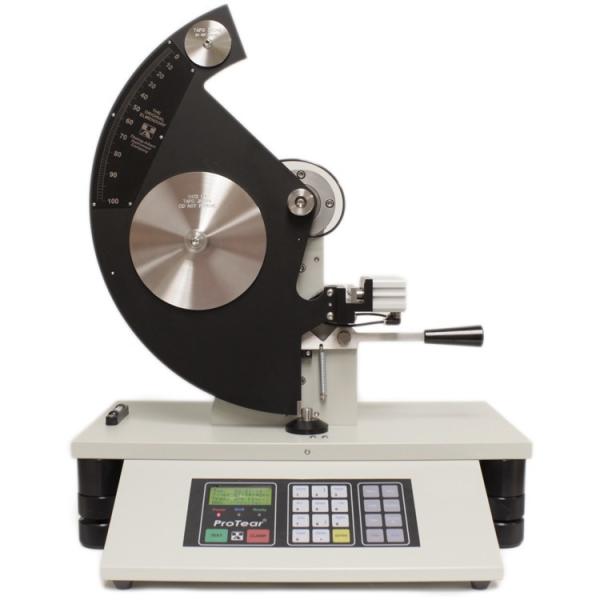

ASTM D295 DIN 53862 ISO1974 EN21974 Electronic Tear Strength Tester Mechanical Tear Testing Machine
ASTM D295 DIN 53862 ISO1974 EN21974 Electronic Tear Strength Tester Mechanical Tear Testing Machine
ASTM D295 DIN 53862 ISO1974 EN21974 Electronic Tear Strength Tester Mechanical Tear Testing Machine
ASTM D295 DIN 53862 ISO1974 EN21974 Electronic Tear Strength Tester Mechanical Tear Testing Machine
Specifications
Brand Name :
Lonroy
Model Number :
LR-A079
Certification :
ISO ASTM CE
Place of Origin :
China
MOQ :
1
Price :
Negotaible
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
200
Delivery Time :
5-8 work days
Packaging Details :
wooden package
Weight :
15.2KG
Dimensions :
483MM * 398MM * 578MM
Sample fixture :
Manual or pneumatic options available
Test accuracy :
±0.2%
Description

ASTM D295 DIN 53862 ISO1974 EN21974 Electronic Tear Strength Tester Mechanical Tear Testing Machine

Introduction

The original factory-designed and manufactured tear strength tester has a history of over 75 years. It is recognized as widely compliant with various standards and based on a first-class design. The tear strength tester can quickly and accurately detect the impact tear strength of textiles, films, sheets, paper or boards. There are three models available: mechanical tear strength tester, electric tear strength tester, and heavy-duty tear strength tester. The tear strength tester can provide strength under an impact force ranging from 400MN to 25,600MN. It can quickly and simply add weights to change the test range, and multiple drop hammer configurations can be made to meet the testing requirements of different materials.

Relevant standards:

ASTM D295,D752,D1424,D1922,D5734; TAPPI T414,T496; BS 4253,BS4468; CPPA D.9; DIN 53862,53128; ISO1974,9290; EN21974; SCAN P11

Scope of application

Used for the determination of tear strength of various woven fabrics (Elmendorf method), for testing the impact tear strength of textiles, woven fabrics, non-woven fabrics, and coated fabrics, and also for the testing of burst strength of silk, cotton fabric, various cardboard, and single-layer and multi-layer corrugated cardboard.


Technical Specification

Type and display

Mechanical type, pointer display

Test range

200, 400, 800, 1600, 3200 & 6400 grams (weight can be selected)

Test accuracy

±0.2%

Test capacity adjustment

Adding weights can quickly change the test capacity

Pendulum reset

Manual

Sample fixture

Manual or pneumatic options available

Weights and calibration weights

Optional

Dimensions

483MM * 398MM * 578MM

Weight

15.2KG
