JIS L1096 L1098 Dyeing Fabric Shrinkage Rate Testing Machine Fabrics Shrinkage Tester
JIS L1096 L1098 Dyeing Fabric Shrinkage Rate Testing Machine Fabrics Shrinkage Tester
Specifications
Brand Name :
Lonroy
Model Number :
LR-A049
Certification :
ISO ASTM CE
Place of Origin :
China
MOQ :
1
Price :
Negotaible
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
200
Delivery Time :
5-8 work days
Packaging Details :
wooden package
Power supply :
AC 220V 50/60Hz
Overall dimensions :
Approximately W460 × D460 × H720mm
Weight :
Approximately 50kg
Motor :
65W
Description

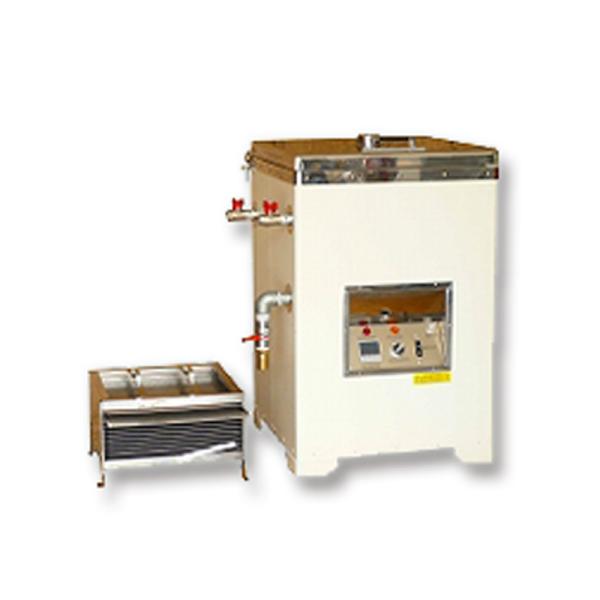

JIS L1096 L1098 Dyeing Fabric Shrinkage Rate Testing Machine Fabrics Shrinkage Tester

Introduction

This machine uses a constant temperature bath based on the "immersion method" employed in the measurement of fabric size changes.

The inner chamber is composed of an electric heater and a fan blade for stirring, which ensures uniform temperature distribution of the liquid inside the chamber.

This machine is equipped with a steel plate, which can accommodate a maximum of 12 test samples with the largest size of 300mm × 300mm at one time for processing.

The contraction indicator (20cm) and the washable red marking ink are standard accessories.


Meet with the standards

Japanese Industrial Standard JIS L 1096 (Fabric Dimension Change)

Japanese Industrial Standard JIS L 1098 (Blanket • Shrinkage Rate)

Technical Specification

Sample size

300mm × 300mm (maximum)

Sample frame

12 steel plates (steel plates: stainless steel perforated plates)

Sample frame / slot material

Stainless SUS-304

Heater

Bed heater (1KW)

Motor

65W

Temperature regulator

Digital display (adjustment accuracy: ±1℃)

Power supply

AC 220V 50/60Hz

Overall dimensions

Approximately W460 × D460 × H720mm

Weight

Approximately 50kg
