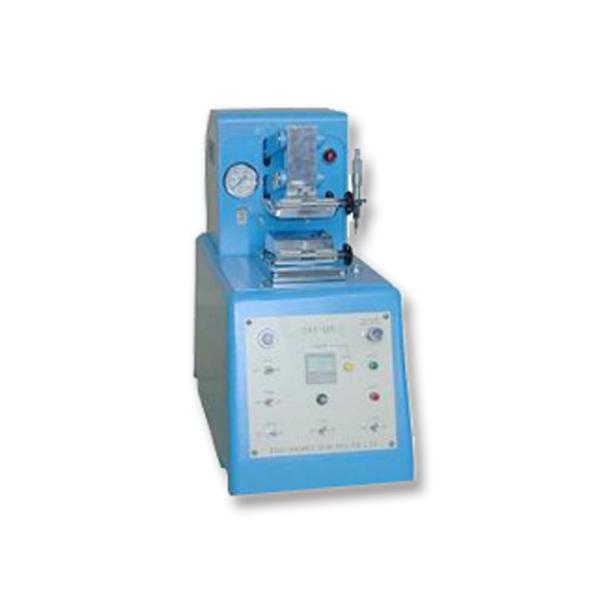

JIS L1018 ASTM D3885 D3886 Textile Wear Resistance Testing Machine Textile Abrasion Tester
JIS L1018 ASTM D3885 D3886 Textile Wear Resistance Testing Machine Textile Abrasion Tester
Specifications
Brand Name :
Lonroy
Model Number :
LR-A040
Certification :
ISO ASTM CE
Place of Origin :
China
MOQ :
1
Price :
Negotaible
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
200
Delivery Time :
5-8 work days
Packaging Details :
wooden package
Warranty :
1 Year
Power supply :
AC220V 50Hz
Shape specifications :
Approximately W300 × D630 × H560 mm
Counting shows :
Liquid crystal display
Description

JIS L1018 ASTM D3885 D3886 Textile Wear Resistance Testing Machine Textile Abrasion Tester

Strengths

This machine is a testing machine as specified in the Japanese Industrial Standard JIS L 1096 "Test Methods for General Textiles", specifically the "Test Method for Abrasion Resistance A". It is mainly used for testing and evaluating the abrasion resistance of textiles in their flat, creased, and bent states.

By assembling various instruments on the test bench, various tests such as flat wear resistance, crease wear resistance and bending wear resistance can be conducted.

<Planar Wear Resistance Test> The test piece installed on the rotating test stand is rubbed by the friction paper attached to the pressing plate with a pressurized load. The wear resistance is evaluated based on the number of friction times when the test piece is damaged.

<Bending and Wear Resistance Test> A folded test piece is placed with a bent metal sheet inside. Under the simultaneous application of compressive load and tensile load, the test piece is repeatedly rubbed. The wear resistance is evaluated based on the number of times the test piece breaks during the rubbing process.

The "crease wear resistance test" involves using a mold to create a test piece with creases. This test piece is then rubbed against the friction paper installed on a pressurized plate. The wear resistance is evaluated based on the number of times the test piece is rubbed until it is damaged.

Meet with the standards

Japanese Industrial Standard JIS L 1096 - General Test Methods for Textiles (Method for Abrasion Resistance A)

JIS L 1018 ; ASTM D3885, D3886

Technical Specification

Repetitive friction distance

25mm

Repetitive friction speed

125 ± 5 beats per minute

Test method

Planar wear resistance test, bending wear resistance test, crease wear resistance test

Counting shows

Liquid crystal display

Power supply

AC220V 50Hz

Shape specifications

Approximately W300 × D630 × H560 mm
