Far-infrared Radiation Heating Up Tester Textiles Far Infrared Radiation Temperature Rise Testing Device
Far-infrared Radiation Heating Up Tester Textiles Far Infrared Radiation Temperature Rise Testing Device
Far-infrared Radiation Heating Up Tester Textiles Far Infrared Radiation Temperature Rise Testing Device
Far-infrared Radiation Heating Up Tester Textiles Far Infrared Radiation Temperature Rise Testing Device
Specifications
Brand Name :
Lonroy
Model Number :
LR-A114
Certification :
ISO ASTM CE
Place of Origin :
China
MOQ :
1
Price :
Negotaible
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
200
Delivery Time :
5-8 work days
Packaging Details :
wooden package
Product Name :
Textiles Far Infrared Radiation Heating Up Testing Device
Power supply :
AC 220V ± 10%; 200W
Weight :
33kg
Dimensions :
Width 800mm x Depth 420mm x Height 480mm
Diameter of the perforation hole :
60mm
Radiation power :
150W
Description

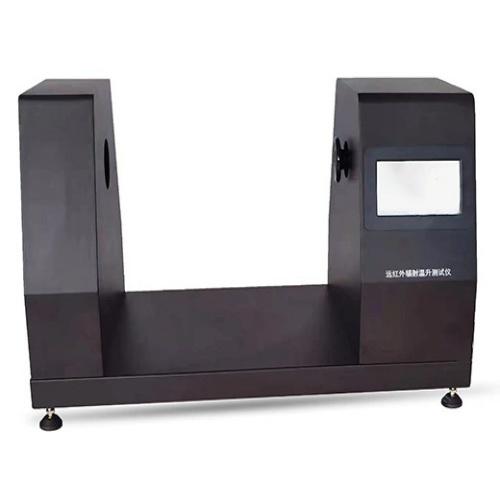

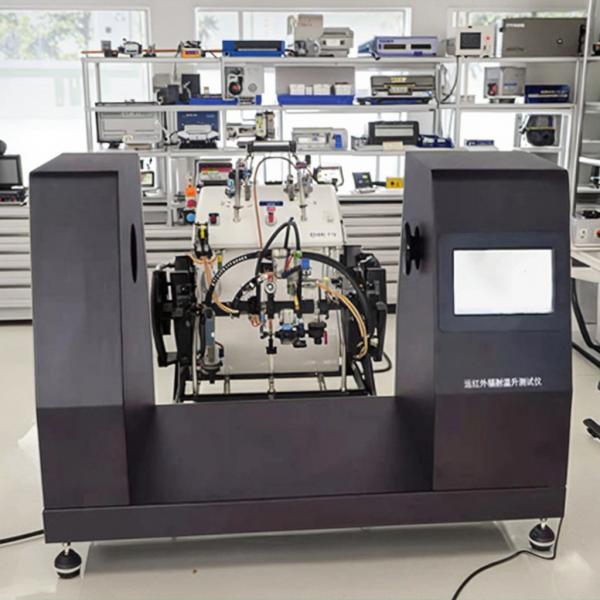

Far-infrared Radiation Heating Up Tester Textiles Far Infrared Radiation Temperature Rise Tester

Introduction

The far-infrared radiation heating-up tester for textiles is used for various types of textiles including fibers, yarns, fabrics, nonwoven fabrics and their products. It measures the far-infrared performance of textiles through temperature rise tests.


Applicable standards
GB/T 30127


Product Features

1. It adopts industrial-grade color touch screens for display and control, featuring a user-friendly interface that is simple and easy to operate, making the process of operation more convenient.
2. Utilize the automatic measurement mode. With just one click, the testing process will be automatically completed.
3. Utilizing high-precision sensors, it can respond quickly and accurately to measure the current temperature.


Technical Specification

Color touch screen

7 inches

Radiation source

Main wavelength range 5 μm to 14 μm

Radiation power

150W

Distance from the sample surface to the radiation source

500mm

Diameter of the perforation hole

60mm

Temperature sensor

The test range is from 15℃ to 50℃, the indication error is no more than 0.1℃, and the response time is no more than 1 second.

Dimensions

Width 800mm x Depth 420mm x Height 480mm

Power supply voltage

AC 220V ± 10%; 200W

Weight

33kg
