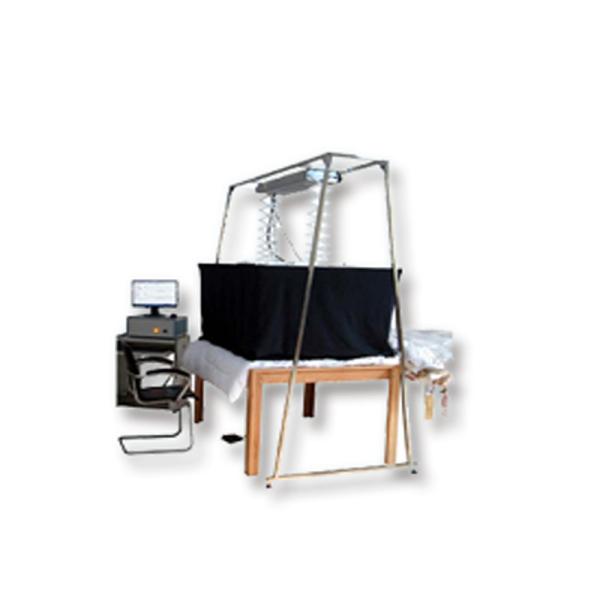

BS5335 Bedding Thermal Insulation Performance Tester ASTM D1518 F1868 Bedding Thermal Retention Tester
BS5335 Bedding Thermal Insulation Performance Tester ASTM D1518 F1868 Bedding Thermal Retention Tester
Specifications
Brand Name :
Lonroy
Model Number :
LR-A132
Certification :
ISO ASTM CE
Place of Origin :
China
MOQ :
1
Price :
Negotaible
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
200
Delivery Time :
5-8 work days
Packaging Details :
Wooden package
Time display resolution :
1 second (s)
Test board size :
1000mm × 600mm
Operating temperature range :
0℃ to 30℃
Temperature display resolution :
0.01℃
Stable time setting range :
0s to 86400s (24 hours)
Test time setting range :
10 seconds to 86,400 seconds (24 hours)
Description

BS5335 Bedding Thermal Insulation Performance Tester ASTM D1518 F1868 Bedding Thermal Retention Tester

Applicable standards

BS5335-2-2006 Velvet - Part 2: Determination of heat resistance of quilts filled with feathers and/or down

Test Method for Thermal Conductivity of Textile Materials - ASTM D1518-1985 (2003)

Test Method for Heat and Evaporation Resistance of Clothing Materials Using a Sweating Hot Plate - ASTM F1868-2009



Technical Specification

The temperature of the test plate after stabilization

33℃ ± 0.05℃, automatically follows

Stable time setting range

0s to 86400s (24 hours)

Test time setting range

10 seconds to 86,400 seconds (24 hours)

Preheating time setting range

0s to 86400s (24 hours)

Stable time setting range

10 seconds to 86,400 seconds (24 hours)

Temperature fluctuation setting range

0.05℃ to 20℃

Operating temperature range

0℃ to 30℃

Number of trials

1 to 9 times

Temperature display resolution

0.01℃

Time display resolution

1 second (s)

Technical parameters of the heating plate

Test plate 75W, protection plate 400W, bottom plate 300W

Test board size

1000mm × 600mm

Test bench dimensions

1515mm × 1115mm × 772mm

The external dimensions of the control box

470mm × 500mm × 210mm

Environmental cover frame dimensions

2000mm × 1100mm × 2300mm
