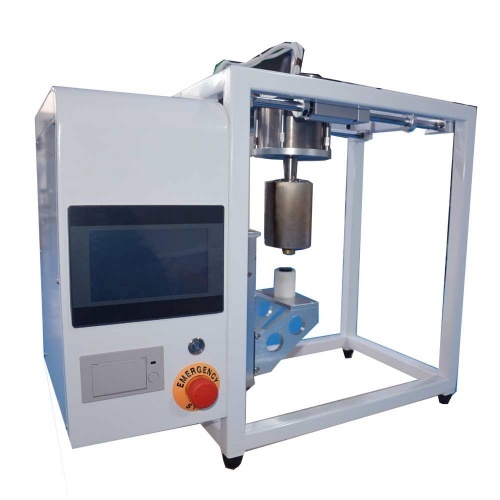

EN 12477 ISO 11612 Contact Heat Conduction Tester High Temperature Resistence Contact Heat Testing Machine
EN 12477 ISO 11612 Contact Heat Conduction Tester High Temperature Resistence Contact Heat Testing Machine
Specifications
Brand Name :
Lonroy
Model Number :
LR-A130
Certification :
ISO ASTM CE
Place of Origin :
China
MOQ :
1
Price :
Negotaible
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
200
Delivery Time :
5-8 work days
Packaging Details :
wooden package
Weight :
30kg
Dimensions :
45cm × 50cm × 65cm
Power Supply :
220V AC, 50/60Hz
Timer :
Display accuracy of 0.1 seconds
Contact area :
25.2 ± 0.05 mm²
Heating temperature :
Room temperature - 500℃
Description

EN 12477 ISO 11612 Contact Heat Conduction Tester High Temperature Resistence Contact Heat Testing Machine

Introduction

The contact heat conduction tester is mainly used to test the ability of fire protection suits, heat protection gloves, or similar fire protection materials to resist high-temperature contact heat. By testing the material when it comes into contact with a heated body at a certain pressure and at a certain temperature, the time it takes for the material's temperature to rise by 10°C is recorded. Based on this critical time, the ability of the material to resist high-temperature contact heat is determined.

Applicable Standards

AQ 6103, EN 702, EN 12477, EN 407, ISO 12127, GB 38453, GB/T 38306, ISO 11612

Technical Characteristics

1. The touchscreen control interface is easy to operate.

2. High-temperature resistant heating element, capable of reaching a maximum temperature of 500℃.

3. The heating body can move parallelly along the fixed track, which is convenient for sample loading and ensures the safety of the operators.

4. The servo motor controls the height of the calorimeter, and the entire testing process is completed automatically.

5. One-click testing. The touch screen displays and records the initial temperature of the sample, the real-time test temperature, and the critical time when the sample rises by 10°C.


Technical Specification

Contact force

Heavyweight blocks are placed above the heating body to provide 49N

Contact area

25.2 ± 0.05 mm²

Heating temperature

Room temperature - 500℃

Calorimeter area and temperature measurement resolution

Φ25 millimeters, temperature measurement resolution ±0.1℃

Contact method

The sample is brought into contact with the heating body by ascending with a calorimeter. The movement speed of the calorimeter is 5mm/s, and the control is precise.

Timer

Display accuracy of 0.1 seconds

Power Supply

220V AC, 50/60Hz

Dimensions

45cm × 50cm × 65cm

Weight

30kg
