Fabrics Negative Ion Generation Quantity Tester Textiles Negative Ion Emission Tester
Fabrics Negative Ion Generation Quantity Tester Textiles Negative Ion Emission Tester
Specifications
Brand Name :
Lonroy
Model Number :
LR-A136
Certification :
ISO ASTM CE
Place of Origin :
China
MOQ :
1
Price :
Negotaible
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
200
Delivery Time :
5-8 work days
Packaging Details :
wooden package
Power supply :
AC 220V 50Hz
Dimensions :
600mm * 450mm * 550mm
Weight :
55 kilograms
Pressure :
(7.5 ± 0.2) N
Disk travel speed :
(93 ± 1) r/min / adjustable
Resolution :
10 per cubic centimeter
Description

Fabrics Negative Ion Generation Quantity Tester Textiles Negative Ion Emission Tester

Introduction

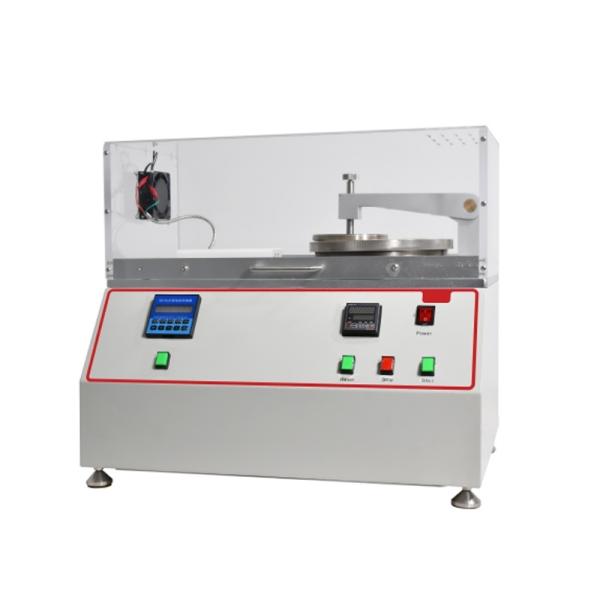

The fabric negative ion generation quantity tester is used in a test chamber of a certain volume. The sample is installed on the upper and lower friction discs. Under specified conditions, friction is carried out. The number of negative ions generated in the unit volume space when the sample and itself mutually friction is measured by an air ion measuring instrument, and the curve of the sample's negative ion generation quantity changing with time is recorded.

Relevant standards

GB/T 30128-2013 "Testing and Evaluation of Negative Ion Generation Quantity in Textiles"

Technical Characteristics

1. Original imported negative ion concentration tester.

2. Computer-controlled, capable of automatically completing the test through programming.

3. Automatic evaluation software, assisting in evaluating test results.


Technical Specification

Control mode

Automatic

Collection method

Capacitive inhalation method is used to collect air ions, and ions with a migration rate greater than 0.15 (cm²/v·s) are collected

Measurement range

Range 1: 0 - 20,000 units/cm³; Range 2: 0 - 200,000 per cm³; Range 3: 0 - 2,000,000 per cm³

Resolution

10 per cubic centimeter

Test box dimensions

(300 ± 2) mm * (560 ± 2) mm * (210 ± 2) mm

Disk travel speed

(93 ± 1) r/min / adjustable

Lower friction disc

Diameter is (200 ± 0.5) mm

Upper static friction disc

Diameter is (100 ± 0.5) mm

Pressure

(7.5 ± 0.2) N

Weight

55 kilograms

Power Supply

220V 50Hz

Overall dimensions

600mm * 450mm * 550mm
