Fire Resistance Material Malleability Tester Refractory Plasticity Determinator
Fire Resistance Material Malleability Tester Refractory Plasticity Determinator
Fire Resistance Material Malleability Tester Refractory Plasticity Determinator
Fire Resistance Material Malleability Tester Refractory Plasticity Determinator
Specifications
Brand Name :
Lonroy
Model Number :
LRKS-A
Certification :
Includes Calibration Certification
Place of Origin :
China
MOQ :
1
Price :
Negotaible
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
200
Delivery Time :
5-8 work days
Packaging Details :
wooden package
Sample Size :
Ø50 × 50 mm cylinder
Vertical Shaft Diameter :
20 mm
Moving Parts Mass :
2.0 kg
Hammer Drop Height :
50 mm
Warranty :
1 Year
Description

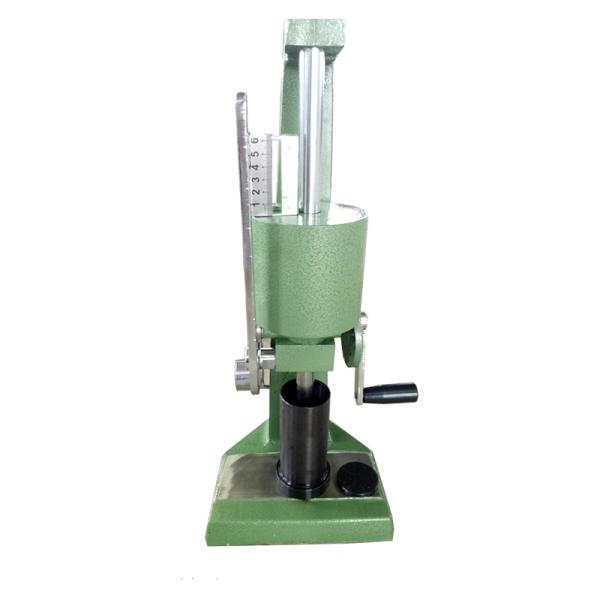

Fire Resistance Material Malleability Tester Refractory Plasticity Determinator

1.Description:

This instrument complies with the standard YB/T5119-1993 "Test Method for Plasticity Index of Clayey and High-Aluminum Refractory Materials", and is suitable for the detection of the plasticity of refractory plastic materials.

2.Technical Parameter

Parameter Specification
Sample Size Ø50 × 50 mm cylinder
Vertical Shaft Diameter 20 mm
Press Head Diameter (Shaft Bottom) 50 mm
Moving Parts Mass 2.0 kg
Hammer Drop Height 50 mm
Hammer External Diameter Approx. 100 mm
Hammer Height Approx. 105 mm
Hammer Mass 6.5 mm (Note: Original unit "mm" likely incorrect; typically mass units are kg/g)
