LRH Series ISO 8302 Multifunctional Fast Thermal Conductivity Tester
LRH Series ISO 8302 Multifunctional Fast Thermal Conductivity Tester
LRH Series ISO 8302 Multifunctional Fast Thermal Conductivity Tester
LRH Series ISO 8302 Multifunctional Fast Thermal Conductivity Tester
LRH Series ISO 8302 Multifunctional Fast Thermal Conductivity Tester
LRH Series ISO 8302 Multifunctional Fast Thermal Conductivity Tester
Specifications
Brand Name :
Lonroy
Model Number :
LRH Series
Certification :
Includes Calibration Certification
Place of Origin :
China
MOQ :
1
Price :
Negotaible
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
200
Delivery Time :
5-8 work days
Packaging Details :
wooden package
Power Supply :
220V / 50Hz; Power ≤ 2kW
Measurement Accuracy :
≤ ±3%
Repeatability :
≤ ±1%
Voltage Range :
0-30V
Warranty :
1 Year
Description

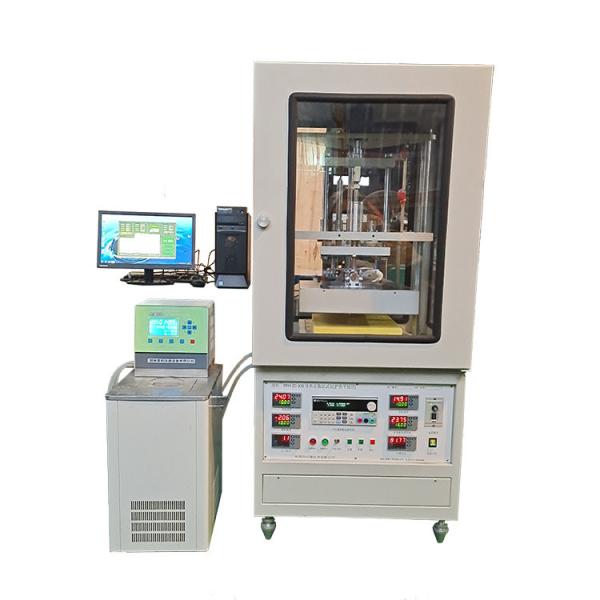

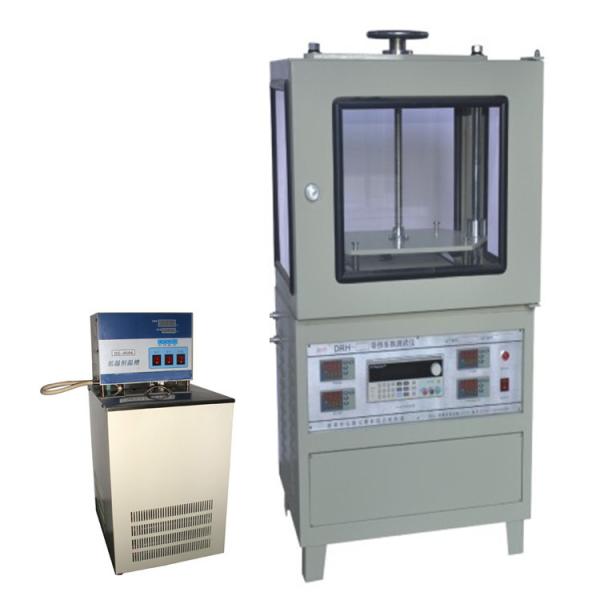

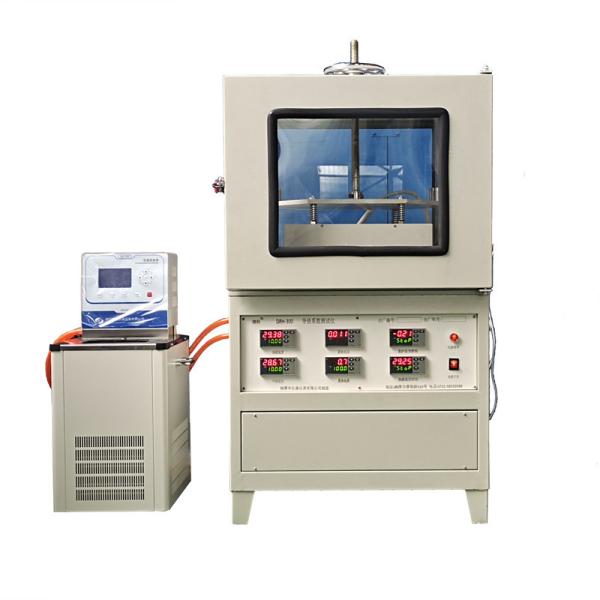

LRH Series ISO 8302 Multifunctional Fast Thermal Conductivity Tester

1.Description:
This instrument is a thermal conductivity tester for thermal insulation materials developed from our LRS-2 water flow plate method thermal conductivity tester. Compared with LRS-2, it has improved resolution and automation, shortened test time, easier maintenance, and more reliable instrument performance. This instrument uses the protective heat flow meter method to detect the thermal conductivity of thermal insulation materials at high temperatures. It is suitable for testing the thermal conductivity of refractory insulation, ceramic fibers, felt, textiles, boards, bricks and other materials at different temperatures. It is widely used in material analysis and testing in colleges and universities, scientific research institutions, quality inspection departments and production plants.
2.Standard
GB/10294-2008, ISO8302:1991 (Determination of steady-state thermal resistance and related properties of thermal insulating materials - Guarded hot plate method)
GB/T 3392-1982 "Test Method for Thermal Conductivity of Plastics - Guarded Heat Plate Method"
GB/T 3139 (Test method for thermal conductivity of fiber-reinforced plastics) (Test method for thermal conductivity of fiberglass reinforced plastics), etc.

3.Technical Parameter.

Thermal Conductivity Range 0.0010~3.0000 W/(m·K), displayed with 4 decimal places
Measurement Accuracy ≤ ±3%
Repeatability ≤ ±1%
Hot Surface Temperature
- Range Room Temperature ~ 95°C
- Resolution 0.01°C
Cold Surface Temperature
- Range (Standard) 0 ~ 60°C
- Resolution 0.01°C
- Control Method Thermostatic Water Bath
Optional Low-Temperature Testing Custom ranges: -20°C~60°C, -30°C~60°C, or -40°C~60°C (additional cost applies)
Main Power Supply 220V / 50Hz; Power ≤ 2kW
Calorimetric Power Supply
- Voltage Range & Resolution 0-30V, Resolution: 0.0001V
- Current Range & Resolution 0-3A, Resolution: 0.0001A
Automation & Reporting Computer-connected automatic testing, data processing, report generation, and printing
Required Sample Dimensions
Model Dimensions (mm)
LRH-III 200 × 200 × (5-20)
LRH-300 / LRH-ZD-300 300 × 300 × (10-50)
LRH-400 / LRH-ZD-400 400 × 400 × (10-80)
LRH-600 / LRH-ZD-600 600 × 600 × (10-100)
