Specifications
Brand Name :
Lonroy
Model Number :
LR-Q027
Certification :
CE ISO ASTM
Place of Origin :
China
MOQ :
1
Price :
Negotiate
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
200 PCS
Delivery Time :
5-8 Workdays
Packaging Details :
Wooden package
Maximum Test Load :
0–60 kg
Vibration Direction :
Up/Down + Left/Right / Front/Back
Table Size :
500×500 / 750×750 / 1000×1000 / 1500×1500 mm
Amplitude :
0–5 mm
Frequency Sweep :
1–600 Hz
Functions :
FM / Programmable / Time Control
Description

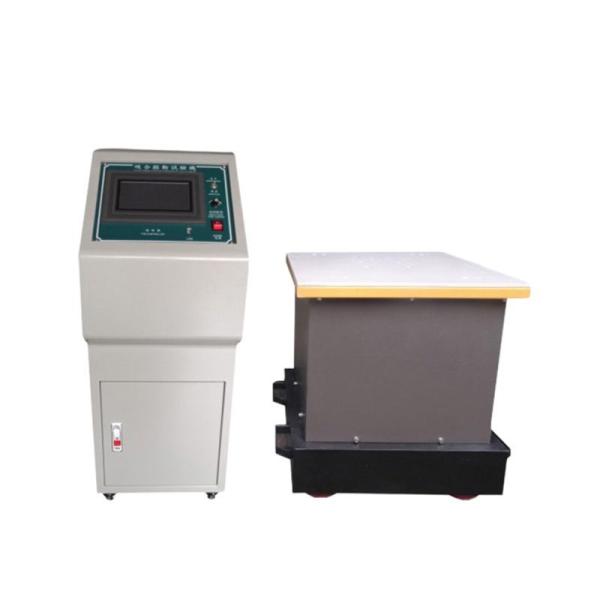

LR-Q027 Touchscreen Vertical Horizontal Vibration Testing Machine Axis Vibration Testing Apparatus

1. Product Description

Electromagnetic vibration tables are widely used in industries such as national defense, aviation, communication, electronics, automobiles, home appliances, etc. This type of equipment is used to detect early faults, simulate actual working conditions for assessment and structural strength tests. It has a wide range of applications, broad applicability, significant and reliable test results. It supports sine wave, frequency modulation, sweep frequency, programmable, frequency doubling, logarithmic, and time control.

2. Specification

Parameter Category

Technical Specification

Maximum Test Load

0–60 kg

Vibration Direction

Up/Down + Left/Right / Front/Back

Table Size

500×500 / 750×750 / 1000×1000 / 1500×1500 mm

Amplitude

0–5 mm

Frequency Sweep

1–600 Hz

Max. Acceleration

10G

Functions

FM / Programmable / Time Control

Precision

Display: 0.01Hz / Accuracy: ±0.1Hz

Programmable Function

1–600 Hz, 1–8 segments

Octave Function

0.01Hz step

Logarithmic Function

0.01Hz step

Vibration Waveform

Sine wave

Time Control

Arbitrary setting (seconds)

Power

0.75 kW

Power Supply

220V 50Hz
