Vibration Simulation Test Machine Electromagnetic Three-Axis Vibration Testing Machine
Vibration Simulation Test Machine Electromagnetic Three-Axis Vibration Testing Machine
Specifications
Brand Name :
Lonroy
Model Number :
LR-Q029
Certification :
CE ISO ASTM
Place of Origin :
China
MOQ :
1
Price :
Negotiate
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
200 PCS
Delivery Time :
5-8 Workdays
Packaging Details :
Wooden package
Max. Test Load :
0–60 kg
Vibration Direction :
Vertical (Y-axis)
Amplitude :
0–5 mm (Random, frequency-dependent)
Frequency Sweep :
1–600 Hz (True bidirectional sweep; 1–3000 Hz customizable)
Max. Acceleration :
10G
Functions :
FM / Programmable / Time Control
Description

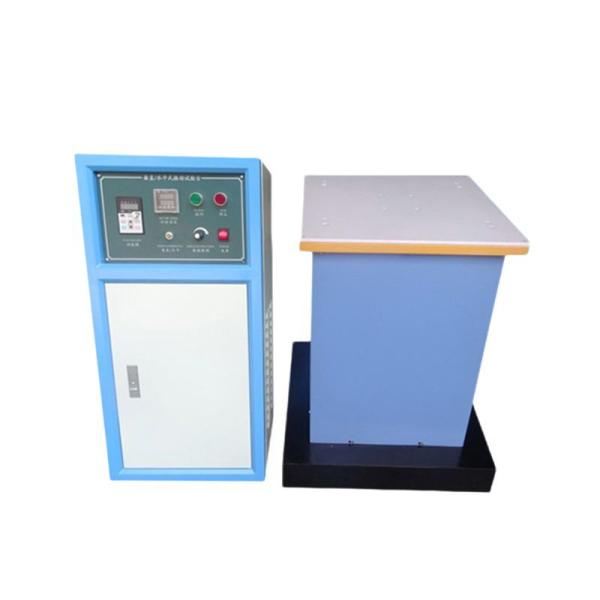

LR-Q029 Vibration Simulation Test Machine Electromagnetic Three-Axis Vibration Testing Machine

1. Product Description

The electromagnetic vibration table is widely used in industries such as national defense, aviation, communications, electronics, automobiles, home appliances, etc. This type of equipment is used to detect early faults, simulate actual working conditions for assessment and structural strength tests. It has a wide range of product applications, a broad applicable scope, significant test results, and is reliable. It supports sine wave, frequency modulation, sweep frequency, programmable, frequency doubling, logarithmic, and time control.

2. Specification

Parameter

Specification

Max. Test Load

0–60 kg

Vibration Direction

Vertical (Y-axis)

Table Size

500×500 mm / 750×750 mm / 1000×1000 mm / 1500×1500 mm (Select per product size)

Amplitude

0–5 mm (Random, frequency-dependent)

Frequency Sweep

1–600 Hz (True bidirectional sweep; 1–3000 Hz customizable)

Max. Acceleration

10G

Functions

FM / Programmable / Time Control

Precision

Display: 0.01Hz / Accuracy: 0.1Hz

Programmable Function

1–600 Hz, 1–8 segments (Freq/time settable per segment, cyclable)

Octave Function

0.01Hz step: ①Low→High ②High→Low③Low→High→Low (Cyclable)

Logarithmic Function

0.01Hz step: ①Down→Up ②Up→Down③Down→Up→Down (3 modes, cyclable)

Vibration Waveform

Sine wave (Half-wave / Full-wave)

Time Control

Arbitrary setting (seconds)

Power

0.75 kW

Power Supply

220V 50Hz

Net Weight

Approximately 100 kg
