Electronic Flammability Tester Voltage Power Load Tester IEC 60884
Electronic Flammability Tester Voltage Power Load Tester IEC 60884
Specifications
Model Number :
LR-K010
Price :
negotiable
Place of Origin :
China
Brand Name :
Lonroy
Packaging Details :
Wooden package
MOQ :
1
Delivery Time :
5-8 work days
Supply Ability :
200 pieces
Usage :
To test the flammability of materials
System :
Computer control
Overseas Training :
Provide
Matrial :
Stainless steel
Process :
fabrication and assembly
Power Source :
AC or DC
Standard :
IEC60884
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Description

IEC 60884 Electronic Voltage Power Load Tester

1. Test Standard
IEC 60884-1, GB2099.1, GB16915, GB15092, UL1054.

2. Use

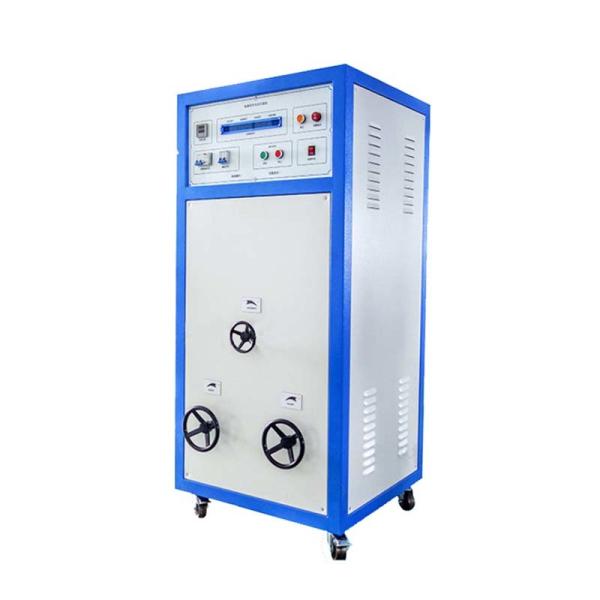

This load cabinet is designed for the electrical accessories' breaking capacity and normal operation, etc., and it can be used to simulate the electrical life and breaking capacity test of the electrical products in the live state. In addition, the load current and surge current of different specifications can be customized according to customer requirements.This load cabinet is a cabinet structure, the box body USES the iron plate pressure spraying treatment, the bottom of the box has four wheels, easy to move.The upper front of the box body is the control panel, which is made of aluminum plate etching process and sandblasting and is durable.There are instrument power switch, intelligent digital display voltmeter, ammeter, power meter, power factor meter, energizing counter, current output button, current stop button, alarm, etc.Inside the box is a combination of inductive resistance piece, strong wind cooling mechanism, voltage regulation system, high-power reactor, various electrical control components, control circuit board and output wiring, etc.


3. Technical Specifications

Load current 3 ~ 30A (or customized according to customer requirements) continuously adjustable, digital display
Load voltage 5 ~ 300V continuously adjustable, digital display
Power factor 0.3 ~ 0.999 can be adjusted continuously and displayed numerically
Counter number range of pass and power off cycle 1 ~ 999999 preset

Power supply AC 220V / 50Hz
Number of work stations 1 work station
