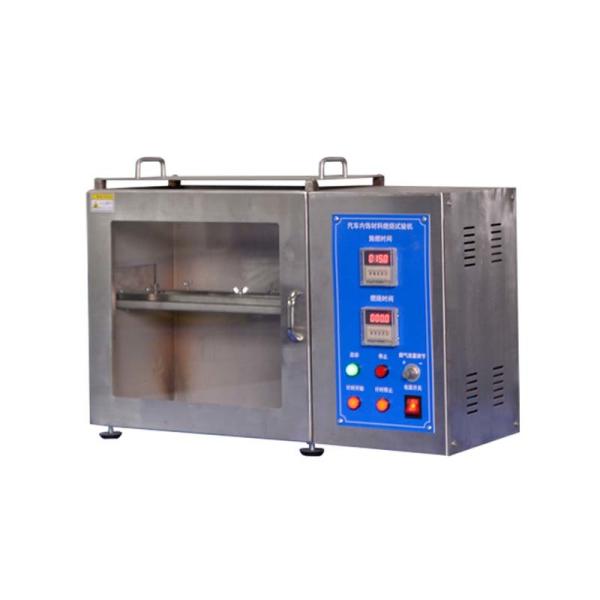

Automotive Interior Materials Horizontal Burning Chamber 90° ISO 3795
Automotive Interior Materials Horizontal Burning Chamber 90° ISO 3795
Specifications
Model Number :
LR-K012
Price :
negotiable
Place of Origin :
China
Brand Name :
Lonroy
Packaging Details :
Wooden package
MOQ :
1
Delivery Time :
5-8 work days
Supply Ability :
200 pieces
Usage :
fire testing
Warranty :
12 months
Paint :
Standard or custom
Power Source :
AC
System :
Computer control
Application :
Fire-resistace impact test
Power Supply :
220V, 50Hz
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Description

ISO 3795 Automotive Interior Materials Buring Chamber 90°

1. Test Standard
GB8410-2006, ISO 3795, FMVSS 302, DIN 75200, SAE J369, ASTM D5132, JIS D 1201, BSAU 16.....

2. Technical description
This Buring testing machine is suitable for the automobile interior material horizontal combustion characteristic this machine combustion box is made of stainless steel, the appearance is beautiful, withstands the smoke, the gas corrosion, and the control system automation degree is high, has the automatic ignition, the automatic air supply, the automatic timing, the automatic end test and so on function, the observation record is convenient, the use is stable reliable.


3. Basic specifications

box size 385 x 204 x 360mm
flame time 0 ~ 99 minutes and 99 seconds can be set
afterflame time 0 ~ 99 minutes and 99 seconds can be set
combustion Angle 90 ° (that is, 0 °)
size parameters of the burner Ø 9.5 mm inner diameter nozzle, nozzle effective length is 100 mm, with air conditioning holes
flame height it can be adjusted from 20mm to 100mm according to standard requirements
thermometer 150ºC, resolution: 1ºC
steel ruler Length: 500mm; accuracy: 1mm
combustion gas high purity liquefied gas
product features this testing machine is composed of control box, combustion box body, combustion lamp, electromagnetic valve, a complete set of high pressure igniter, thermometer, signal control line and sample upper and lower bracket and 500mm/1mm steel ruler.
Power supply AC 220V / 50Hz
