Horizontal Vertical UL94 Flammability Test Equipment ISO 9772
Horizontal Vertical UL94 Flammability Test Equipment ISO 9772
Specifications
Model Number :
LR-K001
Price :
negotiable
Place of Origin :
China
Brand Name :
Lonroy
Certification :
CE ISO ASTM
MOQ :
1
Packaging Details :
Wooden package
Delivery Time :
5-8 work days
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
200 pieces
Power supply :
AC 220V, 50Hz
Machine Size :
1150*650*1250mm
Weight :
135KG
Flow meter :
Adopt 105ml/min standard
Description

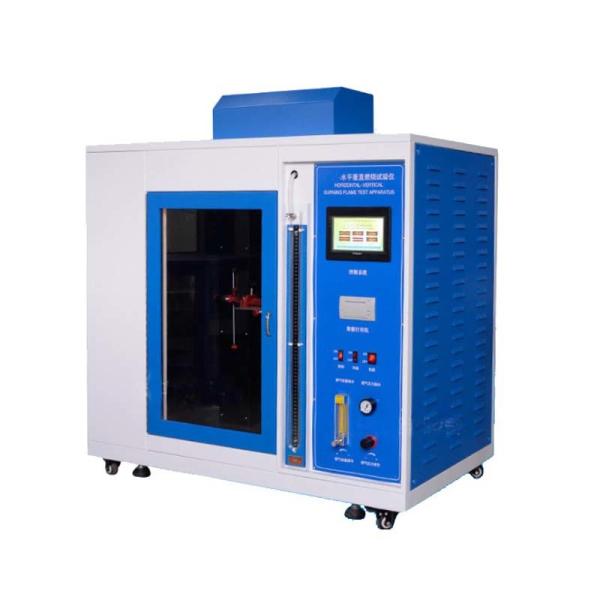

ISO 9772 Horizontal Vertical Flammability Tester
1. Product introduction
This tester is applicable to test and assess the burning characteristics of plastic material is according to the American UL94 standard equipment and instruments parts with plastic material flammability test of relative clauses specified in the design and manufacturing, plastic parts of equipment and utensils horizontal, vertical flammability test, and equipped with gas flowmeter, adjust the flame size, adopts motor driven method, simple and safe operation. This instrument can be used to assess the flammability of materials or foam plastics such as V- 0, v-1, v-2, HB, 5V, HF- 1, HF- 2, HBF.

2. Test standard
UL94 fire test
GBT2408-2008: determination of plastic combustion performance and vertical method
IEC 60695-11-10 fire prevention test


3. Technical parameters

Contents ≥ 0.5 cubic meter, glass observation door
Timer the imported timer is adjustable within the range of 0 ~ 99 minutes, with a precision of plus or minus 0.1 seconds. The combustion time can be set and the combustion duration can be recorded
Casting time 0 ~ 99 minutes 99 seconds can be set
Residual flame time 0 ~ 99 minutes 99 seconds can be set
Afterburn time 0 ~ 99 minutes 99 seconds can be set
Test gas more than 98% methane /37MJ/m3 natural gas (gas also available)
Burning Angle 20 °, 45 °, 90 ° (0 °) is adjustable
Size parameters of the burners are imported lamp itself, nozzle Ø 9.5±0.3 mm, inner diameter nozzle effective length to 100 ± 10 mm, have air conditioning
Flame height the standard requirement can be adjusted from 20mm to 175mm
Flow meter adopt 105ml/min standard
Product features other configurations include lighting fixtures, exhaust gas installations, gas flow regulating valves, gas pressure gauges, gas pressure regulating valves, gas flow meters, gas u-type pressure gauges and sample fixtures
Power supply AC 220V, 50Hz
Machine Size 1150*650*1250mm
Weight 135KG
Horizontal Vertical UL94 Flammability Test Equipment ISO 9772Horizontal Vertical UL94 Flammability Test Equipment ISO 9772Horizontal Vertical UL94 Flammability Test Equipment ISO 9772Horizontal Vertical UL94 Flammability Test Equipment ISO 9772
