Porous Ceramic Compressive Strength Tester Ceramic Compression Test Equipment
Porous Ceramic Compressive Strength Tester Ceramic Compression Test Equipment
Porous Ceramic Compressive Strength Tester Ceramic Compression Test Equipment
Porous Ceramic Compressive Strength Tester Ceramic Compression Test Equipment
Specifications
Brand Name :
Lonroy
Model Number :
LRDY
Certification :
Includes Calibration Certification
Place of Origin :
China
MOQ :
1
Price :
Negotaible
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
200
Delivery Time :
5-8 work days
Packaging Details :
Wooden package
Voltage :
220V/380V
Maximum Load :
10000, 20000, 50000 (N)
Loading Rate :
50 - 7 kN/min
Platen Diameter :
50 mm
Warranty :
1 Year
Description

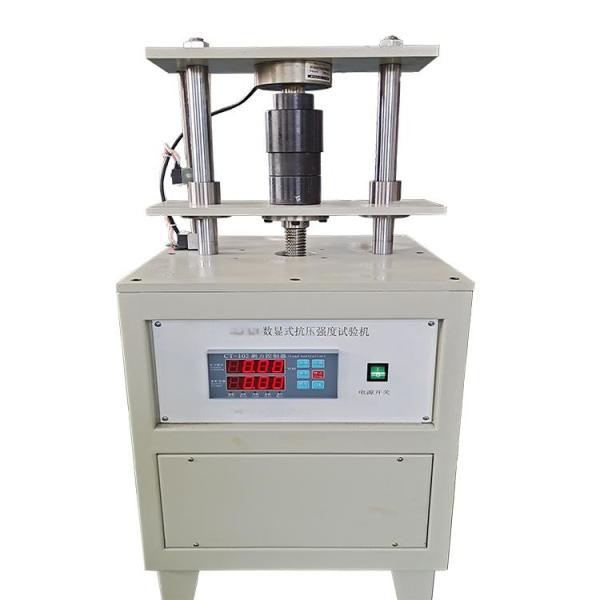

LRDY Digital Display Porous Ceramic Compressive Strength Testing Instrument Ceramic Compression Tester

1.Description:

This instrument complies with the "GB-T 8489-2006 Fine Ceramics Compressive Strength Test Method" and "1964-1996 Porous Ceramics Compressive Strength Test Method". It is suitable for the determination of the compressive strength of high-strength engineering ceramics and high-strength functional ceramics in mechanical components and structural materials at room temperature. It is also applicable for the compressive strength tests of non-metallic materials such as glass, refractory materials, and insulation materials.

2.Technical Parameter

Parameter Specification
Maximum Load 10000, 20000, 50000 (N) (selectable among these or other specifications)
Loading Rate 50 - 7 kN/min (adjustable)
Platen Diameter 50 mm (other sizes customizable as per customer requirements)
Data Processing Microcomputer-controlled, accuracy ±0.5% FS
Voltage 220V (for 50,000N and below); 380V (for specifications above 50,000N)
Pressure Display Digital pressure display with peak hold function
