Touch Screen Ceramic Tile Testing Machine Intelligent Friction Coefficient Tester
Touch Screen Ceramic Tile Testing Machine Intelligent Friction Coefficient Tester
Touch Screen Ceramic Tile Testing Machine Intelligent Friction Coefficient Tester
Touch Screen Ceramic Tile Testing Machine Intelligent Friction Coefficient Tester
Specifications
Brand Name :
Lonroy
Model Number :
LRMY
Certification :
Includes Calibration Certification
Place of Origin :
China
MOQ :
1
Price :
Negotaible
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
200
Delivery Time :
5-8 work days
Packaging Details :
wooden package
Power Supply :
220 V
Power Rating :
4W
Heel Component Force :
17.2N
Calibration Weights :
4.5KG/50N
Force Measurement Range :
0-20KG
Warranty :
1 Year
Description

LRMY Ceramic Tile Friction Coefficient Testing Machine Intelligent Friction Coefficient Tester

1.Description:

This instrument is composed of a LRMY intelligent touch screen force control device and high-precision tension sensors to form a force measurement system. It features high force measurement accuracy, stable performance, automatic display of test results, and the ability to display the tension and friction coefficient values in a cyclic manner. The instrument complies with the test method for static friction coefficient in Appendix A of GB/T 37798-2019 "Evaluation of Anti-Slip Grades for Ceramic Tiles", the determination of friction coefficient in Appendix M of GB/T 4100-2015 "Ceramic Tiles", and can be adjusted with weights to meet the requirements of JC/T 1050-2007 "Classification and Test Methods for Anti-Slip Performance of Ground Stone". It can be tested in both dry and wet conditions and is an ideal device for measuring the friction coefficient of ceramic floor tiles.
2.Working Principle
A horizontal pulling force is applied to the measured object through a manual or electric force application mechanism. The pressure sensor generates an electrical signal, which is sent to the LRMY intelligent touch screen force control instrument for data processing and to display the test results.

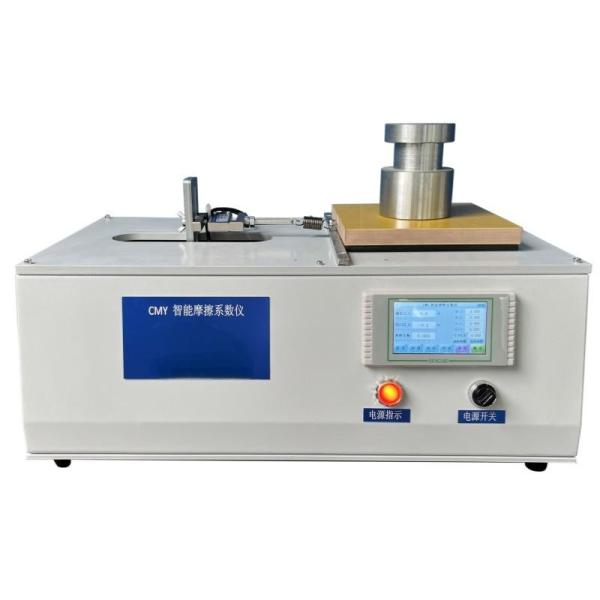

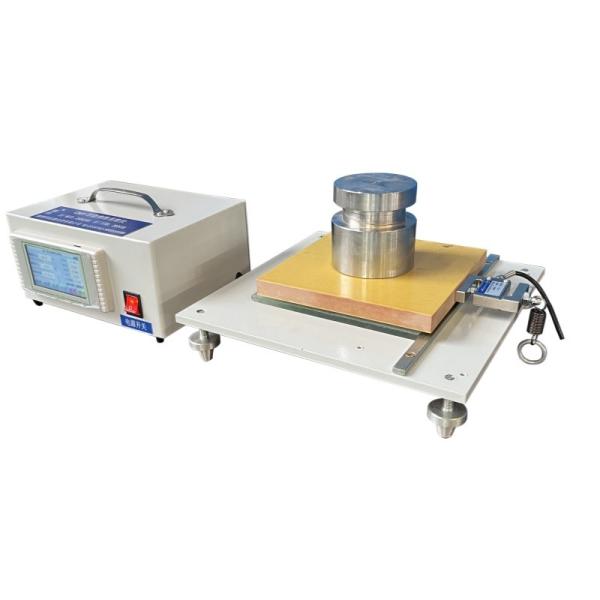

3.Equipment Structure:
This instrument is composed of a LRMY intelligent touch-screen force control device, a manual or electric force application mechanism, a pressure sensor, and a working platform, etc.

4.Technical Parameter

Parameter Specification
Force Measurement Range 0-20 kg
Force Measurement Accuracy 0.5%
Calibration Weights • 4.5 kg (friction coefficient test)
• 50 N (slip resistance test)
Heel Component Force 17.2 N
Power Rating 4 W
Power Supply 220 V
Force Application Method Manual or electric uniform force application (selectable configuration)
