High Temperature Creep Testing Machine Compressive Creep Rate Analyzer
High Temperature Creep Testing Machine Compressive Creep Rate Analyzer
High Temperature Creep Testing Machine Compressive Creep Rate Analyzer
High Temperature Creep Testing Machine Compressive Creep Rate Analyzer
Specifications
Brand Name :
Lonroy
Model Number :
LRHY
Certification :
Includes Calibration Certification
Place of Origin :
China
MOQ :
1
Price :
Negotaible
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
200
Delivery Time :
5-8 work days
Packaging Details :
wooden package
Power Supply :
380V AC, 3kW
Sample Size :
Ø50 × 50 mm
Sample Load Pressure :
0.2MPa
Max. Heating Temperature :
1650°C
Warranty :
1 Year
Description

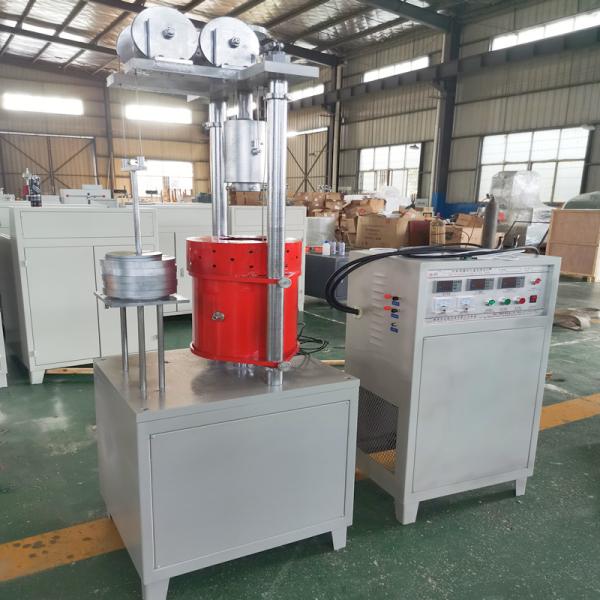

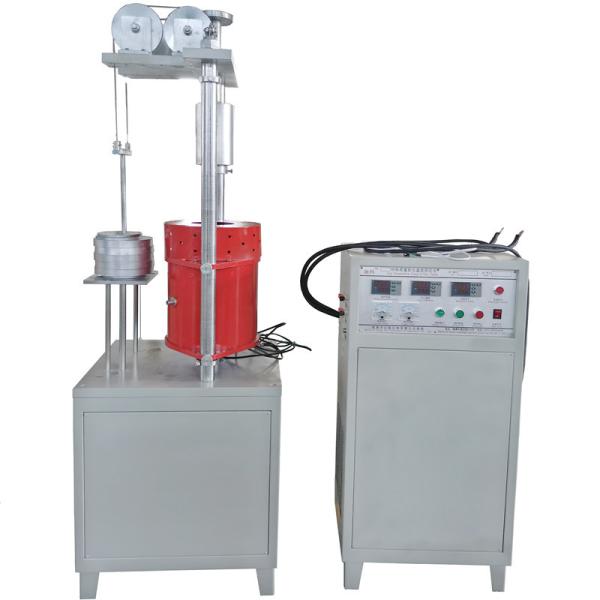

LRHY High Temperature Creep Testing Instrument Elevated Temperature Compressive Creep Rate Analyzer

1.Description:

This instrument is used to test the resistance of refractory materials to the high-temperature load softening effect, and it is an important indicator for testing the high-temperature mechanical properties of refractory materials. It complies with the national standards GB/T5073-2005 "Test Method for Creep of Refractory Materials under Pressure" and GB/T5989-2008 "Test Method for Softening Temperature of Refractory Materials under Load", and it can conduct automatic computer testing, data processing, and automatically generate temperature and deformation curve graphs for saving.

2.Technical Parameter

Parameter Item Specification
Max. Heating Temperature 1650°C
Temperature Control ±1°C accuracy, microprocessor-programmable
Deformation Measurement Error ≤0.01mm
Sample Size Ø50 × 50 mm
Sample Load Pressure 0.2MPa
Power Supply 380V AC, 3kW
