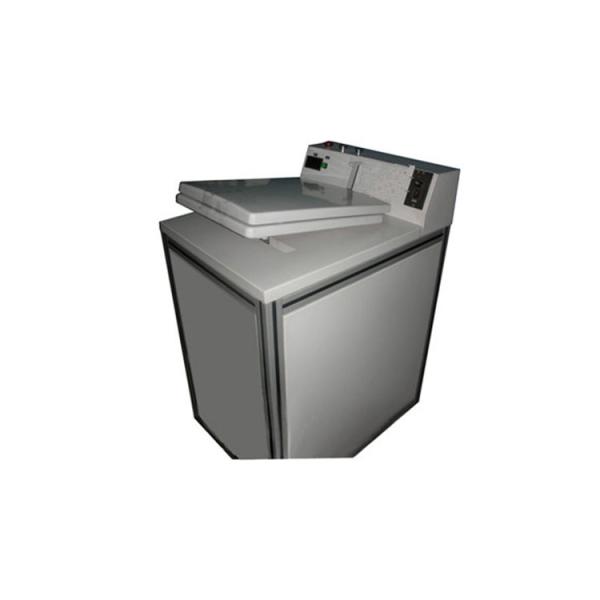

LRYJ-II 250W Swing Tester Machine Toilet Seat Durability Test Machine
LRYJ-II 250W Swing Tester Machine Toilet Seat Durability Test Machine
Specifications
Brand Name :
Lonroy
Model Number :
LRYJ-II
Certification :
Includes Calibration Certification
Place of Origin :
China
MOQ :
1
Price :
Negotaible
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
200
Delivery Time :
5-8 work days
Packaging Details :
wooden package
Power Supply :
AC 220V ±10%, 50 Hz
Dimensions :
700 × 600 × 830 mm
Motor Power :
250 W
Maximum Test Force :
1500 N
Working Pressure :
0 - 0.70 MPa
Warranty :
1 Year
Description

LRYJ-II Swing Testing Machine Toilet Seat Durability Tester

1.Description:

The LRYJ-II type swaying testing machine (hereinafter referred to as the "testing machine") uses compressed air to drive the piston of the cylinder to load the toilet seat ring from left to right, in order to test the fatigue strength of the hinge of the toilet seat ring and the requirements of using a reducer to drive the opening and closing device to meet the requirements of the sample opening and closing test to detect whether the buffer pad of the toilet seat ring and the cover has cracks, damages and falls off. The main machine complies with the requirements of GB6952-2005 "Sanitary Ceramics" and JC/T 764-2001 "Plastic Toilet Seat Rings and Covers" for testing equipment. This machine has the advantages of simple operation, stable loading, high measurement accuracy, and intuitive reading. It is a relatively advanced detection method for studying the strength of related materials.

2.Technical Parameter

Parameter Specification
Maximum Test Force 1500 N
Working Pressure 0 - 0.70 MPa (Adjustable)
Rubber Rotor Diameter Ø76 mm
Cylinder Bore Diameter Ø50 mm
Motor Power 250 W (Brushless DC Motor)*
Power Supply AC 220V ±10%, 50 Hz
Dimensions (L×W×H) 700 × 600 × 830 mm
