ISO 10545-5 Chromium Steel Ceramic Brick Impact Tester Impact Resistance Test Equipment
ISO 10545-5 Chromium Steel Ceramic Brick Impact Tester Impact Resistance Test Equipment
ISO 10545-5 Chromium Steel Ceramic Brick Impact Tester Impact Resistance Test Equipment
ISO 10545-5 Chromium Steel Ceramic Brick Impact Tester Impact Resistance Test Equipment
Specifications
Brand Name :
Lonroy
Model Number :
LRCY
Certification :
Includes Calibration Certification
Place of Origin :
China
MOQ :
1
Price :
Negotaible
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
200
Delivery Time :
5-8 work days
Packaging Details :
wooden package
Fixed Falling Height :
1m
Diameter :
(19 ± 0.05) mm
Material :
Chromium steel
Warranty :
1 Year
Description

TCY ISO 10545 Ceramic Brick Lmpact Tester Impact Resistance Test Equipment

1.Description:

The TCY type ceramic tile impact resistance tester measures the impact resistance of ceramic tiles by dropping a steel ball from a fixed height onto the sample and measuring the rebound height. This method determines the recovery coefficient, and through the measurement of the recovery coefficient, various tiles' impact resistance can be determined, meeting the requirements of national standard GB/T 3010.5-2016 and ISO 10545-5:1996 "Ceramic Tiles - Determining the Impact Resistance of Tiles Using the Recovery Coefficient".
2.Equipment Structure:

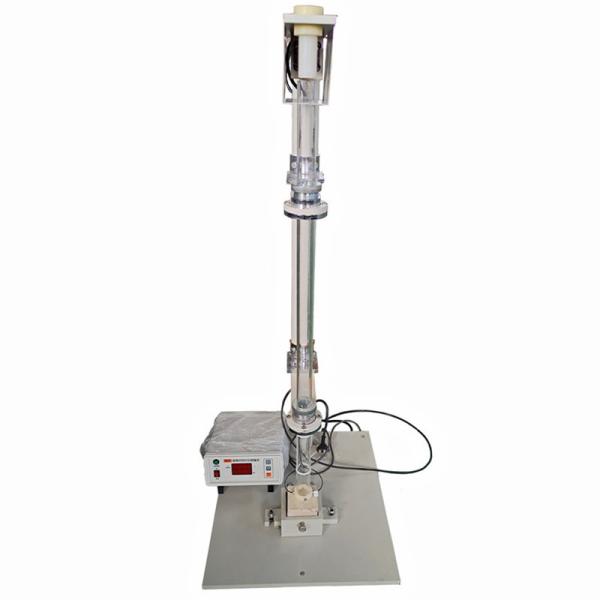

The instrument consists of a steel base with a horizontal adjustment knob, a vertical steel frame with an electromagnet suspended from it, a tube, and a support for the test components.
The test component was firmly fixed in such a way that the falling steel ball would precisely collide with the center of the horizontal tile surface. The distance between the bottom of the tube and the lower end face should be less than 9 mm.
The electronic timer measures the time of the first and second collisions of the steel ball with the sample using sensors. The time interval T can be directly read from the timer.

3.Technical Parameter

Parameter Specification
Fixed Falling Height 1 m
Steel Ball Specifications Diameter: (19 ± 0.05) mm
Material: Chromium steel
Time Measurement Precision Millisecond-level
