Ceramic Tester Clayware Permeability Tester Permeability Analyzer
Ceramic Tester Clayware Permeability Tester Permeability Analyzer
Ceramic Tester Clayware Permeability Tester Permeability Analyzer
Ceramic Tester Clayware Permeability Tester Permeability Analyzer
Specifications
Brand Name :
Lonroy
Model Number :
LRSY-II
Certification :
Includes Calibration Certification
Place of Origin :
China
MOQ :
1
Price :
Negotaible
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
200
Delivery Time :
5-8 work days
Packaging Details :
wooden package
Power Supply :
220 V, 50 Hz
Silicone Ring Dimensions :
Ø50× Ø35× 3 mm/Ø25× Ø15× 3 mm
Sample Holder Diameter :
Ø50 mm or Ø25 mm
Water Outlet Diameter :
Ø5 mm
Test Pressure :
0-1.0 MPa
Warranty :
1 Year
Description

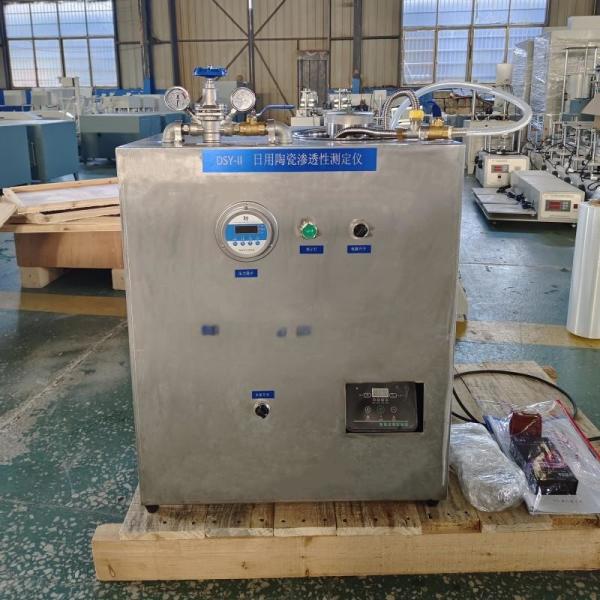

Ceramic Permeability Tester Clayware Permeability Analyzer

1.Description:

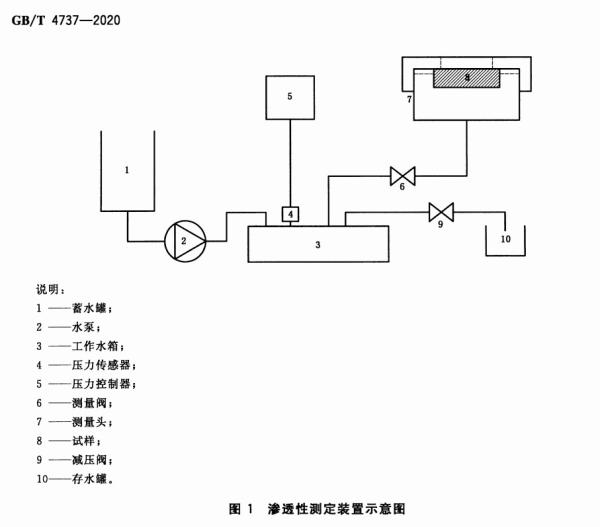

The DSY-II Daily Ceramic Permeability Tester complies with the requirements of Clause 5.4 in the "Permeability Test Method for Daily Ceramic Products" (GB/T 4737-2020), and is applicable for the permeability tests of daily ceramic products and other types of ceramic products.
2.Working Equipment
Permeability is characterized by the initial time it takes for the sample to allow water to pass through under water pressure.

3.Technical Parameter

Parameter Specification
Test Pressure 0-1.0 MPa (adjustable)
Water Outlet Diameter Ø5 mm
Sample Holder Diameter Ø50 mm or Ø25 mm
(for cylindrical/flat samples)
Silicone Ring Dimensions • Ø50 mm × Ø35 mm × 3 mm
• Ø25 mm × Ø15 mm × 3 mm
Measurement Accuracy ±1%
Power Supply 220 V, 50 Hz
