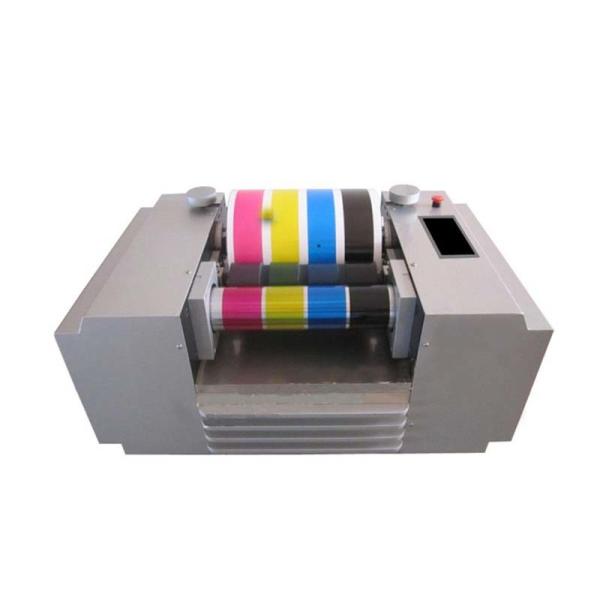

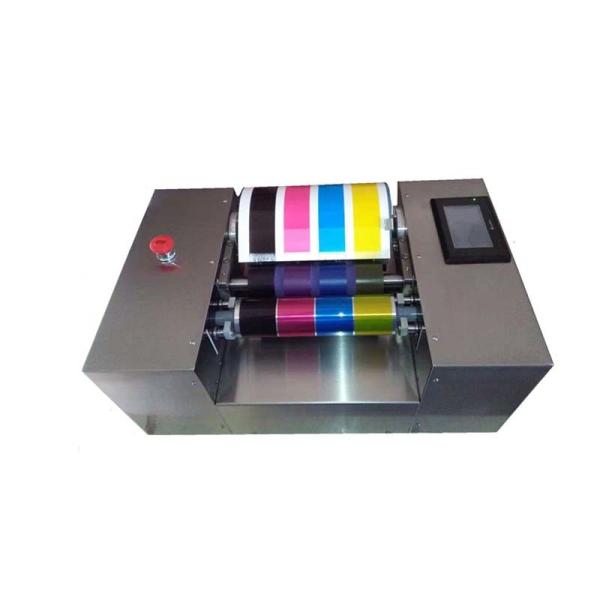

ISO 3782 Offset Printing ink Proofer 4PCS-Primary Colors

1. Character
1. Automatic ink leveling, stable operation, precision processing
2. Uniform inking time with programmable speed
3. Adjustable print pressure and speed, 3 speeds: low, medium and high.
4. Uniform ink speed: low, medium, high, 3 gears setting, each time can be proofing 4 colors
5. Suitable for offset ink spot color proofing, 4 primary color zones, 4 light color zones, easy to compare colors, easy to use.
7. Measure color using spectrophotometry to check ink color phase, dryness, wetness, gloss, and Lab value.

2. Specification

Offset printing ink printer
1. Working conditions
1.1 operating environment, voltage, humidity and other technical requirements of the equipment
Under normal temperature working environment, the voltage is not higher than 220v.
2. Technical requirements and configuration
2.1 main functions
Inks are embossed onto paper substrates according to certain technical requirements to test the printing effect of inks under different conditions. Printing color bars (e.g. gloss, color density, colorimetric data LAB/CH value, contrast, etc.) can be tested to identify the printing adaptability of the ink, the color difference of spot or four-color inks, etc.
2.2 technical indicators:
Process
2.2.1 rubber roll material
Material can be used for ordinary offset printing ink and vegetable oil base ink
2.2.2 printing speed
The printing speed range is: high speed: 20 r/min, medium speed: 15r/min, low speed: 10r/min.
2.2.3 color bar size
Application size: 45X225mm
2.2.4 specification of embossed paper
It is best to print paper with thickness of 0~2.50 mm and plastic film with thickness of 1mm
2.2.5 steel roll speed
Cleaning: 100 RPM ~800 RPM;
Uniform ink: 100 RPM ~1000 RPM
The steady ink velocity: high speed: 1000r /min, medium speed: 800r/min, low speed: 650r/min.
2.3 configuration
In addition to the standard configuration, also need to match the corresponding computer and special cleaning agent
2.4 consumables
Paper, ink, plastic film
Ink Injector
Use: Printing ink injector , can accurate measurement ink quantity.
External Size:(diameter) 12X( length)10mm Within the body empty
Minimum rated unit:(one round)0-50mm: 0.06g, 10mm: 0.012g, 1mm:0.0012g
Note: Place the ink in the chest of the ink injector and drain the air out of the ink.
