RCA Paper Abrasion Wear Tester Mobile Phones PDA Surface Coating Wear Test Machine
RCA Paper Abrasion Wear Tester Mobile Phones PDA Surface Coating Wear Test Machine
RCA Paper Abrasion Wear Tester Mobile Phones PDA Surface Coating Wear Test Machine
RCA Paper Abrasion Wear Tester Mobile Phones PDA Surface Coating Wear Test Machine
Specifications
Brand Name :
Lonroy
Model Number :
BGD 530
Certification :
Includes Calibration Certification
Place of Origin :
China
MOQ :
1
Price :
Negotaible
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
200
Delivery Time :
5-8 work days
Packaging Details :
wooden package
Overall Size :
800mm×300mm×380mm
Net Weight :
12KG
Power :
220V,50Hz
Weights :
55g,175g,275g
Warranty :
1 Year
Description

BGD 530 R.C.A Paper Abrasion Wear Testers Mobile Phones PDA Surface Coating Wear Test Machine

1.Description:

The R.C.A Paper Abrasion Wear Tester uses a dedicated test paper tape as the friction medium.A fixed load is applied to the friction head. The friction head drives the paper tape through a fixed-diameter roller and a constant-speed motor to continuously apply force to the surface of the sample until the surface substrate is seen or a specific degree of wear is reached. The wear resistance of the sample is evaluated by the number of motor rotations displayed on the counter. This testing method is widely regarded in the industry as the one that can most truly reflect the wear resistance of coatings or ink layers that come into direct contact with human fingers.

This machine complies with the ASTM F 2357-04 standard and is suitable for testing the wear resistance of surface coatings such as electroplating, baking varnish, silk-screen printing and pad printing on the surfaces of mobile phones, electronic products, automobiles, machinery and plastic products. It has now become the most widely used instrument for testing the surface wear resistance of various plastic coated and plated products.

2.Technical Parameter

Weights 55g,175g,275g
Counter Rotary counter
Paper moving speed 2670mm/min.(157mm for one cycle)
Rotating Speed (17±2)cycles/min.
Power 220V,50Hz
Overall Size 800mm×300mm×380mm(L×W×H)
Net Weight 12 KG

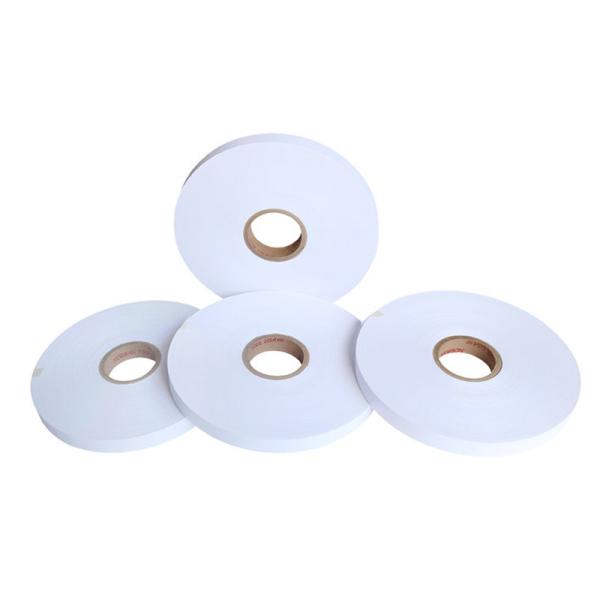

RCA Paper 17.46mm width,the total length is 250m for one roll (1800 cycles)
