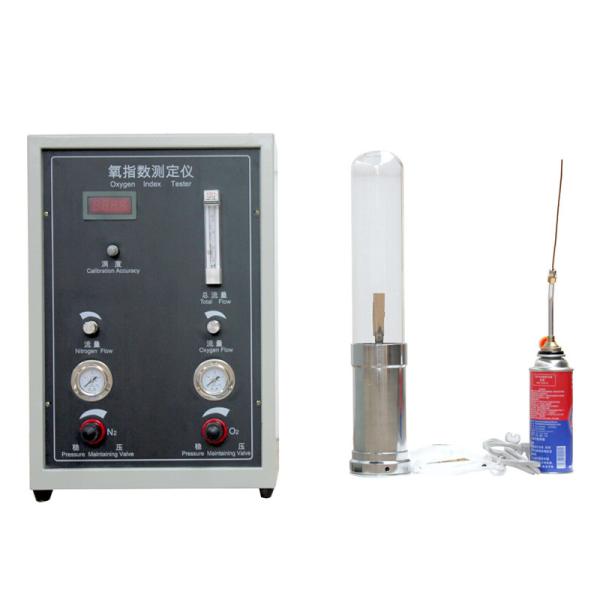

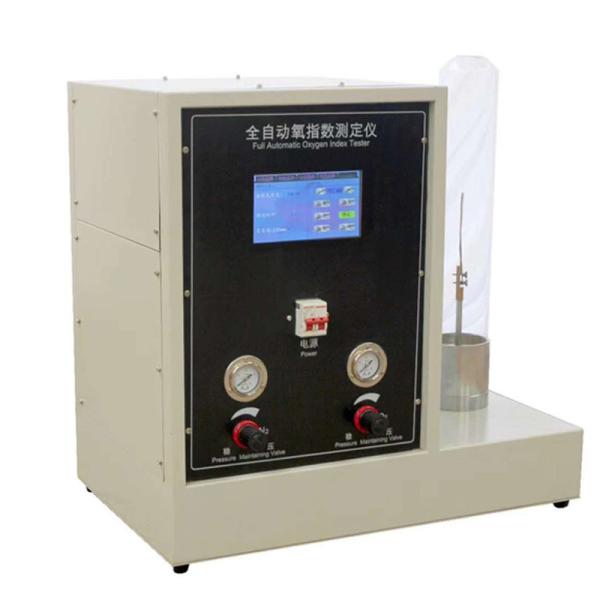

Burning Performance Plastic Test Machine 0.1 MPa - 0.3 MPa Digital Oxygen Index Tester
Burning Performance Plastic Test Machine 0.1 MPa - 0.3 MPa Digital Oxygen Index Tester
Burning Performance Plastic Test Machine 0.1 MPa - 0.3 MPa Digital Oxygen Index Tester
Burning Performance Plastic Test Machine 0.1 MPa - 0.3 MPa Digital Oxygen Index Tester
Burning Performance Plastic Test Machine 0.1 MPa - 0.3 MPa Digital Oxygen Index Tester
Burning Performance Plastic Test Machine 0.1 MPa - 0.3 MPa Digital Oxygen Index Tester
Specifications
Model Number :
LR-A029
working power supply :
AC220v;50 hz.50 w
instrument size :
620 mm * 320 mm * 530 mm
display precision :
0.1%
working pressure :
0.1 MPa to 0.3 MPa
Description

ISO4589 Digital Oxygen Index Tester Suitable for Burning Performance Test

1. Use

Mainly used for evaluation of the combustion performance of the polymer under specified

test conditions, the determination of polymer just maintain minimum volume percentage of

oxygen concentrations of combustion.Suitable for polyurethane materials, flame retardant

wood, plastic, rubber, fiber, plastic foam, heat preservation material, film, artificial leather and

film, and the combustion performance of textile materials such as determination.And can be

used in building materials B1, B2 level performance measurement.

2. Instrument characteristics

1, high precision Britain imported special oxygen sensor provides the oxygen

concentration;

2, digital display table shows oxygen concentration directly;

3, special manual ignition safe and reliable;

4, since tide sample clip (plastic) and the claims to sample clip (textile) a;

5, using the automatic calibration standard air oxygen density.

3. Technical Specification

the combustion tube specifications

heat resistant quartz glass, the inner diameter of 95 mm,

total height is 450 mm

oxygen concentration adjustment range

0 ~ 100%

display precision

0.1%

response time

< 5 s

working pressure

0.1 MPa to 0.3 MPa

gas

industrial oxygen and nitrogen (customer since the match)

working power supply

AC220v;50 hz.50 w

instrument size

620 mm * 320 mm * 530 mm

4. Standard

GB/T5454-1997 "determination of combustion performance of textile - oxygen index method,

GB/T2406.2-2009 plastic with oxygen index method to determine the behavior at room

temperature combustion test"

GB/T 10707-10707 "determination of the combustion performance of rubber oxygen index

method,

GB/T 8924-8924 "fiber reinforced plastics combustion performance test method of oxygen

index method,
