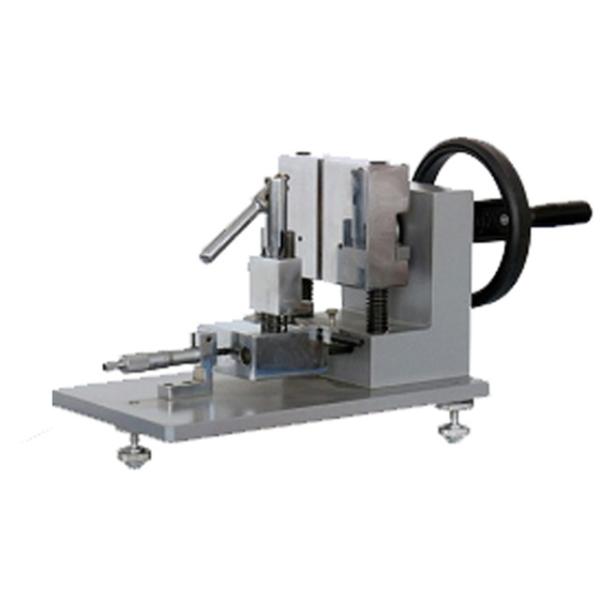

ISO180 Notch Sample Machine Nonmetal Material Impact Test Machine
ISO180 Notch Sample Machine Nonmetal Material Impact Test Machine
Specifications
Model Number :
LR-A008
Place of Origin :
China
Brand Name :
Lonroy
MOQ :
1
Price :
USD1000-3000
Packaging Details :
Wooden Package
Delivery Time :
5-8 work days
Supply Ability :
200 pieces
Certification :
CE ISO ASTM
Payment Terms :
L/C D/A D/P T/T Western Union
Control Mode :
Computer control
Power Supply :
AC220V 50Hz
Entering stroke :
10mm
Knife stroke :
24mm
Knife-entering max speed :
4mm/min
Description

ISO180 Notch Sample Machine Use for Nonmetal Material Impact Test

  1. Uses

Manual Notch Sampling Machine is a sample cutting machine when doing nonmetal material impact test by IZOD tester.This machine is used in scientific research, universities and colleges and nonmetal material factory.This machine is designed by ISO179-1993.ISO180-1993 and GB/T1043-93,GB/T1843-1996.

2.Specifications

Knife stroke

24mm

Knife-entering max speed

4mm/min

Sample mode

1 mode,2 mode,3 mode

Notch mode

A mode,B mode,C mode

Knife specification

A mode knife:45±1 angle, r=0.25±0.025

B mode knife:45±1 angle, r=1.0±0.025

C1 mode knife:45±1 angle, r=0.1±0.02

C2 mode knife:thickness 1=2±0.1 r≤0.1

C3 mode knife:thickness 2=0.8±0.1, r=0.2±0.05

Entering amount

0.5mm/stroke r=0.2±0.05

Entering stroke

10mm
