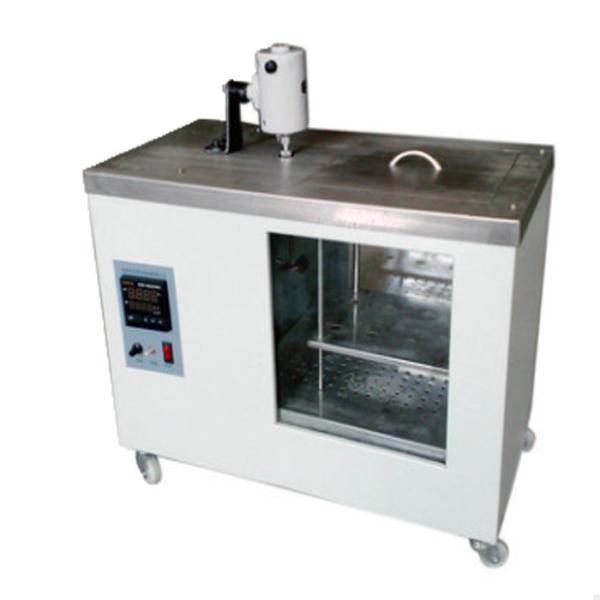

Environmental Stress Cracking Tester ESCR Rubber Plastic Stress Cracking Tester
Environmental Stress Cracking Tester ESCR Rubber Plastic Stress Cracking Tester
Environmental Stress Cracking Tester ESCR Rubber Plastic Stress Cracking Tester
Environmental Stress Cracking Tester ESCR Rubber Plastic Stress Cracking Tester
Environmental Stress Cracking Tester ESCR Rubber Plastic Stress Cracking Tester
Environmental Stress Cracking Tester ESCR Rubber Plastic Stress Cracking Tester
Specifications
Model Number :
LR-A28
Power supply :
220V 50Hz
Heating power :
3KW
Tank size :
420*305*375mm (length * width * height)
Overall dimension  :
605*330*610mm (length * width * height)
Adjustable temperature range :
room temperature -100℃
Description

ASTM D1693 Environmental Stress Cracking Tester ESCR Rubber Plastic Stress Cracking Tester

1. Overview

Environmental stress cracking tester is mainly used to measure the stress cracking capacity of ethylene - based resins and plastics.

2.Applicable Standards

GB/T1842, GB/T2951.41, ASTM D1693

Instrument Features

1. The shell of this product is made of high-quality cold-rolled plate with plastic-sprayed surface.

2. The inner tank, upper cover and test-tube stand are made of 304 stainless steel, which are resistant to corrosion and durable.

3. Sample retainer brass material, machined slotted (non-stainless steel plate bending).

4, PID special temperature control instrument table, accurate temperature control, stable performance, easy to operate.

Technical Parameters

Adjustable temperature range

 room temperature -100℃
Temperature control accuracy ±0.5℃
Blade length 19mm
Blade height 3mm
Blade thickness 0.24mm
Notch depth 0.3-0.65mm
Sample specifications length
Specimen retainer width 12±0.05mm, 11.75±0.05mm (optional)
Tank size 420*305*375mm (length * width * height)
Overall dimension 605*330*610mm (length * width * height)
thermal medium pure water
Ambient temperature 10-40℃)
Power supply 220V 50Hz
Heating power 3KW

Configuration List

Serial Number

Name

Units

Quantity

Remark

1

Thermostatic Bath

PCS

1

2

Test Tube Stand

PCS

1

8 station, expandable

3

Nick Device

PCS

1

4

Test Tube

PCS

3

5

Cutting Tool For Processing Sample

PCS

1

38* 13mm

6

Sample Retainer

PCS

3

1. There are two options for the width of the inner slot: 12+ -- 0.05mm;11.75 + 0.05 mm

2. A maximum of 10 samples can be placed in each sample cage

7

Sample Bending Device

PCS

1

8

Sample Transfer Tool

PCS

1

9

Blade

PCS

3

10

Specification

PCS

1

11

Packing List

PCS

1

12

Certificate

PCS

1
