Precision Rubber Plastic Test Machine Constant Temperature Tank ISO 1817 ASTM-D471
Precision Rubber Plastic Test Machine Constant Temperature Tank ISO 1817 ASTM-D471
Precision Rubber Plastic Test Machine Constant Temperature Tank ISO 1817 ASTM-D471
Precision Rubber Plastic Test Machine Constant Temperature Tank ISO 1817 ASTM-D471
Precision Rubber Plastic Test Machine Constant Temperature Tank ISO 1817 ASTM-D471
Precision Rubber Plastic Test Machine Constant Temperature Tank ISO 1817 ASTM-D471
Specifications
Model Number :
LR-A045
power rate :
1500W
volume :
690*500*380mm
Weight   :
28kg
Power supply :
AC220V,12A
 Water outlet :
stainless steel faucet
Description

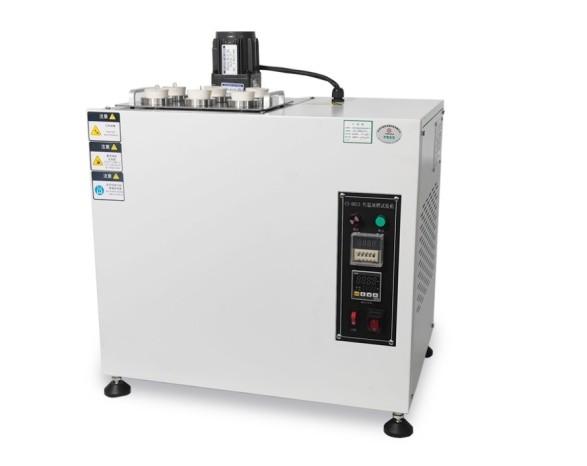

ASTM-D471 Constant Temperature Tank Testing Machine for Rubber

1. Introduction of the instrument

This machine is manufactured according to ASTM-D471 standard test method of rubber properties, which is specially designed to test the properties of various materials before and after soaking in test liquid.

2. Main functions

Constant temperature oil tank testing machine is used to test the oil resistance of various materials and the length change rate of rubber sole materials, PE and PVC plastic pipes under hot temperature.

Reference standard:

UL 1581, ISO 1817, ASTM D471, GB/1690, CNS3562 and other standards.

Instrument Characteristics

Body surface treatment: The United States DuPont powder, electrostatic spray painting process, high temperature 200℃ curing to ensure that the color will not fade.

Precision drive motor, smooth operation, low noise;

with counting and timing stop function, set the test value can automatically stop the test;

The mechanical parts are composed of stainless steel material;

One-button automatic test, easy to operate;

digital display intelligent temperature control, 1000 points temperature control data record, temperature memory function;

all steel rusty steel test cup with soft rubber sealing plug;

Technical specifications

temperature

room temperature -300℃

Test cup

6

timer

0-9999

Water outlet

stainless steel faucet

Inner diameter

38mm, depth: 300mm

heating method

electric heat pipe heating

test cup material

stainless steel tube

temperature fluctuation

≤±0.01℃

temperature uniformity

≤0.02℃

power rate

1500W

volume

690*500*380mm

Weight

28kg

Power supply

AC220V,12A

Iii. Random configuration

1. One machine

2. One power cable

3. 1 copy of manual

4. One delivery note

5. One copy of packing list
