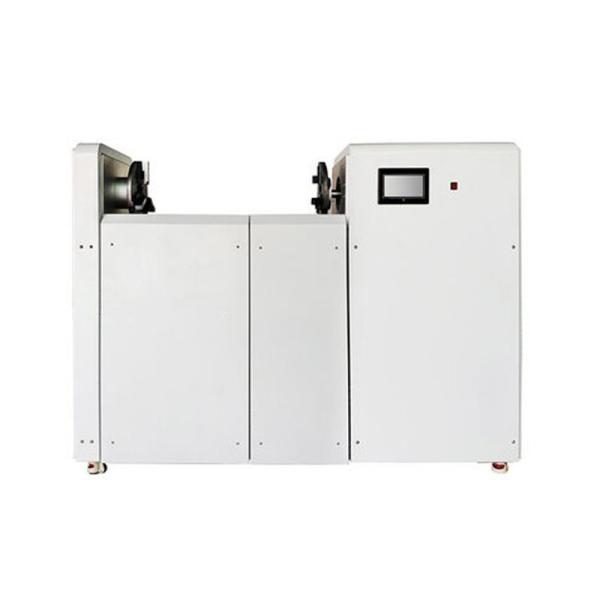

Solar Panel Conduit Bending Testing Machine Wire Tube Bending Test Machine IEC 61730
Solar Panel Conduit Bending Testing Machine Wire Tube Bending Test Machine IEC 61730
Specifications
Brand Name :
LONROY
Model Number :
LR-8S
Certification :
CE ISO ASTM
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
200 pieces
Delivery Time :
5-8 work days
Packaging Details :
wooden pakage
warranty :
1 year
power :
220v 50hz
Description

IEC 61730 Wire tube bending test machine Solar Panel Tester Conduit Bending Testing Machine
1. Product Introduction
Purpose of the wire tube bending test machine: The photovoltaic module wire tube bending test machine uses a certain weight to apply to the wire tube, and then rotates the wire tube at a certain speed to judge the bending and twisting resistance of the photovoltaic module wire tube.

2. Applicable standards for wire tube bending test machine: IEC61730-2: 2004 standard requirements

Controller setting frequency range 0~120 Hz
When the setting frequency 60 Hz, the spindle speed is 1 rev./min
Spindle speed N rev./min = frequency Hz / 60
Timing range 1~9999 seconds
The power supply
 single-phase AC220V, and the power consumption is 100W

Table of weights applicable to the outer diameter of the wire tube

Wire tube outer diameter (mm) Applicable counterweight (N)
13 - 25 220
26 - 50 330
51 -100 490
