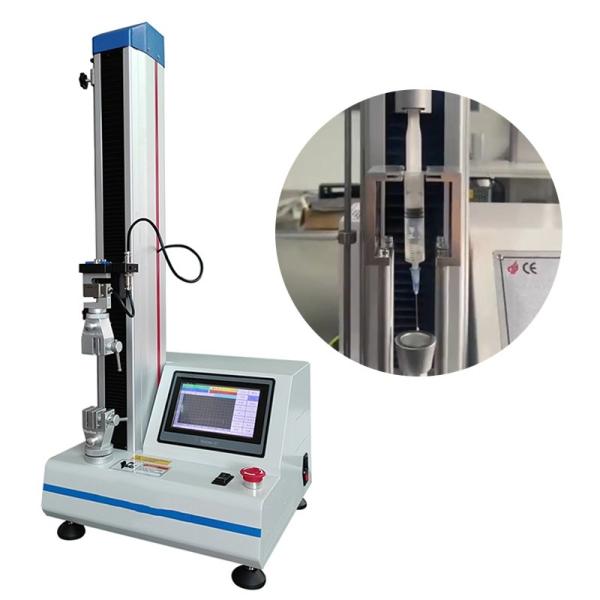

ISO 11608 Syringe Push Out Force Test Machine 100W With Special Fixtures
ISO 11608 Syringe Push Out Force Test Machine 100W With Special Fixtures
Specifications
Brand Name :
LONROY
Model Number :
P-U90
Certification :
CE ISO ASTM
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
200 pieces
Delivery Time :
5-8 work days
Packaging Details :
wooden pakage
Power supply :
220V 50~60HZ
Machine size :
40×37×95cm (width×depth×height)
Power :
100W
Machine net weight :
28KG
Description

ISO 11608 Syringe Push-out Force Test Machine
1. Introduction
The pushout force testing machine is equipped with professional special fixtures, which can complete different tests of syringes. Through the detection, it can effectively monitor whether the quality of syringes meets the requirements, and provide the corresponding detection basis for improving and optimizing the production process.
Purpose: This machine is suitable for force testing of various syringes. The instrument can be used to test the extraction force strength, compression force, extraction force and puncture force of the syringe with the extraction force jig, extraction force jig and puncture clamp
2. Product Paramter
Compliant standards: ISO 11608-3-2022

Item P-U90
Capacity (MAX) 1KN (force sensor in the range of 10N~1KN is optional)
Control method Fully computer controlled, powerful software
Force unit N, kN, gf, kgf, lbf, kP, tf(SI), tf(long), etc.
Length unit mm, cm, Inch, m, km, um, etc.
Force resolution 1/500,000
Accuracy ±0.1%
Stroke resolution 1/500,000mm
Accuracy ±0.1%
Effective stroke 450mm; (customizable)
Speed range 0.01~500mm/min; (customizable)
Test space Diameter Φ115mm
Stop mode

Overload stop, emergency stop button,

automatic stop when specimen is damaged,

automatic stop when upper and lower limit settings are set;
Machine power Servo motor drive
Machine size 40×37×95cm (width×depth×height)
Machine net weight 28KG
Power 100W
Power supply 220V 50~60HZ
Machine equipment 1 USB communication cable, 1 software
Optional accessories Push-out force fixture, etc.; (different fixtures can be purchased according to different test standards)
